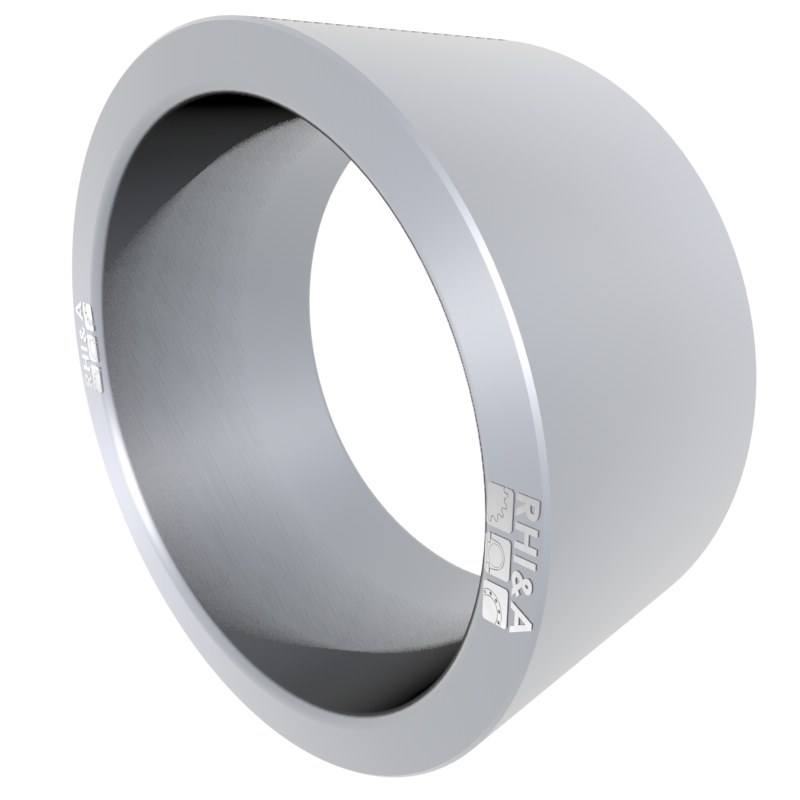

Inner ring IR - DIN 620
Description Main dimensions Functions d F B mm mm mm SKU Description Main dimensions Functions d F B mm mm mm 10064369 IR5X8X12 5.00 8.00 12.00 10064370 IR5X8X16 5.00 8.00 16.00 10064382 IR6X9X12 6.00 9.00 12.00 10064383 IR6X9X16 6.00 9.00 16.00 10064392 IR7X10X10,5 7.00 10.00 10.50 10064393 IR7X10X12 7.00 10.00 12.00 10064394 IR7X10X16 7.00 10.00 16.00 10064403 IR8X12X10,5 8.00 12.00 10.50 10064405 IR8X12X12,5 8.00 12.00 12.50 10064415 IR9X12X12 9.00 12.00 12.00 10064416 IR9X12X16 9.00 12.00 16.00 10064231 IR10X14X16 10.00 14.00 16.00 10064232 IR10X14X20 10.00 14.00 20.00 10146521 IR10X13X12,5 10.00 13.00 12.50 10147530 IR10X14X13 10.00 14.00 13.00 10064237 IR12X15X12 12.00 15.00 12.00 10064238 IR12X15X12,5 12.00 15.00 12.50 10064239 IR12X15X16 12.00 15.00 16.00 10064240 IR12X15X16,5 12.00 15.00 16.50 10064241 IR12X15X22,5 12.00 15.00 22.50 10064243 IR12X16X13 12.00 16.00 13.00 10064244 IR12X16X16 12.00 16.00 16.00 10064245 IR12X16X20 12.00 16.00 20.00 10064246 IR12X16X22 12.00 16.00 22.00 10064251 IR14X17X17 14.00 17.00 17.00 10064253 IR15X18X16 15.00 18.00 16.00 10064254 IR15X18X16,5 15.00 18.00 16.50 10064255 IR15X19X16 15.00 19.00 16.00 10064256 IR15X19X20 15.00 19.00 20.00 10064258 IR15X20X13 15.00 20.00 13.00 10064259 IR15X20X23 15.00 20.00 23.00 10064262 IR17X20X16 17.00 20.00 16.00 10064264 IR17X20X20 17.00 20.00 20.00 10064265 IR17X20X20,5 17.00 20.00 20.50 10064266 IR17X20X30,5 17.00 20.00 30.50 10064267 IR17X21X16 17.00 21.00 16.00 10064268 IR17X21X20 17.00 21.00 20.00 10064269 IR17X22X13 17.00 22.00 13.00 10064270 IR17X22X16 17.00 22.00 16.00 10064271 IR17X22X23 17.00 22.00 23.00 10064272 IR17X24X20 17.00 24.00 20.00 10147733 IR17X20X16,5 17.00 20.00 16.50 10051832 IR20X25X38,5 20.00 25.00 38.50 10064276 IR20X24X16 20.00 24.00 16.00 10064277 IR20X24X20 20.00 24.00 20.00 10064279 IR20X25X17 20.00 25.00 17.00 10064280 IR20X25X20 20.00 25.00 20.00 10064281 IR20X25X20,5 20.00 25.00 20.50 10064282 IR20X25X26,5 20.00 25.00 26.50 10064285 IR20X28X20 20.00 28.00 20.00 10141553 IR20X25X30 20.00 25.00 30.00 10064287 IR22X26X16 22.00 26.00 16.00 10064288 IR22X26X20 22.00 26.00 20.00 10064289 IR22X28X17 22.00 28.00 17.00 10064290 IR22X28X20 22.00 28.00 20.00 10064291 IR22X28X20,5 22.00 28.00 20.50 10064292 IR22X28X30 22.00 28.00 30.00 10064294 IR25X29X20 25.00 29.00 20.00 10064295 IR25X29X30 25.00 29.00 30.00 10064297 IR25X30X17 25.00 30.00 17.00 10064298 IR25X30X20 25.00 30.00 20.00 10064299 IR25X30X20,5 25.00 30.00 20.50 10064300 IR25X30X26,5 25.00 30.00 26.50 10064301 IR25X30X30 25.00 30.00 30.00 10064302 IR25X30X32 25.00 30.00 32.00 10064303 IR25X30X38,5 25.00 30.00 38.50 10064304 IR25X32X22 25.00 32.00 22.00 10064307 IR28X32X17 28.00 32.00 17.00 10064308 IR28X32X20 28.00 32.00 20.00 10146522 IR28X32X30 28.00 32.00 30.00 10064311 IR30X35X13 30.00 35.00 13.00 10064312 IR30X35X16 30.00 35.00 16.00 10064313 IR30X35X17 30.00 35.00 17.00 10064314 IR30X35X20 30.00 35.00 20.00 10064315 IR30X35X20,5 30.00 35.00 20.50 10064316 IR30X35X26 30.00 35.00 26.00 10064317 IR30X35X30 30.00 35.00 30.00 10064318 IR30X37X18 30.00 37.00 18.00 10064319 IR30X37X22 30.00 37.00 22.00 10128215 IR30X25X17 30.00 25.00 17.00 10064322 IR32X37X20 32.00 37.00 20.00 10064323 IR32X37X30 32.00 37.00 30.00 10064324 IR32X40X20 32.00 40.00 20.00 10064325 IR32X40X36 32.00 40.00 36.00 10064326 IR33X37X13 33.00 37.00 13.00 10064328 IR35X40X17 35.00 40.00 17.00 10064329 IR35X40X20 35.00 40.00 20.00 10064330 IR35X40X20,5 35.00 40.00 20.50 10064331 IR35X40X30 35.00 40.00 30.00 10064333 IR35X42X36 35.00 42.00 36.00 10064334 IR35X43X22 35.00 43.00 22.00 10064337 IR38X43X20 38.00 43.00 20.00 10064338 IR38X43X30 38.00 43.00 30.00 10064339 IR40X45X17 40.00 45.00 17.00 10064340 IR40X45X20 40.00 45.00 20.00 10064341 IR40X45X20,5 40.00 45.00 20.50 10064343 IR40X48X22 40.00 48.00 22.00 10064344 IR40X48X40 40.00 48.00 40.00 10064346 IR40X50X22 40.00 50.00 22.00 10143893 IR40X45X30 40.00 45.00 30.00 10064347 IR42X47X20 42.00 47.00 20.00 10064348 IR42X47X30 42.00 47.00 30.00 10064349 IR45X50X25 45.00 50.00 25.00 10064350 IR45X50X25,5 45.00 50.00 25.50 10064351 IR45X50X35 45.00 50.00 35.00 10064352 IR45X52X22 45.00 52.00 22.00 10064353 IR45X52X40 45.00 52.00 40.00 10064355 IR45X55X22 45.00 55.00 22.00 10064357 IR50X55X25 50.00 55.00 25.00 10064358 IR50X55X35 50.00 55.00 35.00 10064359 IR50X58X22 50.00 58.00 22.00 10064360 IR50X58X40 50.00 58.00 40.00 10064362 IR50X60X25 50.00 60.00 25.00 10064363 IR50X60X28 50.00 60.00 28.00 10064364 IR55X60X25 55.00 60.00 25.00 10064365 IR55X60X35 55.00 60.00 35.00 10064366 IR55X63X25 55.00 63.00 25.00 10064367 IR55X63X45 55.00 63.00 45.00 10064368 IR55X65X28 55.00 65.00 28.00 10064371 IR60X68X25 60.00 68.00 25.00 10064372 IR60X68X35 60.00 68.00 35.00 10064373 IR60X68X45 60.00 68.00 45.00 10064374 IR60X70X25 60.00 70.00 25.00 10064375 IR60X70X28 60.00 70.00 28.00 10064376 IR65X72X25 65.00 72.00 25.00 10064377 IR65X72X45 65.00 72.00 45.00 10064378 IR65X73X25 65.00 73.00 25.00 10064379 IR65X73X35 65.00 73.00 35.00 10064380 IR65X75X28 65.00 75.00 28.00 10064384 IR70X80X25 70.00 80.00 25.00 10064385 IR70X80X30 70.00 80.00 30.00 10064386 IR70X80X35 70.00 80.00 35.00 10064387 IR70X80X54 70.00 80.00 54.00 10143786 IR70X80X56 70.00 80.00 56.00 10064388 IR75X85X25 75.00 85.00 25.00 10064389 IR75X85X30 75.00 85.00 30.00 10064390 IR75X85X35 75.00 85.00 35.00 10064391 IR75X85X54 75.00 85.00 54.00 10064395 IR80X90X25 80.00 90.00 25.00 10064396 IR80X90X30 80.00 90.00 30.00 10064398 IR80X90X54 80.00 90.00 54.00 10128217 IR80X90X36 80.00 90.00 36.00 10141550 IR80X90X35 80.00 90.00 35.00 10064399 IR85X100X35 85.00 100.00 35.00 10064400 IR85X100X63 85.00 100.00 63.00 10064401 IR85X95X26 85.00 95.00 26.00 10064402 IR85X95X36 85.00 95.00 36.00 10064406 IR90X100X26 90.00 100.00 26.00 10064407 IR90X100X30 90.00 100.00 30.00 10064408 IR90X100X36 90.00 100.00 36.00 10064409 IR90X105X35 90.00 105.00 35.00 10064410 IR90X105X63 90.00 105.00 63.00 10064411 IR95X105X26 95.00 105.00 26.00 10064412 IR95X105X36 95.00 105.00 36.00 10064413 IR95X110X35 95.00 110.00 35.00 10064414 IR95X110X63 95.00 110.00 63.00 10128218 IR95X100X63 95.00 100.00 63.00 10128219 IR95X85X26 95.00 85.00 26.00 10064227 IR100X115X40 100.00 115.00 40.00 10143787 IR100X110X30 100.00 110.00 30.00 10143788 IR100X110X40 100.00 110.00 40.00 10051781 IR110X120X30 110.00 120.00 30.00 10064234 IR110X125X40 110.00 125.00 40.00 10064235 IR120X130X30 120.00 130.00 30.00 10064236 IR120X135X45 120.00 135.00 45.00 10051795 IR130X145X35 130.00 145.00 35.00 10064248 IR130X150X50 130.00 150.00 50.00 10064249 IR140X155X35 140.00 155.00 35.00 10064250 IR140X160X50 140.00 160.00 50.00 10064252 IR150X165X40 150.00 165.00 40.00 10064260 IR160X175X40 160.00 175.00 40.00 10064261 IR170X185X45 170.00 185.00 45.00 10064273 IR180X195X45 180.00 195.00 45.00 10064274 IR190X210X50 190.00 210.00 50.00 10064275 IR200X220X50 200.00 220.00 50.00 10064286 IR220X240X50 220.00 240.00 50.00 10064293 IR240X265X60 240.00 265.00 60.00 10064305 IR260X285X60 260.00 285.00 60.00 10064306 IR280X305X69 280.00 305.00 69.00 10064310 IR300X330X80 300.00 330.00 80.00 10064321 IR320X350X80 320.00 350.00 80.00 10064327 IR340X370X80 340.00 370.00 80.00 10064335 IR360X390X80 360.00 390.00 80.00 10064336 IR380X415X100 380.00 415.00 100.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
IR-IS1
Inner ring IR-IS1 - DIN 620 with lubrication hole
Description Main dimensions Functions d F B mm mm mm SKU Description Main dimensions Functions d F B mm mm mm 10064381 IR6X10X10-IS1 6.00 10.00 10.00 10064404 IR8X12X10-IS1 8.00 12.00 10.00 10064229 IR10X14X12-IS1 10.00 14.00 12.00 10064242 IR12X16X12-IS1 12.00 16.00 12.00 10064257 IR15X20X12-IS1 15.00 20.00 12.00 10064278 IR20X25X16-IS1 20.00 25.00 16.00 10064296 IR25X30X16-IS1 25.00 30.00 16.00 10064320 IR30X38X20-IS1 30.00 38.00 20.00 10064332 IR35X42X20-IS1 35.00 42.00 20.00 10064345 IR40X50X20-IS1 40.00 50.00 20.00 10064354 IR45X55X20-IS1 45.00 55.00 20.00 10064356 IR50X55X20-IS1 50.00 55.00 20.00 10064361 IR50X60X20-IS1 50.00 60.00 20.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
