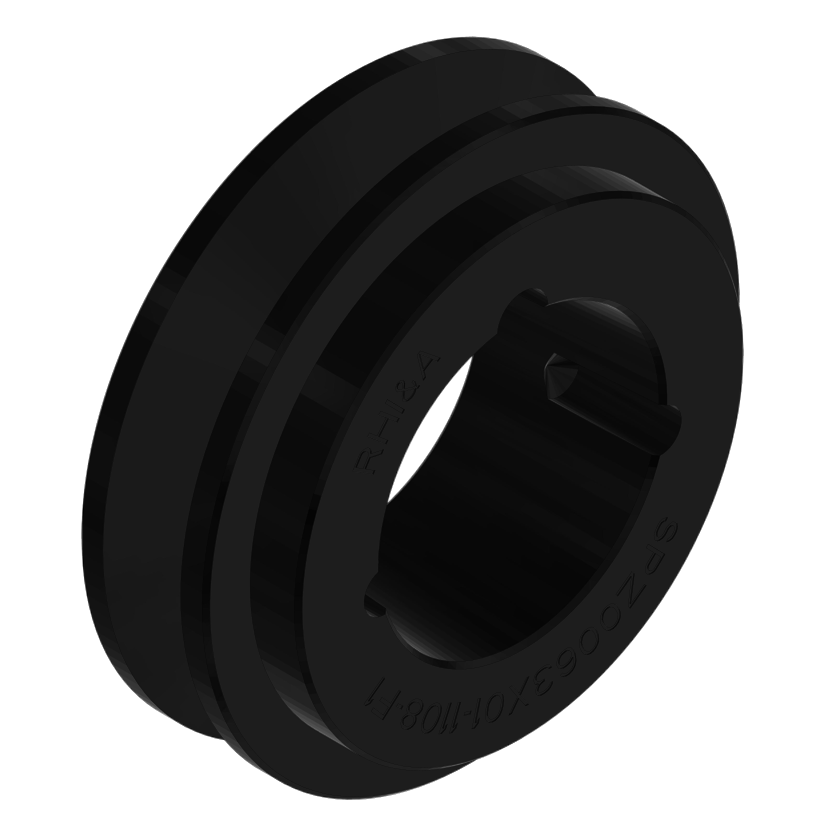

Keilriemenscheibe SPZ x 04

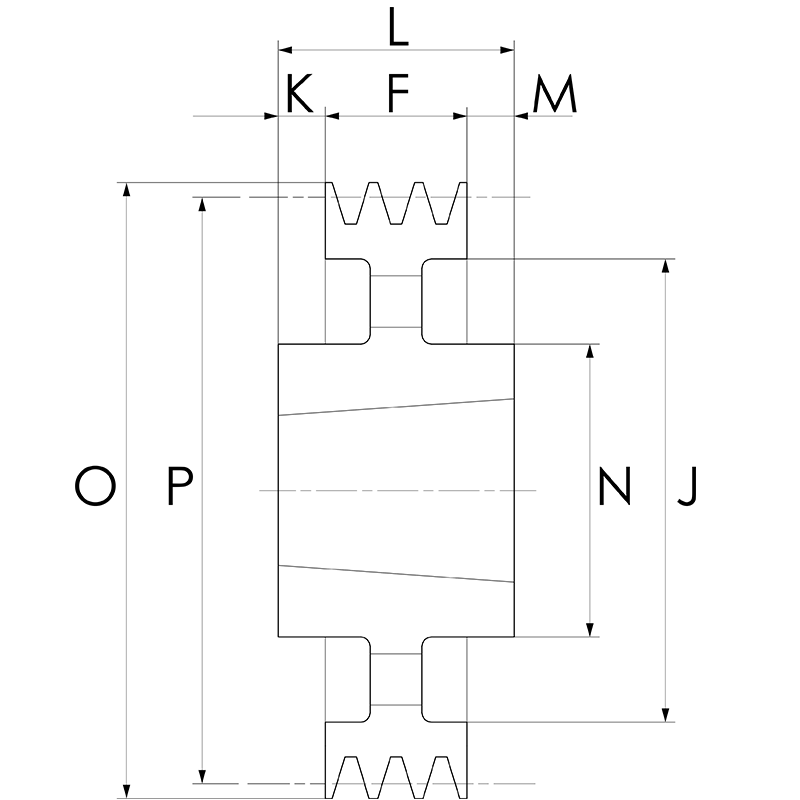

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051614 | SPZ0085x04-1610-F8 | 25,00 | 89,00 | 85,00 | |
| 10051619 | SPZ0090x04-1610-F8 | 25,00 | 94,00 | 90,00 | |
| 10051624 | SPZ0095x04-1610-F8 | 25,00 | 99,00 | 95,00 | |
| 10051629 | SPZ0100x04-1610-F8 | 25,00 | 104,00 | 100,00 | |
| 10051635 | SPZ0106x04-1610-F8 | 25,00 | 110,00 | 106,00 | |
| 10051610 | SPZ0080x04-1210-F8 | 25,00 | 84,00 | 80,00 | |
| 10051653 | SPZ0125x04-2012-F2 | 32,00 | 129,00 | 125,00 | |
| 10051665 | SPZ0140x04-2012-F2 | 32,00 | 144,00 | 140,00 | |
| 10051659 | SPZ0132x04-2012-F2 | 32,00 | 136,00 | 132,00 | |
| 10051647 | SPZ0118x04-2012-F8 | 32,00 | 122,00 | 118,00 | |
| 10051641 | SPZ0112x04-2012-F8 | 32,00 | 116,00 | 112,00 | |
| 10051686 | SPZ0170x04-2517-F2 | 45,00 | 174,00 | 170,00 | |
| 10051749 | SPZ0400x04-2517-F5 | 45,00 | 404,00 | 400,00 | |
| 10051742 | SPZ0355x04-2517-F5 | 45,00 | 359,00 | 355,00 | |
| 10051735 | SPZ0315x04-2517-F5 | 45,00 | 319,00 | 315,00 | |
| 10051728 | SPZ0280x04-2517-F6 | 45,00 | 284,00 | 280,00 | |
| 10051721 | SPZ0250x04-2517-F6 | 45,00 | 254,00 | 250,00 | |
| 10051714 | SPZ0224x04-2517-F6 | 45,00 | 228,00 | 224,00 | |
| 10051707 | SPZ0200x04-2517-F6 | 45,00 | 204,00 | 200,00 | |
| 10051700 | SPZ0190x04-2517-F3 | 45,00 | 194,00 | 190,00 | |
| 10051693 | SPZ0180x04-2517-F2 | 45,00 | 184,00 | 180,00 | |
| 10051679 | SPZ0160x04-2517-F2 | 45,00 | 164,00 | 160,00 | |
| 10051672 | SPZ0150x04-2517-F2 | 45,00 | 154,00 | 150,00 | |
| 10051756 | SPZ0450x04-3020-F5 | 51,00 | 454,00 | 450,00 | |
| 10051763 | SPZ0500x04-3020-F5 | 51,00 | 504,00 | 500,00 | |
| 10051769 | SPZ0630x04-3030-F4 | 76,00 | 634,00 | 630,00 | |
| 10141065 | SPZ0800x04-3030-F4 | 76,00 | 804,00 | 800,00 | |
