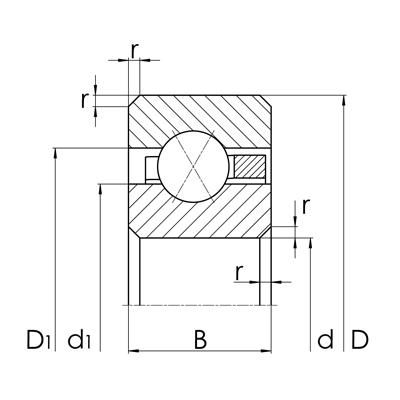

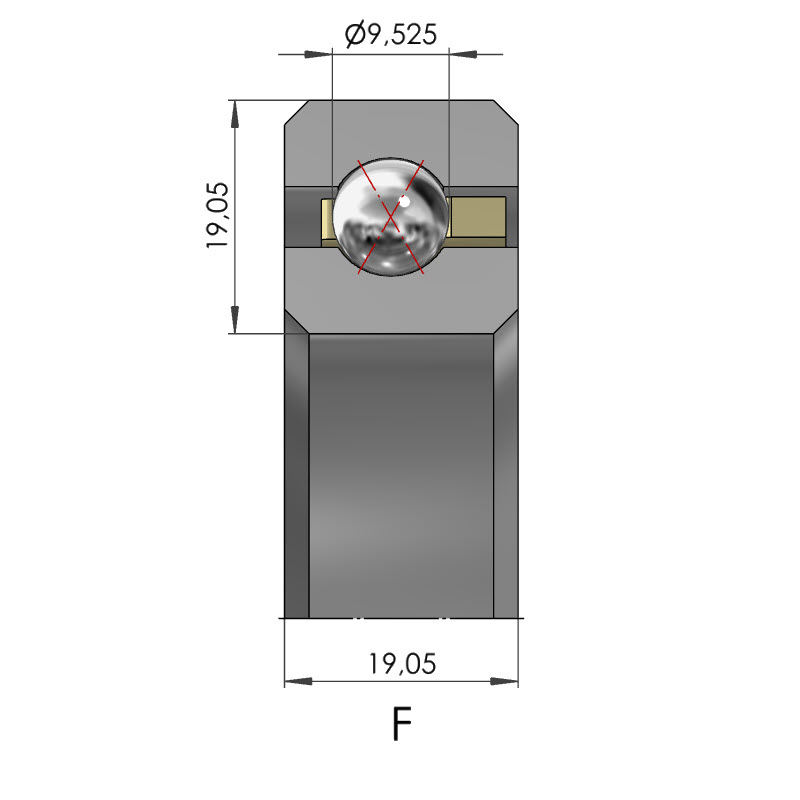

Thin section four-point bearings - CSXF
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147542 | CSXF040 | 101.60 | 139.70 | 19.05 | |
| 10157325 | CSXF042 | 107.95 | 146.05 | 19.05 | |
| 10157327 | CSXF045 | 114.30 | 152.40 | 19.05 | |
| 10157329 | CSXF047 | 120.65 | 158.75 | 19.05 | |
| 10147543 | CSXF050 | 127.00 | 165.10 | 19.05 | |
| 10147544 | CSXF055 | 139.70 | 177.80 | 19.05 | |
| 10147545 | CSXF060 | 152.40 | 190.50 | 19.05 | |
| 10157331 | CSXF065 | 165.10 | 203.20 | 19.05 | |
| 10147546 | CSXF070 | 177.80 | 215.90 | 19.05 | |
| 10147547 | CSXF075 | 190.50 | 228.60 | 19.05 | |
| 10147548 | CSXF080 | 203.20 | 241.30 | 19.05 | |
| 10147549 | CSXF090 | 228.60 | 266.70 | 19.05 | |
| 10147550 | CSXF100 | 254.00 | 292.10 | 19.05 | |
| 10147551 | CSXF110 | 279.40 | 317.50 | 19.05 | |
| 10147552 | CSXF120 | 304.80 | 342.90 | 19.05 | |
| 10147553 | CSXF140 | 355.60 | 393.70 | 19.05 | |
| 10157333 | CSXF160 | 406.40 | 444.50 | 19.05 | |
| 10157335 | CSXF180 | 457.20 | 495.30 | 19.05 | |
| 10157337 | CSXF200 | 508.00 | 546.10 | 19.05 | |
| 10157339 | CSXF250 | 635.00 | 673.10 | 19.05 | |
| 10157341 | CSXF300 | 762.00 | 800.10 | 19.05 | |
| 10157343 | CSXF350 | 889.00 | 927.10 | 19.05 | |
| 10157345 | CSXF400 | 1,016.00 | 1,054.10 | 19.05 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
