Insert bearing PE - Ring groove tolerances according to DIN 616 (Ring groove tolerances according to DIN 5417)

  • Insert bearing PE

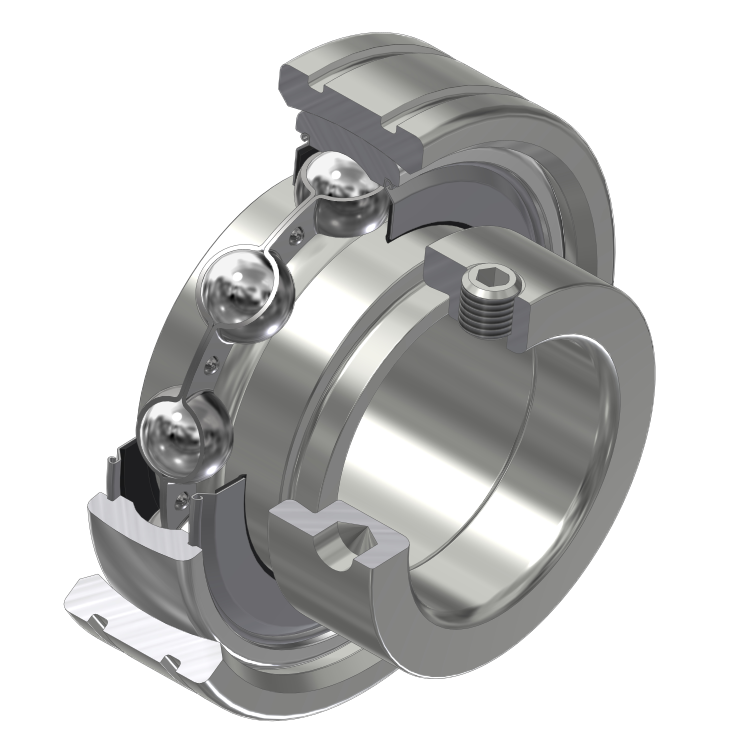

    Insert bearing PE
  • Insert bearing PE
    Insert bearing PE

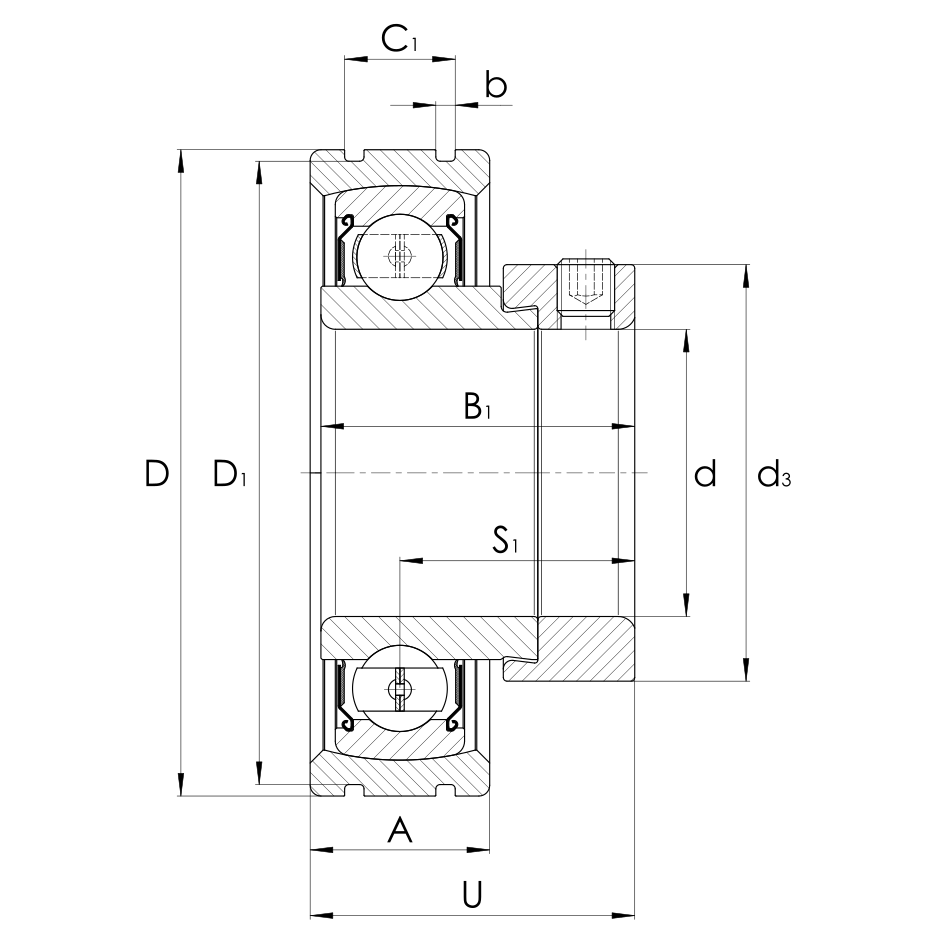

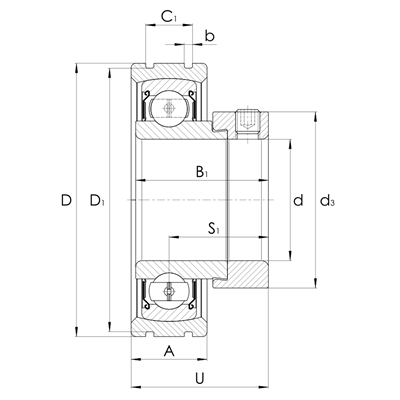

    Description Main dimensions Functions
    d D U
    mm mm mm
    SKU Description Main dimensions Functions
    d D U
    mm mm mm
    10146809 PE20 20.00 55.00 31.50
    10146810 PE25 25.00 62.00 32.00
    10146811 PE30 30.00 72.00 37.20
    10146812 PE35 35.00 80.00 40.00
    10146813 PE40 40.00 90.00 45.20
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
