C31
Toroidal roller bearing C31
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225094 C3130 150.00 250.00 80.00 10225098 C3134 170.00 280.00 88.00 10225100 C3136 180.00 300.00 96.00 10225102 C3138 190.00 320.00 104.00 10225104 C3140 200.00 340.00 112.00 10225106 C3144 220.00 370.00 120.00 10225108 C3148 240.00 400.00 128.00 10225110 C3152 260.00 440.00 144.00 10225112 C3156 280.00 460.00 146.00 10225114 C3160 300.00 500.00 160.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-K
Toroidal roller bearing C31 - with conical bore (cone 1:12)
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225095 C3130-K 150.00 250.00 80.00 10225099 C3134-K 170.00 280.00 88.00 10225101 C3136-K 180.00 300.00 96.00 10225103 C3138-K 190.00 320.00 104.00 10225105 C3140-K 200.00 340.00 112.00 10225107 C3144-K 220.00 370.00 120.00 10225109 C3148-K 240.00 400.00 128.00 10225111 C3152-K 260.00 440.00 144.00 10225113 C3156-K 280.00 460.00 146.00 10225115 C3160-K 300.00 500.00 160.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-M

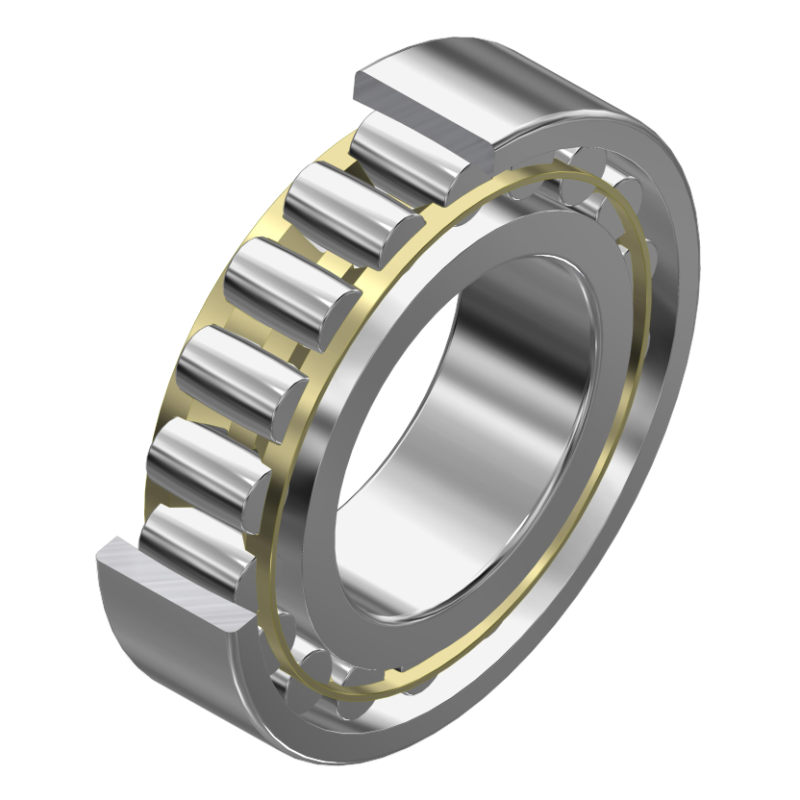

Toroidal roller bearing C31-M - Version with brass cage
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225117 C3164-M 320.00 540.00 176.00 10225119 C3168-M 340.00 580.00 190.00 10225121 C3172-M 360.00 600.00 192.00 10225123 C3176-M 380.00 620.00 194.00 10225125 C3180-M 400.00 650.00 200.00 10225127 C3184-M 420.00 700.00 224.00 10225131 C3192-M 460.00 760.00 240.00 10225079 C31/500-M 500.00 830.00 264.00 10225081 C31/530-M 530.00 870.00 272.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-K-M

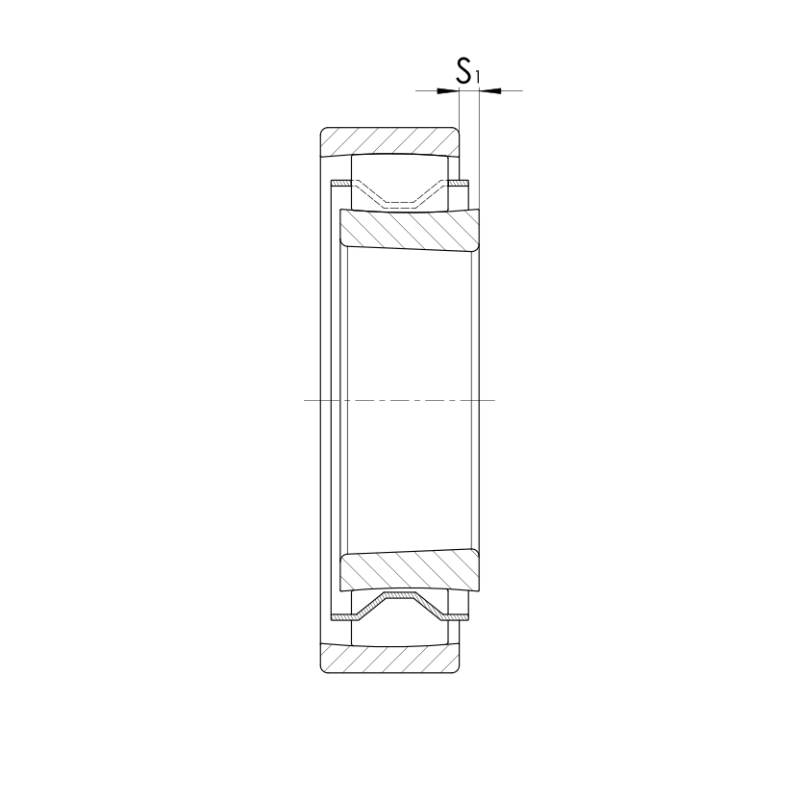

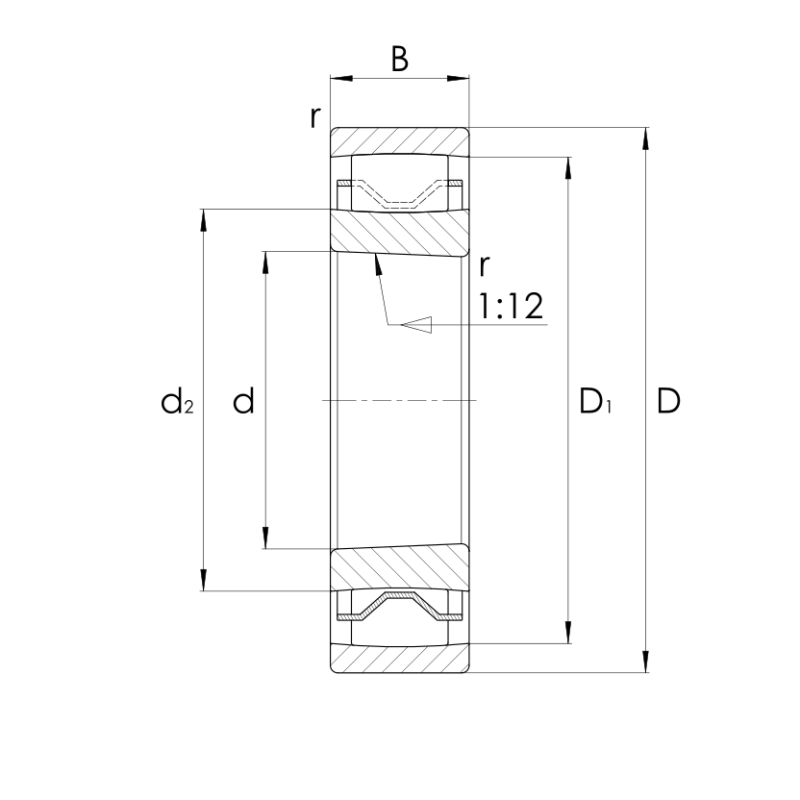

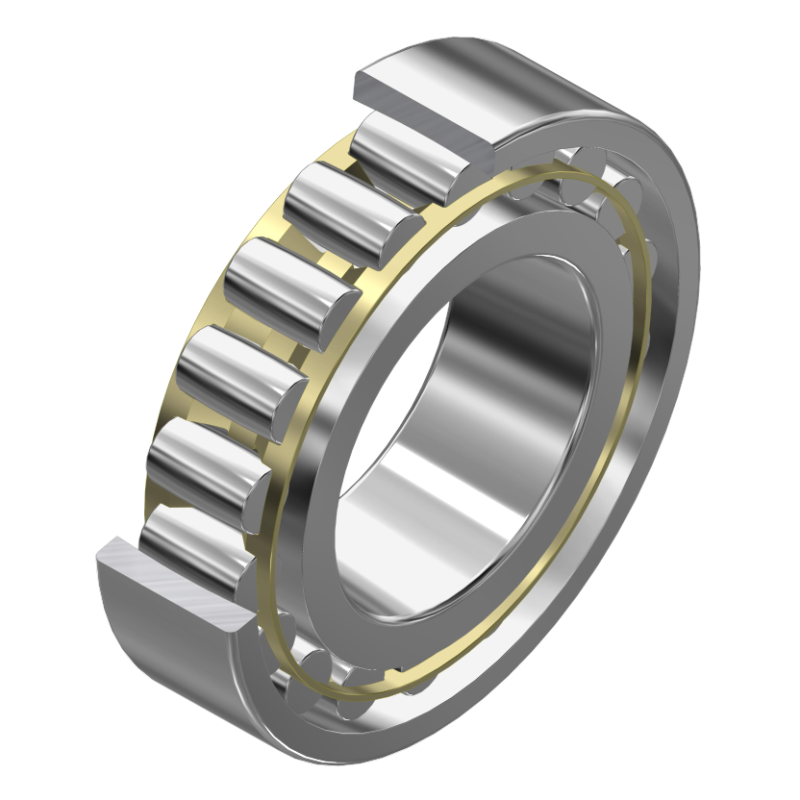

Toroidal roller bearing C31-K-M - Version with brass cage and conical bore (taper 1:12)
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225116 C3164-K-M 320.00 540.00 176.00 10225118 C3168-K-M 340.00 580.00 190.00 10225120 C3172-K-M 360.00 600.00 192.00 10225122 C3176-K-M 380.00 620.00 194.00 10225124 C3180-K-M 400.00 650.00 200.00 10225126 C3184-K-M 420.00 700.00 224.00 10225130 C3192-K-M 460.00 760.00 240.00 10225078 C31/500-K-M 500.00 830.00 264.00 10225080 C31/530-K-M 530.00 870.00 272.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-K-M1B

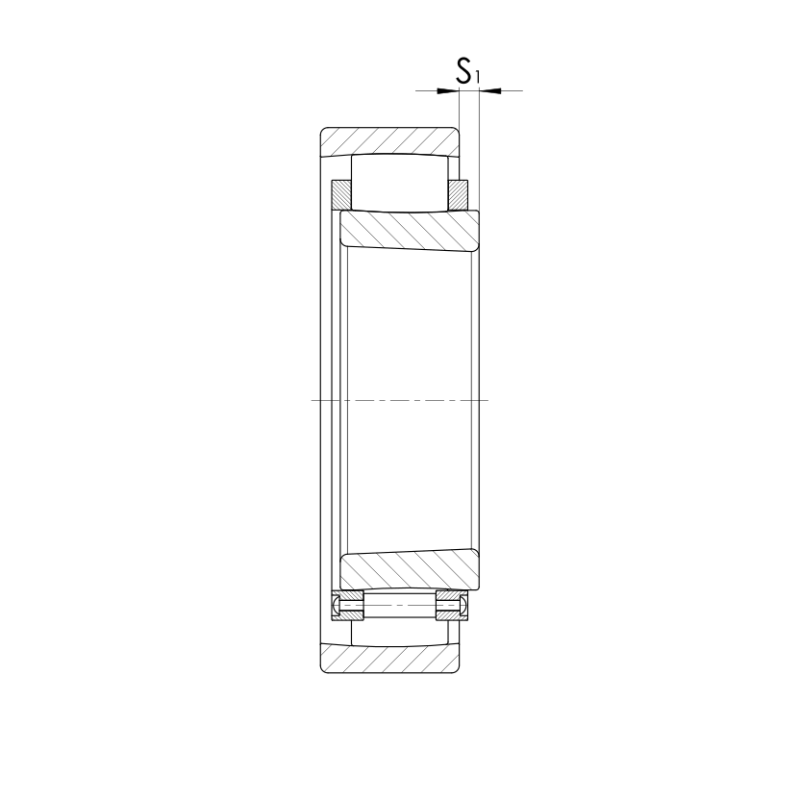

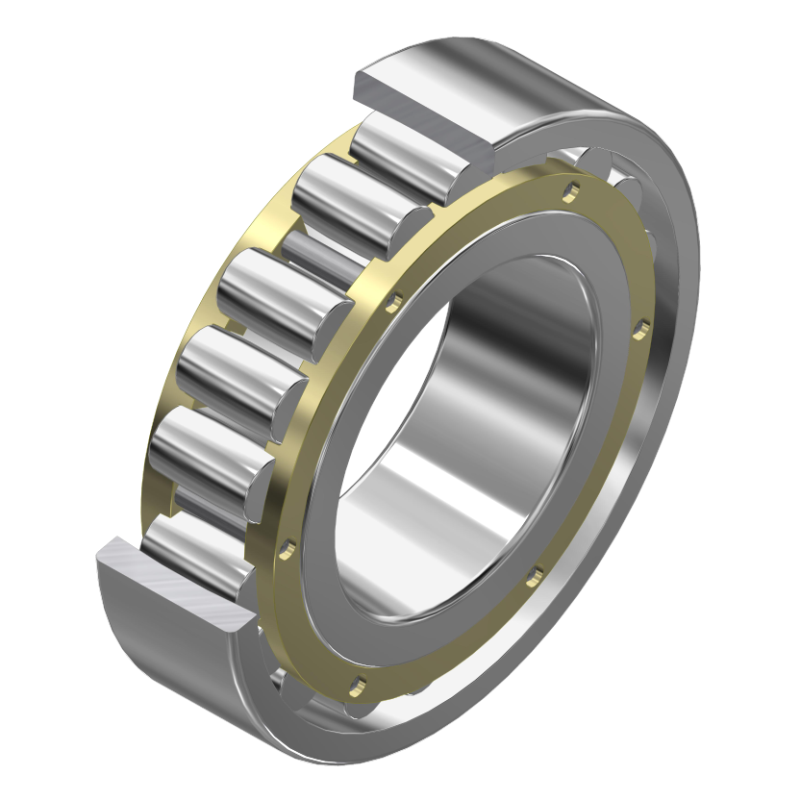

Toroidal roller bearing C31-K-M1B - split solid brass cage and conical bore (taper 1:12)
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225096 C3132-K-M1B 160.00 270.00 86.00 10225128 C3188-K-M1B 440.00 720.00 226.00 10225132 C3196-K-M1B 480.00 790.00 248.00 10225082 C31/560-K-M1B 560.00 920.00 280.00 10225084 C31/600-K-M1B 600.00 980.00 300.00 10225086 C31/630-K-M1B 630.00 1,030.00 315.00 10225088 C31/670-K-M1B 670.00 1,090.00 336.00 10225090 C31/710-K-M1B 710.00 1,150.00 345.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-V

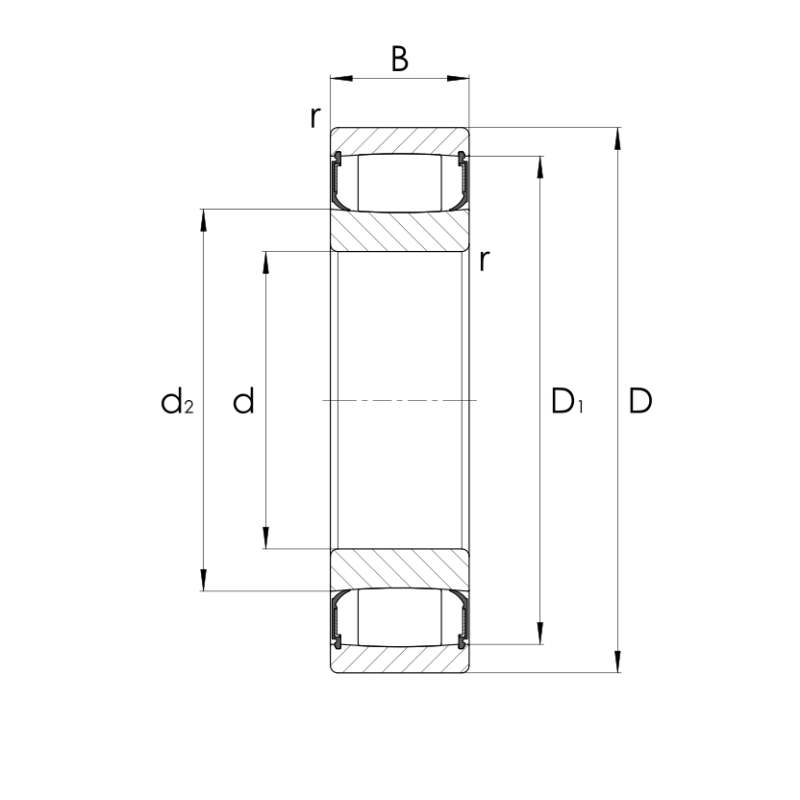

Toroidal roller bearing C31-V - full complement roller
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225093 C3120-V 100.00 165.00 52.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
C31-K-V

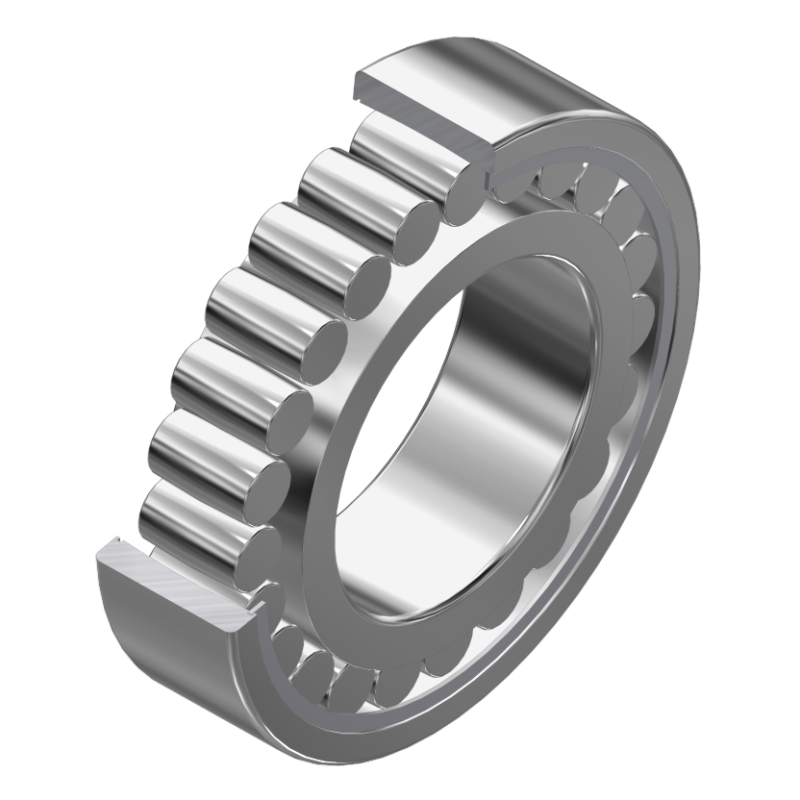

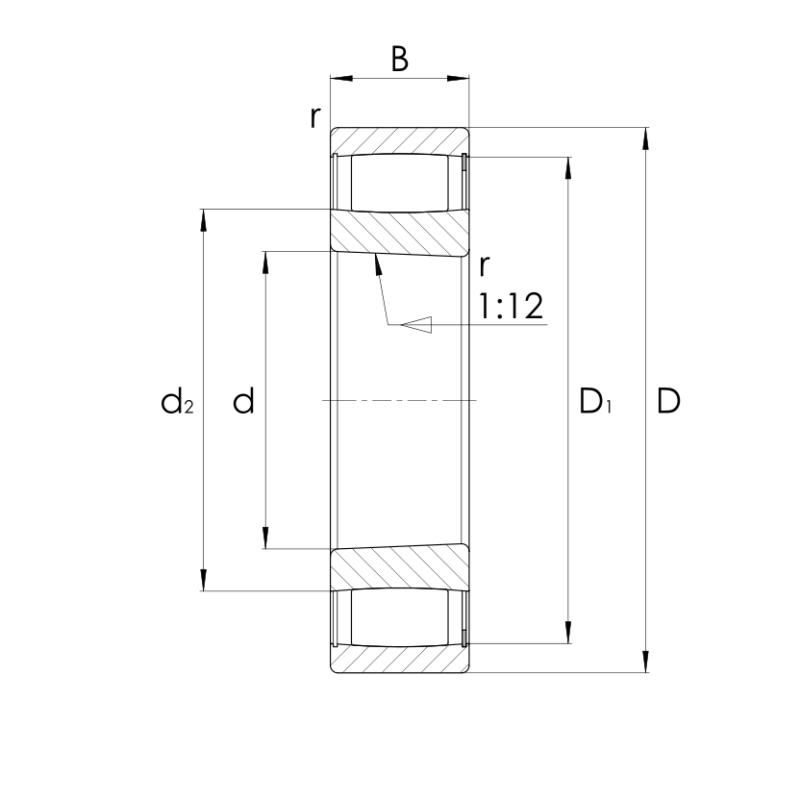

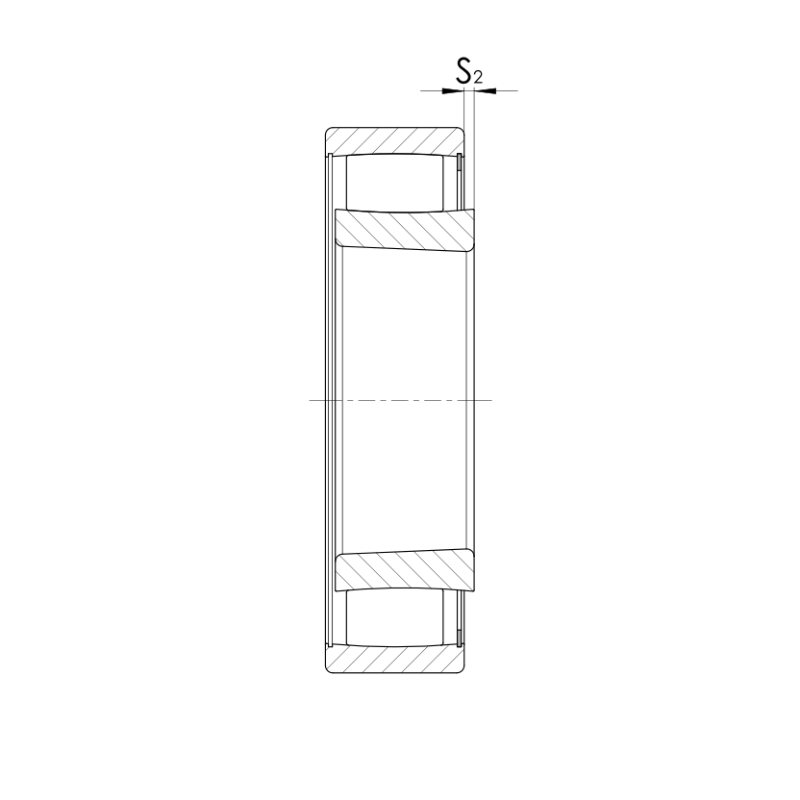

Toroidal roller bearing C31-V - full complement roller, with conical bore (taper 1:12)
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10225092 C3120-K-V 100.00 165.00 52.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
