  • NX

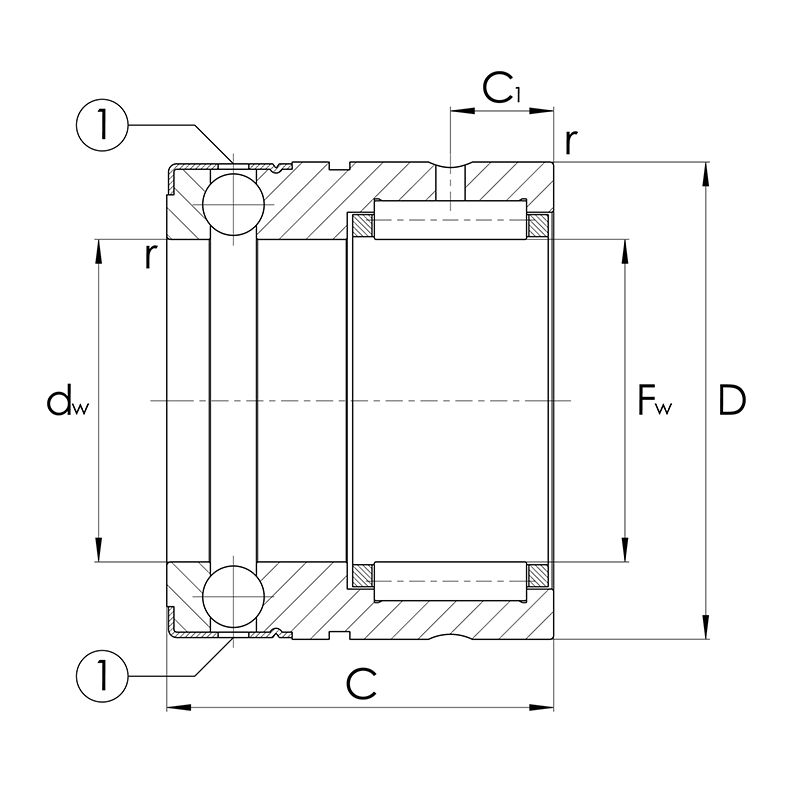

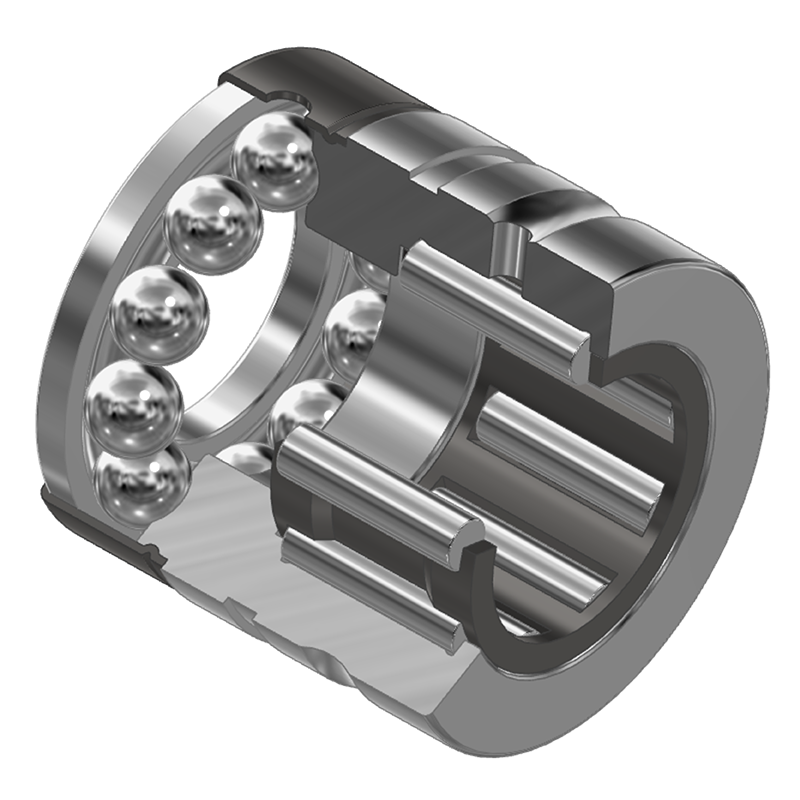

    Needle axial deep groove ball bearing according to DIN 5492

    • NX, axial one-side acting

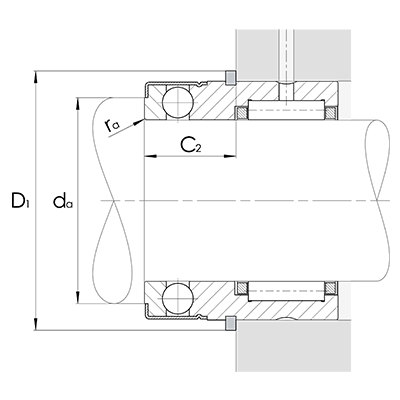

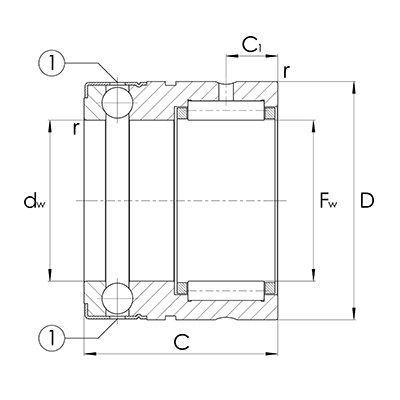

      NX, axial one-side acting
    • NX, axial one-side acting
      NX, axial one-side acting
    • NX, axial one-side acting
      NX, axial one-side acting
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10080487 NX7-TV 7.00 14.00 18.00
      10080471 NX10 10.00 19.00 18.00
      10080473 NX12 12.00 21.00 18.00
      10080475 NX15 15.00 24.00 28.00
      10080477 NX17 17.00 26.00 28.00
      10080479 NX20 20.00 30.00 28.00
      10080481 NX25 25.00 37.00 30.00
      10080483 NX30 30.00 42.00 30.00
      10080485 NX35 35.00 47.00 30.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • NX..-Z

      Needle axial deep groove ball bearing according to DIN 5492

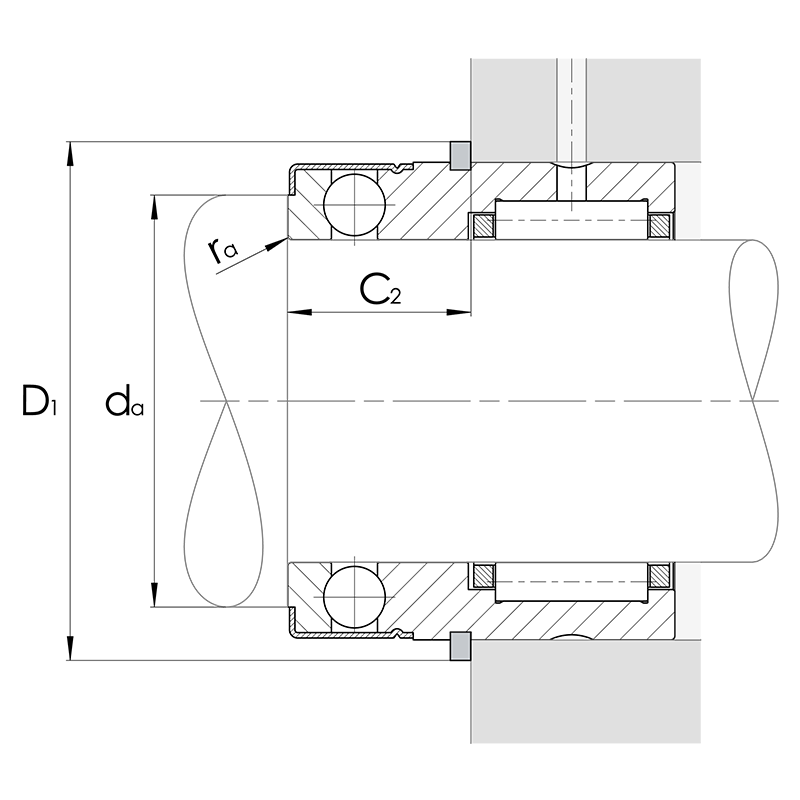

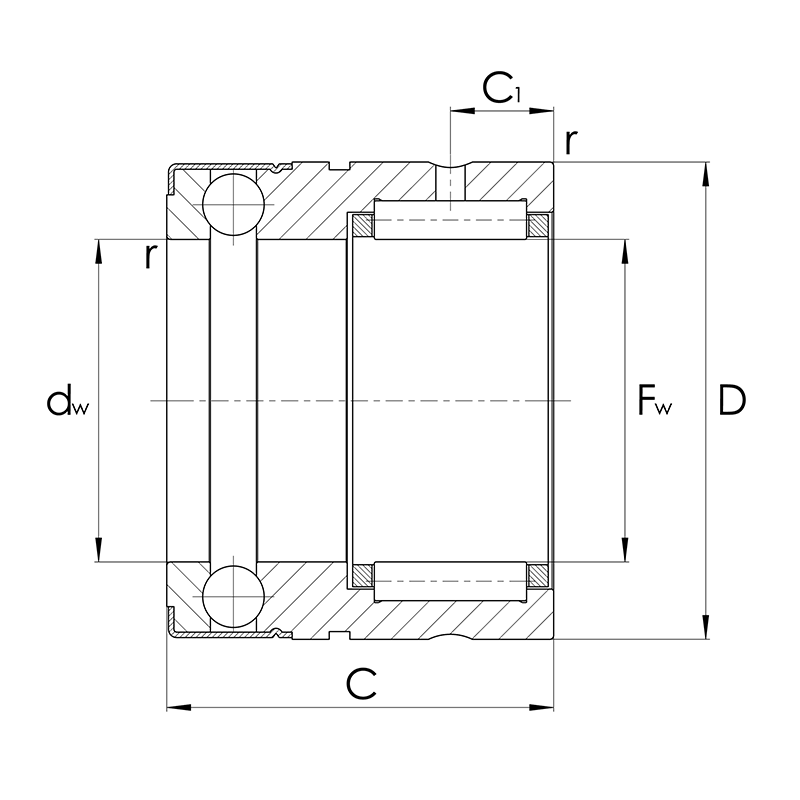

      • NX..-Z, axial one-side acting

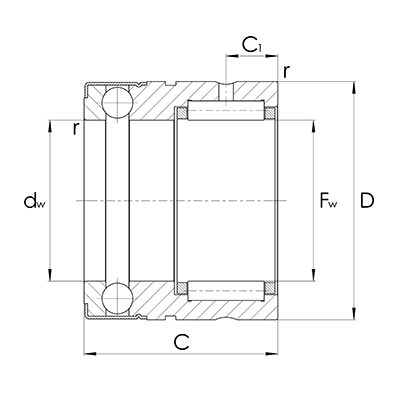

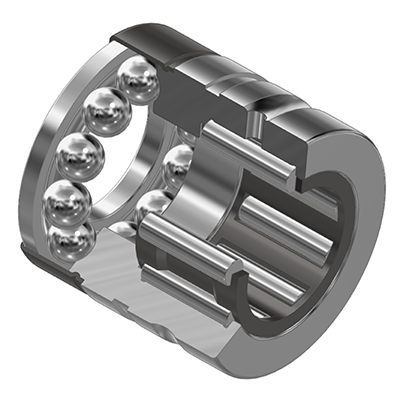

        NX..-Z, axial one-side acting
      • NX..-Z, axial one-side acting
        NX..-Z, axial one-side acting
      • NX..-Z, axial one-side acting
        NX..-Z, axial one-side acting
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10080488 NX7-Z-TV 7.00 14.00 18.00
        10080472 NX10-Z 10.00 19.00 18.00
        10080474 NX12-Z 12.00 21.00 18.00
        10080476 NX15-Z 15.00 24.00 28.00
        10080478 NX17-Z 17.00 26.00 28.00
        10080480 NX20-Z 20.00 30.00 28.00
        10080482 NX25-Z 25.00 37.00 30.00
        10080484 NX30-Z 30.00 42.00 30.00
        10080486 NX35-Z 35.00 47.00 30.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
