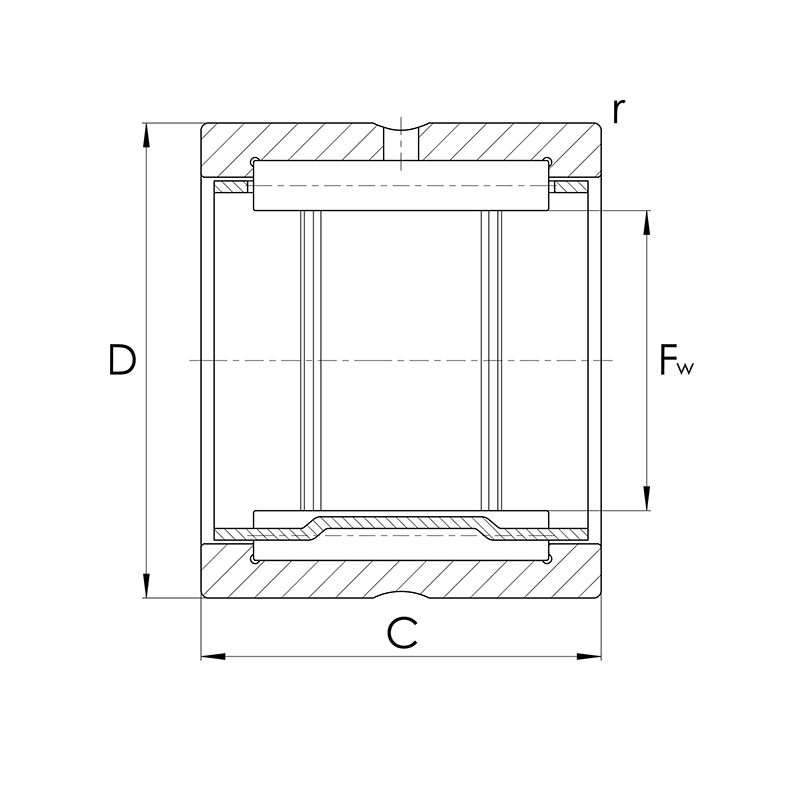

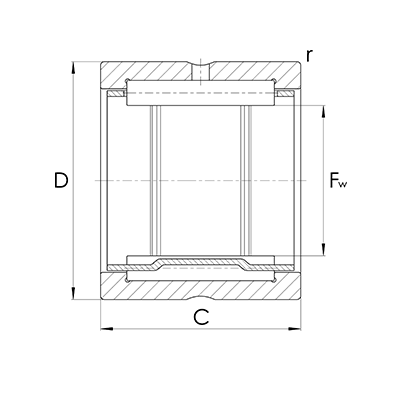

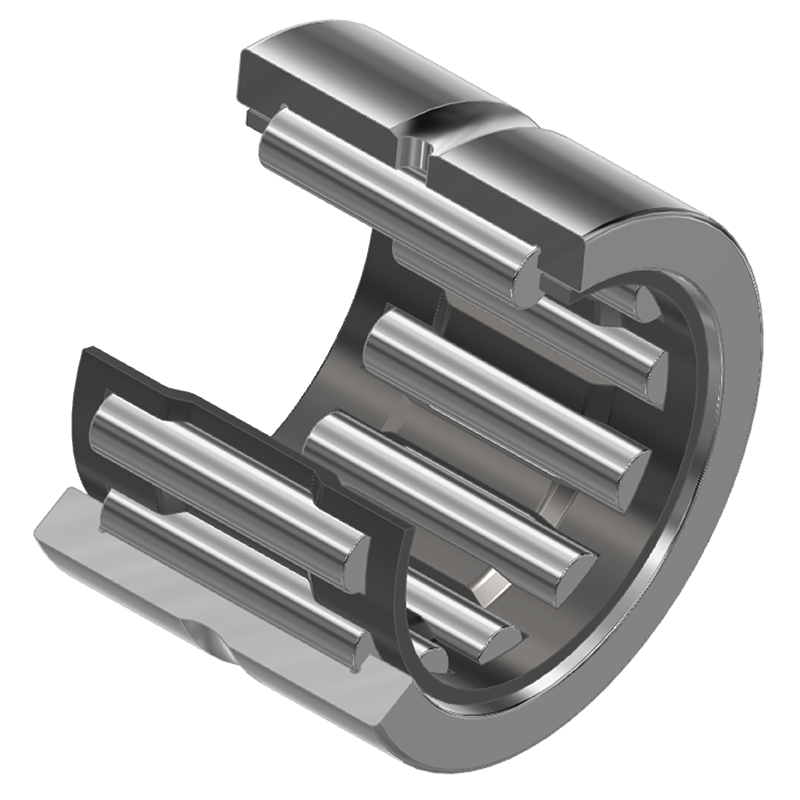

Nadellager NKS, schwere Reihe nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10041155 | NKS20 | 20,00 | 32,00 | 20,00 | |
| 10041156 | NKS22 | 22,00 | 35,00 | 20,00 | |
| 10041157 | NKS24 | 24,00 | 37,00 | 20,00 | |
| 10041158 | NKS25 | 25,00 | 38,00 | 20,00 | |
| 10041159 | NKS28 | 28,00 | 42,00 | 20,00 | |
| 10041160 | NKS30 | 30,00 | 45,00 | 22,00 | |
| 10041161 | NKS32 | 32,00 | 47,00 | 22,00 | |
| 10041162 | NKS35 | 35,00 | 50,00 | 22,00 | |
| 10041163 | NKS37 | 37,00 | 52,00 | 22,00 | |
| 10041164 | NKS40 | 40,00 | 55,00 | 22,00 | |
| 10041165 | NKS43 | 43,00 | 58,00 | 22,00 | |
| 10041166 | NKS45 | 45,00 | 60,00 | 22,00 | |
| 10041167 | NKS50 | 50,00 | 65,00 | 22,00 | |
| 10041168 | NKS55 | 55,00 | 72,00 | 22,00 | |
| 10041169 | NKS60 | 60,00 | 80,00 | 28,00 | |
| 10041170 | NKS65 | 65,00 | 85,00 | 28,00 | |
| 10041171 | NKS70 | 70,00 | 90,00 | 28,00 | |
| 10041172 | NKS75 | 75,00 | 95,00 | 28,00 | |
