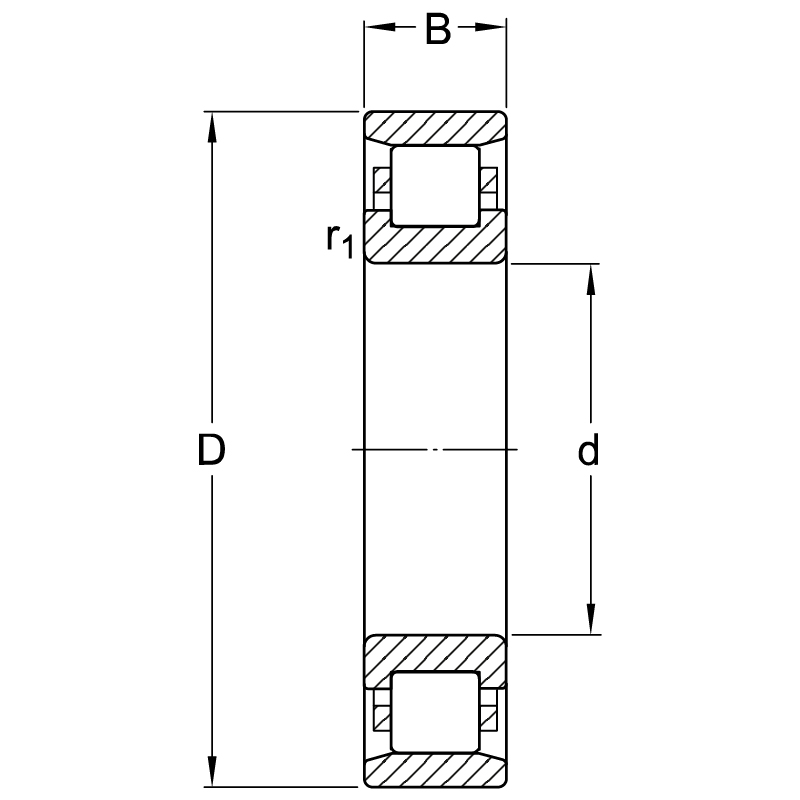

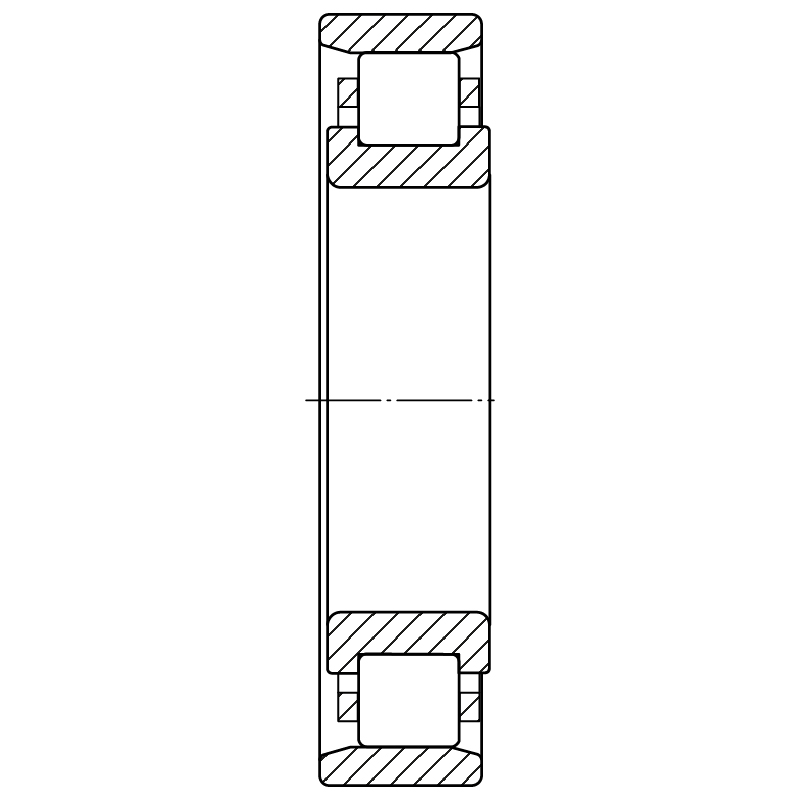

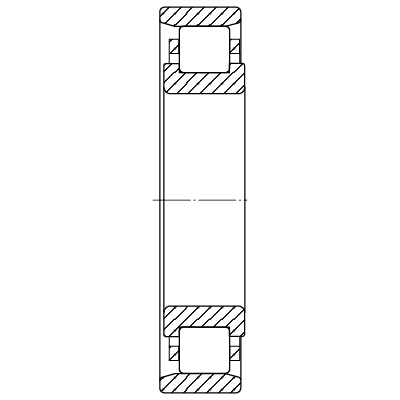

Cylindrical roller bearing N DIN 5412-1, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147145 | N203-E | 17.00 | 40.00 | 12.00 | |
| 10147172 | N303-E | 17.00 | 47.00 | 14.00 | |
| 10147146 | N204-E | 20.00 | 47.00 | 14.00 | |
| 10147173 | N304-E | 20.00 | 52.00 | 15.00 | |
| 10147174 | N305-E | 25.00 | 62.00 | 17.00 | |
| 10147147 | N205-E | 25.00 | 52.00 | 15.00 | |
| 10147175 | N306-E | 30.00 | 72.00 | 19.00 | |
| 10147148 | N206-E | 30.00 | 62.00 | 16.00 | |
| 10147163 | N2206-E | 30.00 | 62.00 | 20.00 | |
| 10147149 | N207-E | 35.00 | 72.00 | 17.00 | |
| 10147176 | N307-E | 35.00 | 80.00 | 21.00 | |
| 10147164 | N2207-E | 35.00 | 72.00 | 23.00 | |
| 10147150 | N208-E | 40.00 | 80.00 | 18.00 | |
| 10147177 | N308-E | 40.00 | 90.00 | 23.00 | |
| 10147165 | N2208-E | 40.00 | 80.00 | 23.00 | |
| 10147178 | N309-E | 45.00 | 100.00 | 25.00 | |
| 10147166 | N2209-E | 45.00 | 85.00 | 23.00 | |
| 10147151 | N209-E | 45.00 | 85.00 | 19.00 | |
| 10147179 | N310-E | 50.00 | 110.00 | 27.00 | |
| 10147152 | N210-E | 50.00 | 90.00 | 20.00 | |
| 10147180 | N311-E | 55.00 | 120.00 | 29.00 | |
| 10147153 | N211-E | 55.00 | 100.00 | 21.00 | |
| 10147168 | N2211-E | 55.00 | 100.00 | 25.00 | |
| 10147169 | N2212-E | 60.00 | 110.00 | 28.00 | |
| 10147181 | N312-E | 60.00 | 130.00 | 31.00 | |
| 10147154 | N212-E | 60.00 | 110.00 | 22.00 | |
| 10147182 | N313-E | 65.00 | 140.00 | 33.00 | |
| 10147155 | N213-E | 65.00 | 120.00 | 23.00 | |
| 10147156 | N214-E | 70.00 | 125.00 | 24.00 | |
| 10147183 | N314-E | 70.00 | 150.00 | 35.00 | |
| 10147157 | N215-E | 75.00 | 130.00 | 25.00 | |
| 10147184 | N315-E | 75.00 | 160.00 | 37.00 | |
| 10147158 | N216-E | 80.00 | 140.00 | 26.00 | |
| 10147185 | N316-E | 80.00 | 170.00 | 39.00 | |
| 10147186 | N317-E | 85.00 | 180.00 | 41.00 | |
| 10147159 | N217-E | 85.00 | 150.00 | 28.00 | |
| 10147187 | N318-E | 90.00 | 190.00 | 43.00 | |
| 10147160 | N218-E | 90.00 | 160.00 | 30.00 | |
| 10147170 | N2219-E | 95.00 | 170.00 | 43.00 | |
| 10147188 | N319-E | 95.00 | 200.00 | 45.00 | |
| 10147161 | N219-E | 95.00 | 170.00 | 32.00 | |
| 10147189 | N320-E | 100.00 | 215.00 | 47.00 | |
| 10147162 | N220-E | 100.00 | 180.00 | 34.00 | |
| 10147167 | N221-EC | 105.00 | 190.00 | 36.00 | |
| 10147171 | N222-EC | 110.00 | 200.00 | 38.00 | |
