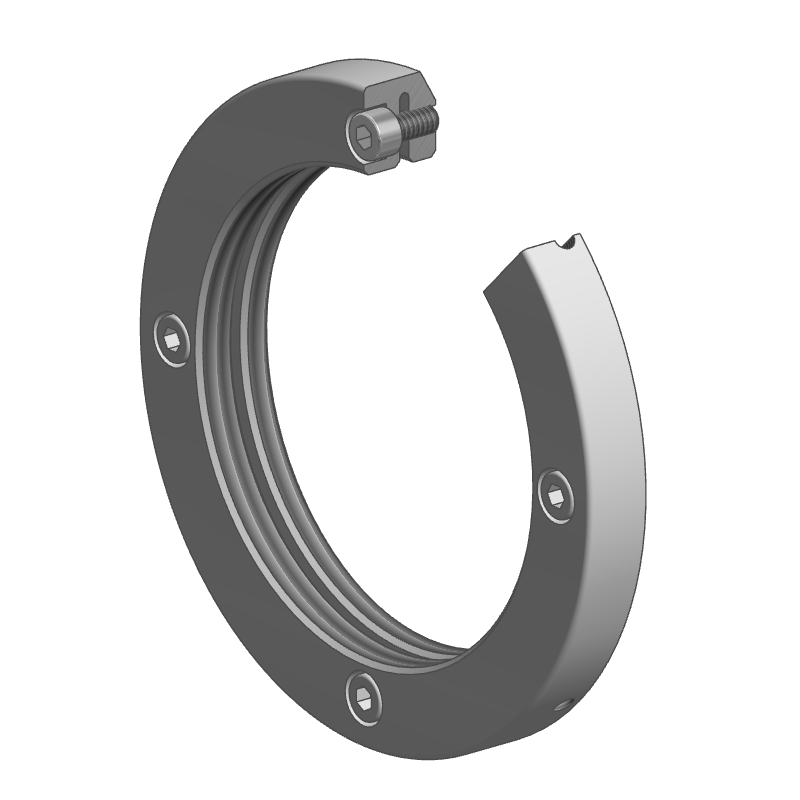

Shaft nut HMZ

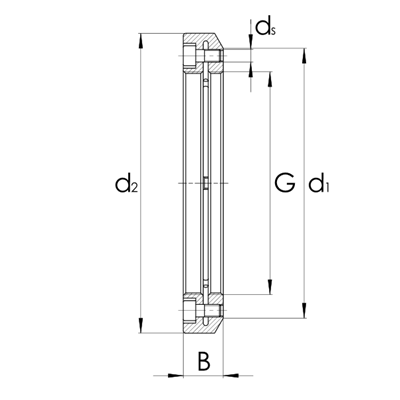

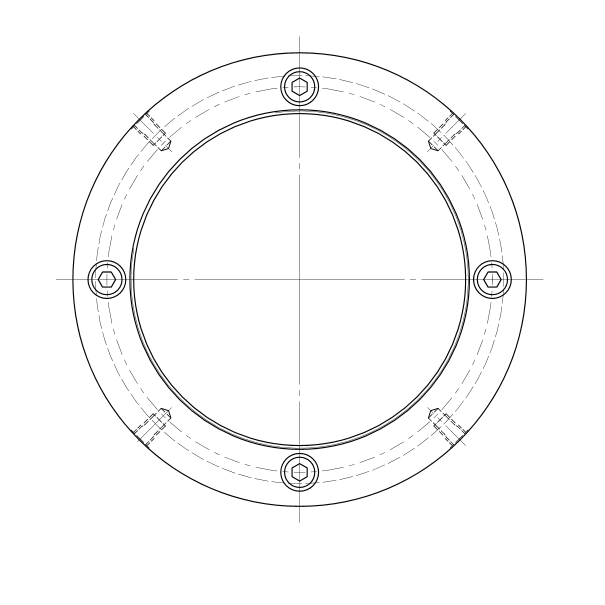

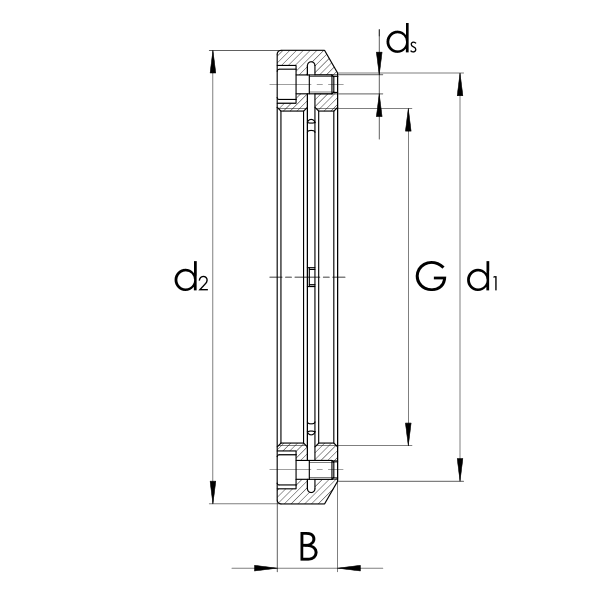

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | |||
| mm | mm | ||||
| 10147103 | HMZ18 | M90x2 | 120.00 | 16.00 | |
| 10147104 | HMZ19 | M95x2 | 125.00 | 17.00 | |
| 10147105 | HMZ20 | M100x2 | 130.00 | 18.00 | |
| 10147106 | HMZ21 | M105x2 | 140.00 | 18.00 | |
| 10147107 | HMZ22 | M110x2 | 145.00 | 19.00 | |
| 10147108 | HMZ23 | M115x2 | 150.00 | 19.00 | |
| 10147109 | HMZ24 | M120x2 | 155.00 | 20.00 | |
| 10147110 | HMZ25 | M125x2 | 160.00 | 21.00 | |
| 10147112 | HMZ26 | M130x2 | 165.00 | 21.00 | |
| 10147113 | HMZ27 | M135x2 | 175.00 | 22.00 | |
| 10147114 | HMZ28 | M140x2 | 180.00 | 22.00 | |
| 10147115 | HMZ29 | M145x2 | 190.00 | 24.00 | |
| 10147116 | HMZ30 | M150x2 | 195.00 | 24.00 | |
| 10147117 | HMZ31 | M155x3 | 200.00 | 25.00 | |
| 10147118 | HMZ32 | M160x3 | 210.00 | 25.00 | |
| 10147119 | HMZ33 | M165x3 | 210.00 | 26.00 | |
| 10147120 | HMZ34 | M170x3 | 220.00 | 26.00 | |
| 10147121 | HMZ36 | M180x3 | 230.00 | 27.00 | |
| 10147122 | HMZ38 | M190x3 | 240.00 | 28.00 | |
| 10147123 | HMZ40 | M200x3 | 250.00 | 29.00 | |
| 10147124 | HMZ3044 | Tr220x4 | 260.00 | 30.00 | |
| 10147125 | HMZ3048 | Tr240x4 | 290.00 | 34.00 | |
| 10147126 | HMZ3052 | Tr260x4 | 310.00 | 34.00 | |
| 10147127 | HMZ3056 | Tr280x4 | 330.00 | 38.00 | |
| 10147128 | HMZ3060 | Tr300x4 | 360.00 | 42.00 | |
| 10147129 | HMZ3064 | Tr320x5 | 380.00 | 42.00 | |
| 10147130 | HMZ3068 | Tr340x5 | 400.00 | 45.00 | |
| 10147131 | HMZ3072 | Tr360x5 | 420.00 | 45.00 | |
| 10147132 | HMZ3076 | Tr380x5 | 450.00 | 48.00 | |
| 10147133 | HMZ3080 | Tr400x5 | 470.00 | 52.00 | |
| 10147134 | HMZ3084 | Tr420x5 | 490.00 | 52.00 | |
| 10147135 | HMZ3088 | Tr440x5 | 520.00 | 60.00 | |
| 10147136 | HMZ3092 | Tr460x5 | 540.00 | 60.00 | |
| 10147137 | HMZ3096 | Tr480x5 | 560.00 | 60.00 | |
| 10170832 | HMZ30/530 | Tr530x6 | 630.00 | 68.00 | |
| 10170834 | HMZ30/600 | Tr600x6 | 700.00 | 75.00 | |
| 10170836 | HMZ30/670 | Tr670x6 | 780.00 | 80.00 | |
| 10170838 | HMZ30/750 | Tr750x7 | 870.00 | 90.00 | |
| 10170840 | HMZ30/850 | Tr850x7 | 980.00 | 90.00 | |
| 10170842 | HMZ30/950 | Tr950x8 | 1,080.00 | 100.00 | |
| 10170843 | HMZ30/1000 | Tr1000x8 | 1,140.00 | 100.00 | |
| 10170845 | HMZ30/1120 | Tr1120x8 | 1,260.00 | 100.00 | |
| 10170847 | HMZ30/1250 | Tr1250x8 | 1,390.00 | 110.00 | |
| 10170849 | HMZ30/1400 | Tr1400x8 | 1,540.00 | 110.00 | |
