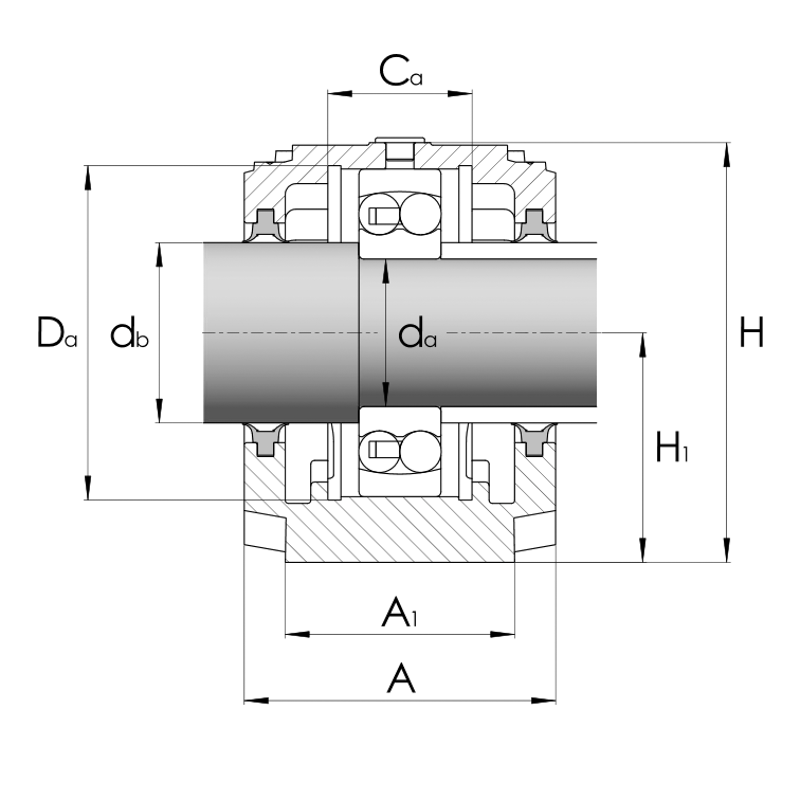

Stehlagergehäuse (geteilt) - SNL300
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| db | L | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| db | L | J | |||
| mm | mm | mm | |||
| 100644730 | SNL305 | 30,00 | 185,00 | 150,00 | |
| 100615352 | SNL306 | 35,00 | 185,00 | 150,00 | |
| 100644750 | SNL307 | 45,00 | 205,00 | 170,00 | |
| 100615382 | SNL308 | 50,00 | 205,00 | 170,00 | |
| 100615392 | SNL309 | 55,00 | 255,00 | 210,00 | |
| 100615402 | SNL310 | 60,00 | 255,00 | 210,00 | |
| 100615412 | SNL311 | 65,00 | 275,00 | 230,00 | |
| 100615422 | SNL312 | 70,00 | 280,00 | 230,00 | |
| 100615432 | SNL313 | 75,00 | 315,00 | 260,00 | |
| 100615441 | SNL314 | 80,00 | 320,00 | 260,00 | |
| 100615452 | SNL315 | 85,00 | 345,00 | 290,00 | |
| 100615462 | SNL316 | 90,00 | 345,00 | 290,00 | |
| 100615472 | SNL317 | 95,00 | 380,00 | 320,00 | |
| 100615482 | SNL319 | 110,00 | 410,00 | 350,00 | |
| 100615492 | SNL320 | 115,00 | 410,00 | 350,00 | |
