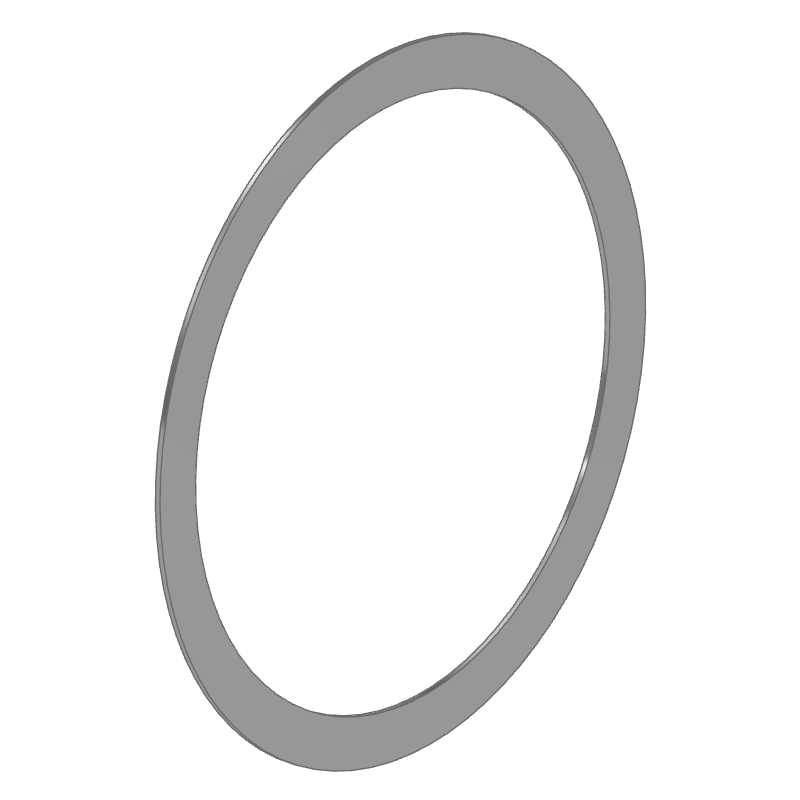

Axial-Lagerscheiben AS
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B>subgt;1>/subgt; | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B>subgt;1>/subgt; | |||
| mm | mm | mm | |||
| 10105889 | AS0414 | 4,00 | 14,00 | 1,00 | |
| 10105890 | AS0515 | 5,00 | 15,00 | 1,00 | |
| 10105891 | AS0619 | 6,00 | 19,00 | 1,00 | |
| 10105892 | AS0821 | 8,00 | 21,00 | 1,00 | |
| 10105894 | AS1024 | 10,00 | 24,00 | 1,00 | |
| 10105897 | AS1226 | 12,00 | 26,00 | 1,00 | |
| 10105901 | AS1528 | 15,00 | 28,00 | 1,00 | |
| 10105903 | AS1730 | 17,00 | 30,00 | 1,00 | |
| 10105904 | AS2035 | 20,00 | 35,00 | 1,00 | |
| 10105905 | AS2542 | 25,00 | 42,00 | 1,00 | |
| 10105906 | AS3047 | 30,00 | 47,00 | 1,00 | |
| 10105907 | AS3552 | 35,00 | 52,00 | 1,00 | |
| 10105908 | AS4060 | 40,00 | 60,00 | 1,00 | |
| 10105909 | AS4565 | 45,00 | 65,00 | 1,00 | |
| 10105910 | AS5070 | 50,00 | 70,00 | 1,00 | |
| 10105911 | AS5578 | 55,00 | 78,00 | 1,00 | |
| 10105912 | AS6085 | 60,00 | 85,00 | 1,00 | |
| 10105913 | AS6590 | 65,00 | 90,00 | 1,00 | |
| 10105914 | AS7095 | 70,00 | 95,00 | 1,00 | |
| 10105915 | AS75100 | 75,00 | 100,00 | 1,00 | |
| 10105916 | AS80105 | 80,00 | 105,00 | 1,00 | |
| 10105917 | AS85110 | 85,00 | 110,00 | 1,00 | |
| 10105918 | AS90120 | 90,00 | 120,00 | 1,00 | |
| 10105893 | AS100135 | 100,00 | 135,00 | 1,00 | |
| 10105895 | AS110145 | 110,00 | 145,00 | 1,00 | |
| 10105896 | AS120155 | 120,00 | 155,00 | 1,00 | |
| 10105898 | AS130170 | 130,00 | 170,00 | 1,00 | |
| 10105899 | AS140180 | 140,00 | 180,00 | 1,00 | |
| 10105900 | AS150190 | 150,00 | 190,00 | 1,00 | |
| 10105902 | AS160200 | 160,00 | 200,00 | 1,00 | |
