Seal carrier for ZARF screw drives (Needle axial cylindrical roller bearings)

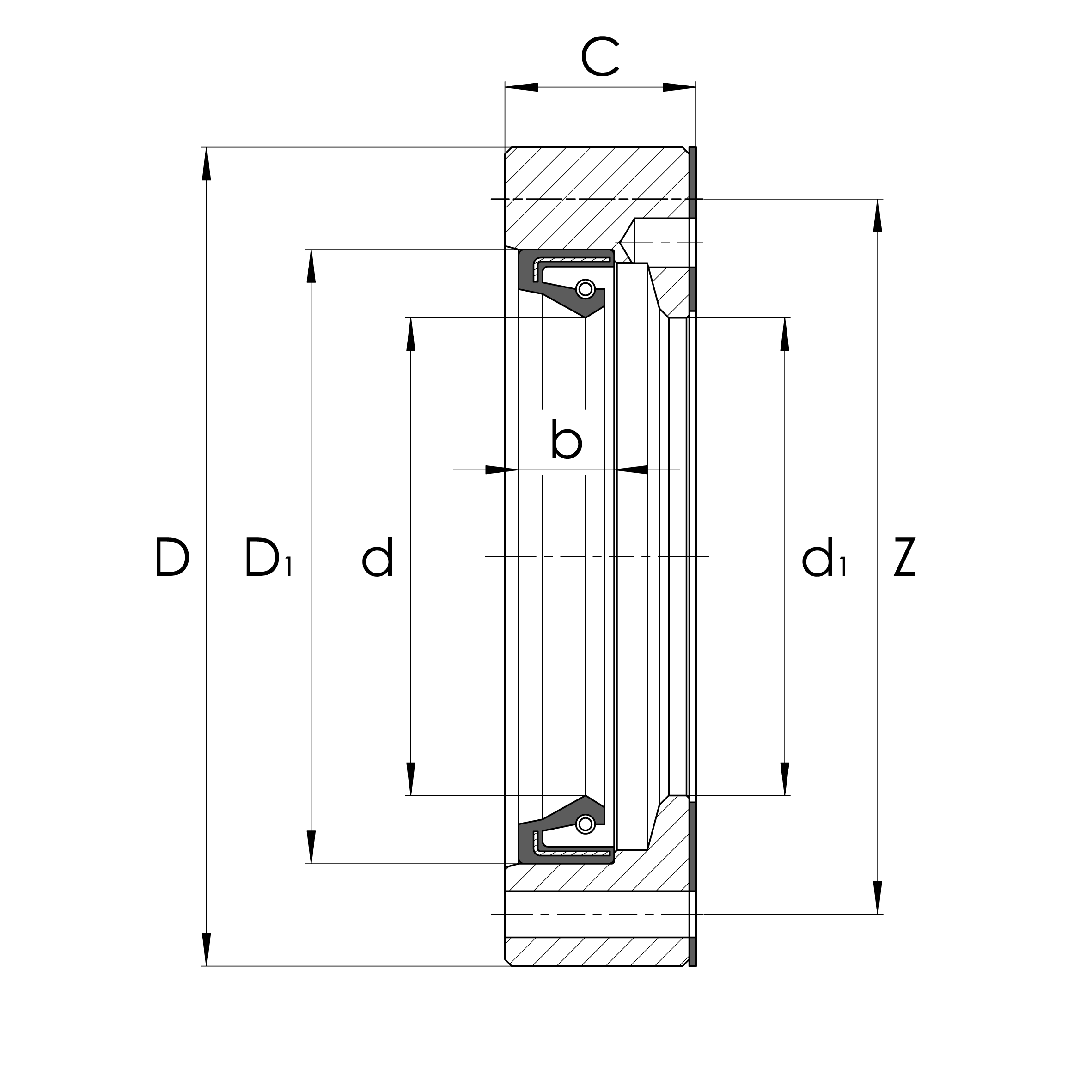

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10315521 | DRS1560 | 35.00 | 60.00 | 14.00 | |
| 10315522 | DRS1762 | 38.00 | 62.00 | 15.50 | |
| 10315523 | DRS2068 | 42.00 | 68.00 | 17.00 | |
| 10315524 | DRS2575 | 47.00 | 75.00 | 17.00 | |
| 10315525 | DRS3080 | 52.00 | 80.00 | 17.00 | |
| 10315530 | DRS2080 | 52.00 | 80.00 | 22.00 | |
| 10315526 | DRS3590 | 60.00 | 90.00 | 19.00 | |
| 10315531 | DRS2590 | 62.00 | 90.00 | 22.00 | |
| 10315527 | DRS40100 | 65.00 | 100.00 | 19.00 | |
| 10315532 | DRS30105 | 68.00 | 105.00 | 25.00 | |
| 10315528 | DRS45105 | 70.00 | 105.00 | 20.00 | |
| 10315533 | DRS35110 | 73.00 | 110.00 | 25.00 | |
| 10315529 | DRS50115 | 78.00 | 115.00 | 20.00 | |
| 10315534 | DRS40115 | 78.00 | 115.00 | 27.50 | |
| 10315535 | DRS45130 | 90.00 | 130.00 | 31.00 | |
| 10315536 | DRS50140 | 95.00 | 140.00 | 30.00 | |
| 10315537 | DRS55145 | 100.00 | 145.00 | 30.00 | |
| 10315538 | DRS60150 | 105.00 | 150.00 | 30.00 | |
| 10315539 | DRS65155 | 110.00 | 155.00 | 30.00 | |
| 10315540 | DRS70160 | 115.00 | 160.00 | 30.00 | |
| 10315541 | DRS75185 | 135.00 | 185.00 | 36.00 | |
| 10315542 | DRS90210 | 160.00 | 210.00 | 38.00 | |
