  • GIR-DO

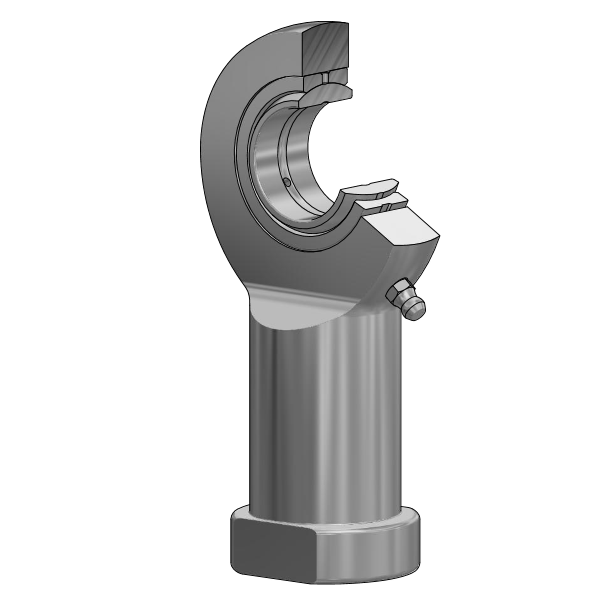

    Radial-Gelenkkopf GIR..DO / GIL..DO nach DIN ISO 12240-4

    • Radial-Gelenkkopf GIR..DO

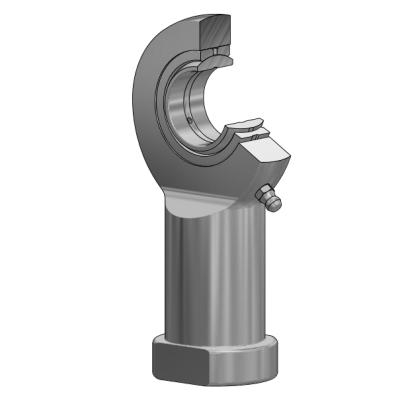

      Radial-Gelenkkopf GIR..DO
    • Radial-Gelenkkopf GIR..DO
      Radial-Gelenkkopf GIR..DO
    • Radial-Gelenkkopf GIR..DO
      Radial-Gelenkkopf GIR..DO

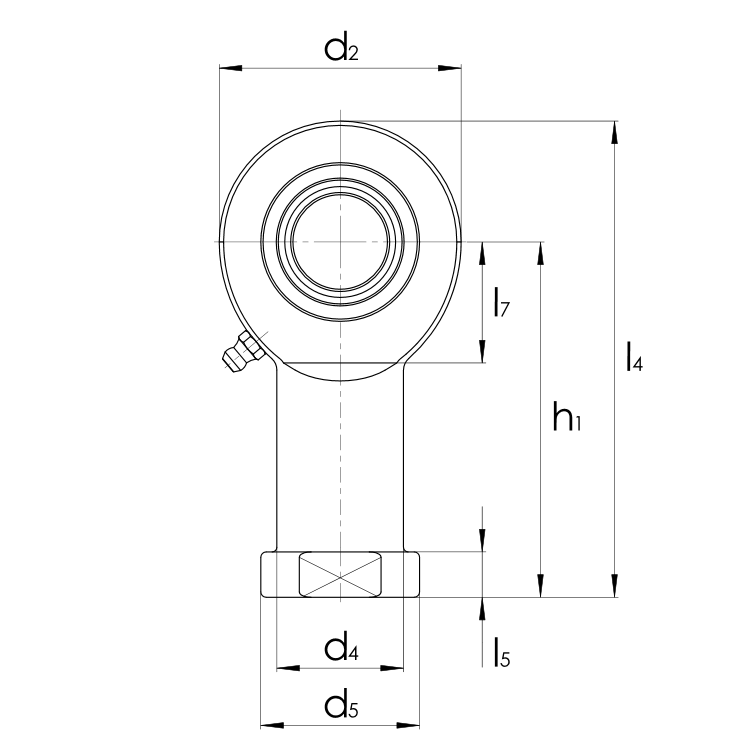

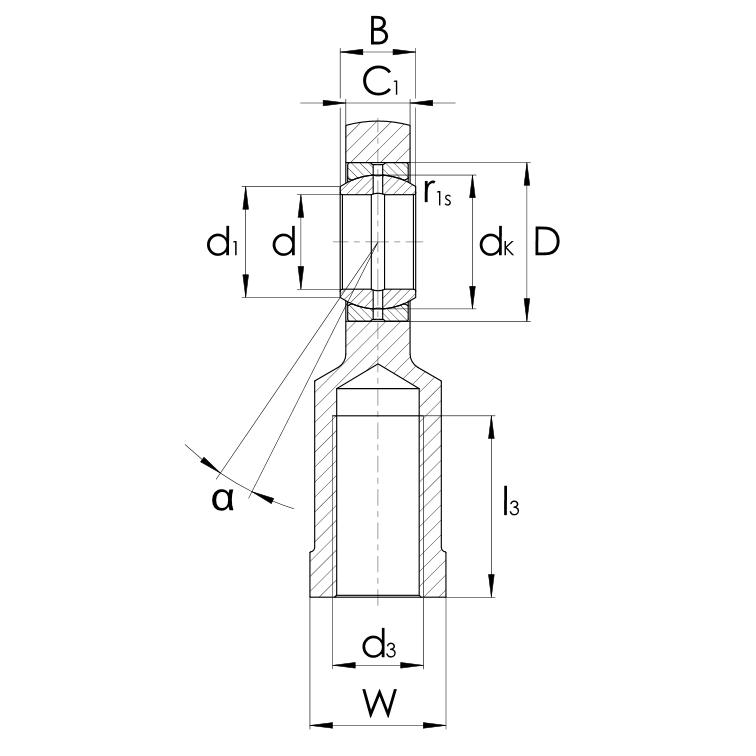

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10041483 GIR6-DO 6,00 14,00 6,00
      10041489 GIR8-DO 8,00 16,00 8,00
      10041461 GIR10-DO 10,00 19,00 9,00
      10041463 GIR12-DO 12,00 22,00 10,00
      10041465 GIR15-DO 15,00 26,00 12,00
      10041467 GIR17-DO 17,00 30,00 14,00
      10041469 GIR20-DO 20,00 35,00 16,00
      10041471 GIR25-DO 25,00 42,00 20,00
      10041473 GIR30-DO 30,00 47,00 22,00
      10041475 GIR35-DO-2RS 35,00 55,00 25,00
      10041477 GIR40-DO-2RS 40,00 62,00 28,00
      10041479 GIR45-DO-2RS 45,00 68,00 32,00
      10041481 GIR50-DO-2RS 50,00 75,00 35,00
      10041485 GIR60-DO-2RS 60,00 90,00 44,00
      10041487 GIR70-DO-2RS 70,00 105,00 49,00
      10041491 GIR80-DO-2RS 80,00 120,00 55,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GIL-DO

      Radial-Gelenkkopf GIR..DO / GIL..DO nach DIN ISO 12240-4

      • Radial-Gelenkkopf GIL..DO
        Radial-Gelenkkopf GIL..DO
      • Radial-Gelenkkopf GIL..DO
        Radial-Gelenkkopf GIL..DO
      • Radial-Gelenkkopf GIL..DO
        Radial-Gelenkkopf GIL..DO
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10041451 GIL6-DO 6,00 14,00 6,00
        10041457 GIL8-DO 8,00 16,00 8,00
        10041429 GIL10-DO 10,00 19,00 9,00
        10041431 GIL12-DO 12,00 22,00 10,00
        10041433 GIL15-DO 15,00 26,00 12,00
        10041435 GIL17-DO 17,00 30,00 14,00
        10041437 GIL20-DO 20,00 35,00 16,00
        10041439 GIL25-DO 25,00 42,00 20,00
        10041441 GIL30-DO 30,00 47,00 22,00
        10041443 GIL35-DO-2RS 35,00 55,00 25,00
        10041445 GIL40-DO-2RS 40,00 62,00 28,00
        10041447 GIL45-DO-2RS 45,00 68,00 32,00
        10041449 GIL50-DO-2RS 50,00 75,00 35,00
        10041453 GIL60-DO-2RS 60,00 90,00 44,00
        10041455 GIL70-DO-2RS 70,00 105,00 49,00
        10041459 GIL80-DO-2RS 80,00 120,00 55,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
