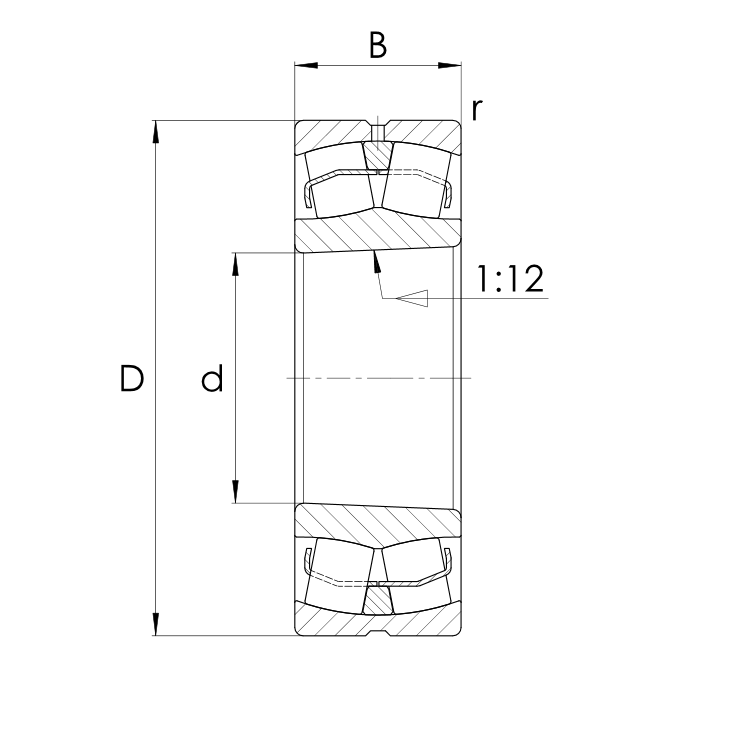

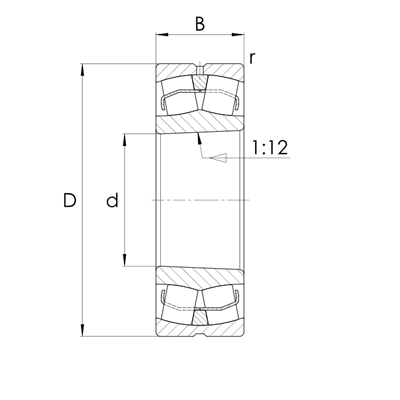

Spherical roller bearing 238, DIN 635-2, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10027866 | 238/630CAMA/W20 | 630.00 | 780.00 | 112.00 | |
| 10027868 | 238/670CAMA/W20 | 670.00 | 820.00 | 112.00 | |
| 10027869 | 238/710CAMA/W20 | 710.00 | 870.00 | 118.00 | |
| 10027871 | 238/750CAMA/W20 | 750.00 | 920.00 | 128.00 | |
| 10027873 | 238/850CAMA/W20 | 850.00 | 1,030.00 | 136.00 | |
| 10027858 | 238/1000CAMA/W20 | 1,000.00 | 1,220.00 | 165.00 | |
| 10027860 | 238/1060CAMA/W20 | 1,060.00 | 1,280.00 | 165.00 | |
| 10027861 | 238/1180CAFA/W20 | 1,180.00 | 1,420.00 | 180.00 | |
