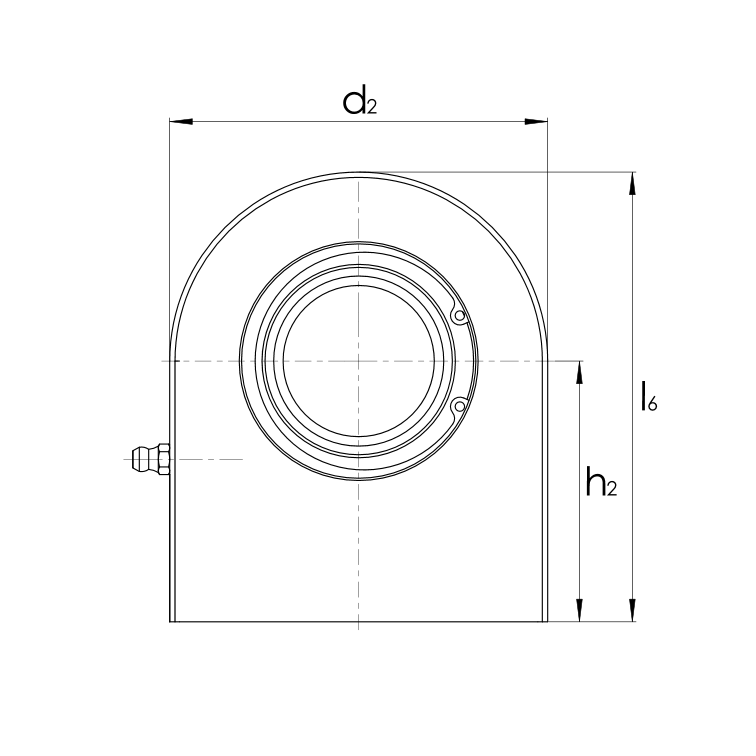

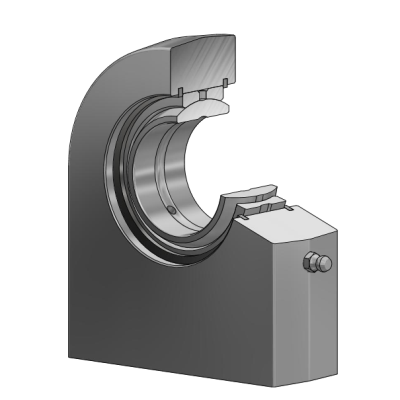

Hydraulik-Gelenkkopf GF..DO,massive Ausführung mit rechteckigem Anschweißende, für Hydraulik-Zylinderböden
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10040628 | GF20-DO | 20,00 | 35,00 | 16,00 | |
| 10040629 | GF25-DO | 25,00 | 42,00 | 20,00 | |
| 10040630 | GF30-DO | 30,00 | 47,00 | 22,00 | |
| 10040631 | GF35-DO | 35,00 | 55,00 | 25,00 | |
| 10040632 | GF40-DO | 40,00 | 62,00 | 28,00 | |
| 10040633 | GF45-DO | 45,00 | 68,00 | 32,00 | |
| 10040634 | GF50-DO | 50,00 | 75,00 | 35,00 | |
| 10040635 | GF60-DO | 60,00 | 90,00 | 44,00 | |
| 10040636 | GF70-DO | 70,00 | 105,00 | 49,00 | |
| 10040637 | GF80-DO | 80,00 | 120,00 | 55,00 | |
| 10040638 | GF90-DO | 90,00 | 130,00 | 60,00 | |
| 10040625 | GF100-DO | 100,00 | 150,00 | 70,00 | |
| 10040626 | GF110-DO | 110,00 | 160,00 | 70,00 | |
| 10040627 | GF120-DO | 120,00 | 180,00 | 85,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
<
