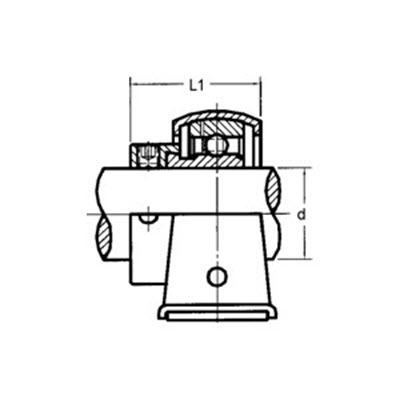

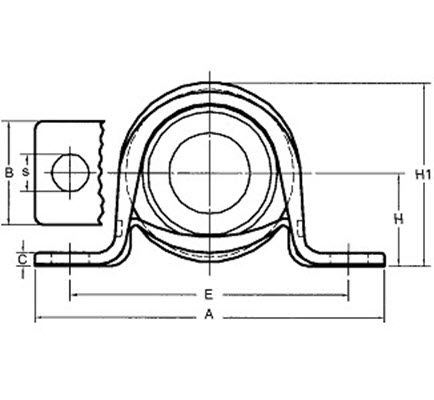

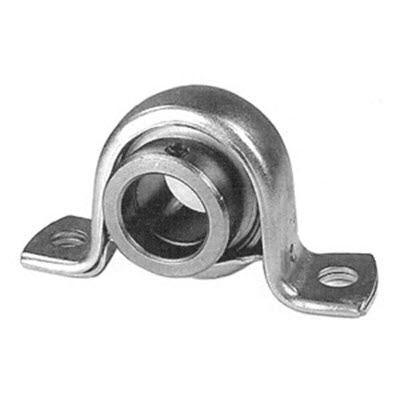

Stehlager BS
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | A | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | A | L | |||
| mm | mm | mm | |||
| 30000596 | BS12 | 12,00 | 86,00 | 34,60 | |
| 30000597 | BS15 | 15,00 | 86,00 | 34,60 | |
| 30000598 | BS17 | 17,00 | 86,00 | 34,60 | |
| 30000599 | BS20 | 20,00 | 98,00 | 39,50 | |
| 30000600 | BS25 | 25,00 | 108,00 | 39,50 | |
| 30000601 | BS30 | 30,00 | 117,00 | 45,70 | |
| 30000602 | BS35 | 35,00 | 129,00 | 50,40 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
