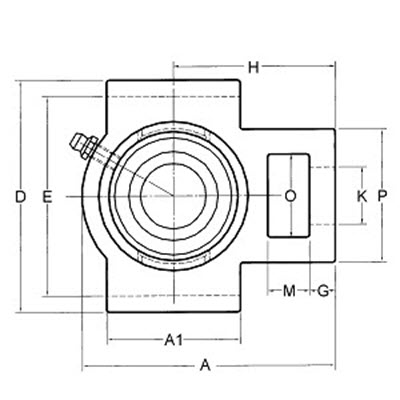

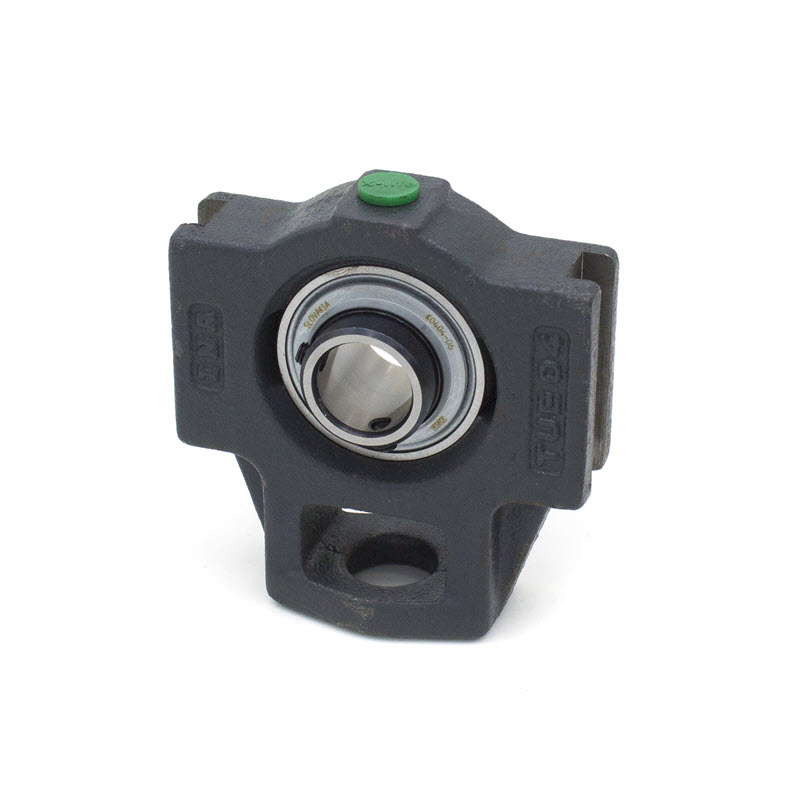

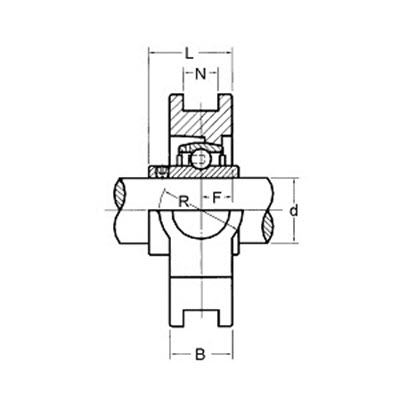

Spannkopflager WS200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | A | |||
| mm | mm | mm | |||
| 30000767 | WS204U | 20,00 | 89,00 | 94,00 | |
| 30000768 | WS205U | 25,00 | 89,00 | 97,00 | |
| 30000769 | WS206U | 30,00 | 102,00 | 113,00 | |
| 30000770 | WS207U | 35,00 | 102,00 | 129,00 | |
| 30000771 | WS208U | 40,00 | 114,30 | 144,00 | |
| 30000772 | WS209U | 45,00 | 117,00 | 144,00 | |
| 30000773 | WS210U | 50,00 | 117,00 | 149,00 | |
| 30000774 | WS211U | 55,00 | 146,00 | 171,00 | |
| 30000775 | WS212U | 60,00 | 146,00 | 194,00 | |
