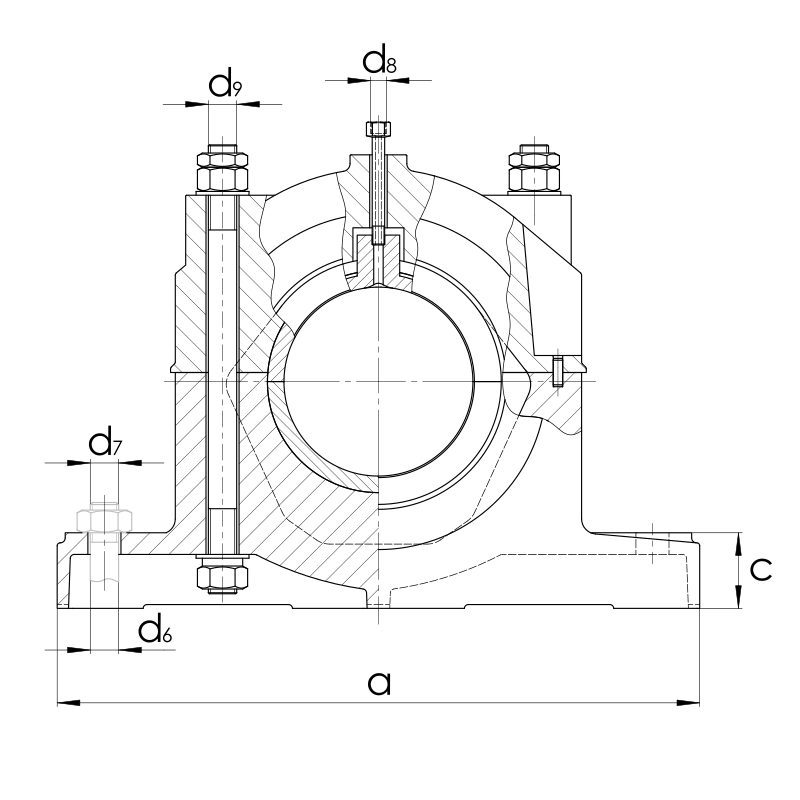

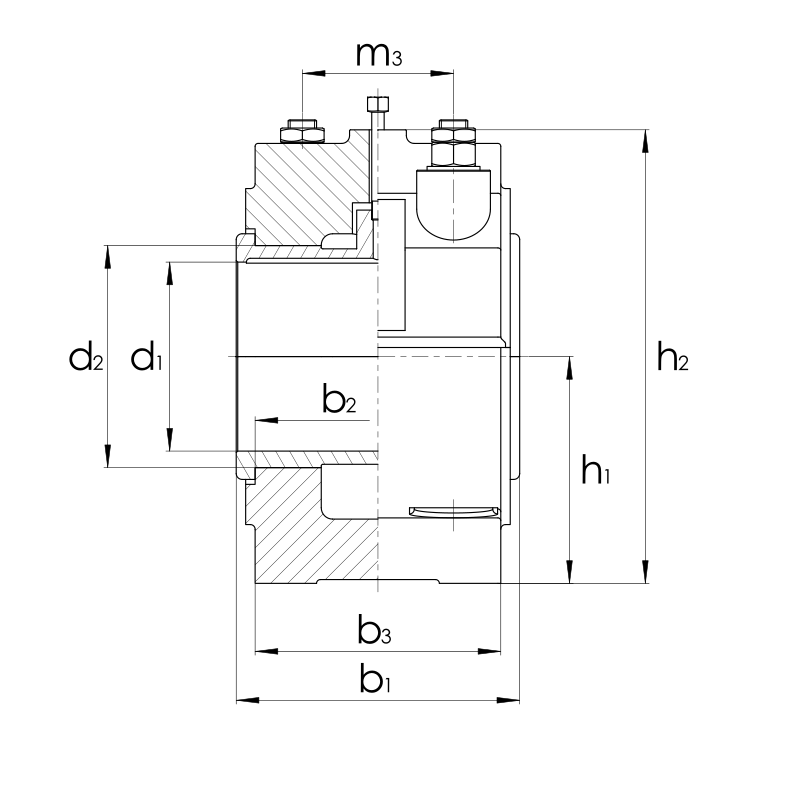

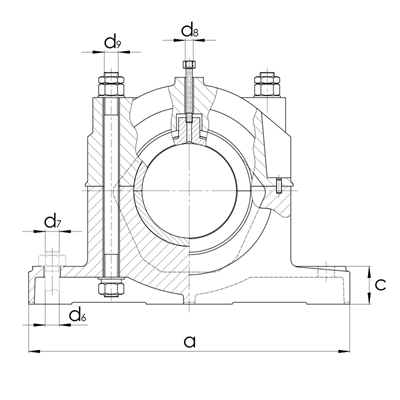

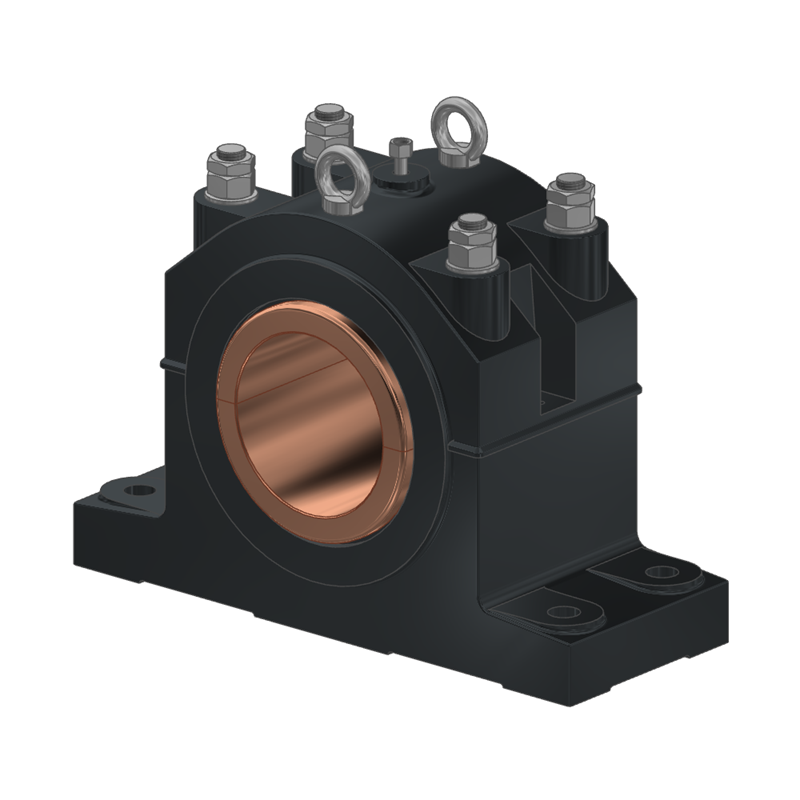

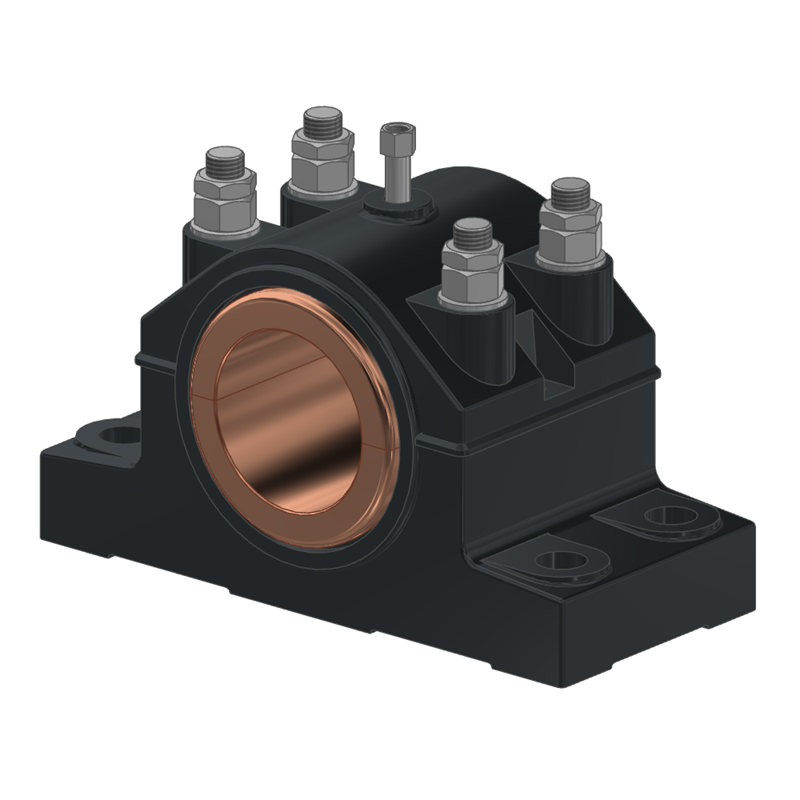

Gleitlagergehäuse DIN505 mit Buchse
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d1 | h2 | a | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d1 | h2 | a | |||
| mm | mm | mm | |||
| 10213229 | DIN506-A80 | 80,00 | 190,00 | 300,00 | |
| 10213230 | DIN506-A90 | 90,00 | 200,00 | 330,00 | |
| 10213231 | DIN506-A100 | 100,00 | 210,00 | 360,00 | |
| 10213232 | DIN506-A110 | 110,00 | 210,00 | 360,00 | |
| 10213233 | DIN506-A120 | 120,00 | 245,00 | 400,00 | |
| 10213234 | DIN506-A125 | 125,00 | 245,00 | 400,00 | |
| 10213235 | DIN506-A130 | 130,00 | 245,00 | 400,00 | |
| 10213236 | DIN506-A140 | 140,00 | 260,00 | 440,00 | |
| 10213237 | DIN506-A150 | 150,00 | 260,00 | 440,00 | |
| 10213238 | DIN506-A160 | 160,00 | 340,00 | 530,00 | |
| 10213376 | DIN506-A180 | 180,00 | 340,00 | 530,00 | |
| 10213377 | DIN506-A200 | 200,00 | 480,00 | 680,00 | |
| 10213378 | DIN506-A220 | 220,00 | 480,00 | 680,00 | |
| 10213379 | DIN506-A240 | 240,00 | 515,00 | 750,00 | |
| 10318223 | DIN506-A260 | 260,00 | 515,00 | 750,00 | |
| 10213380 | DIN506-A280 | 280,00 | 610,00 | 850,00 | |
| 10213381 | DIN506-A300 | 300,00 | 610,00 | 850,00 | |
