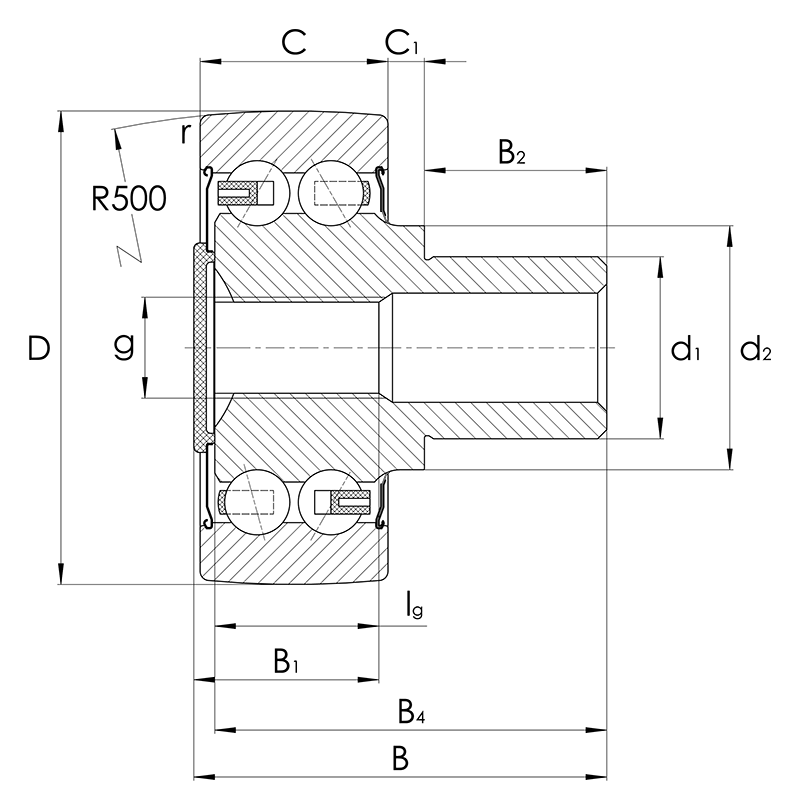

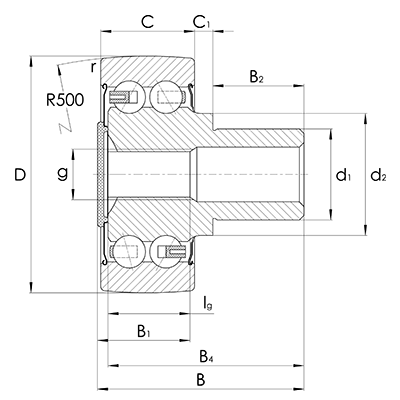

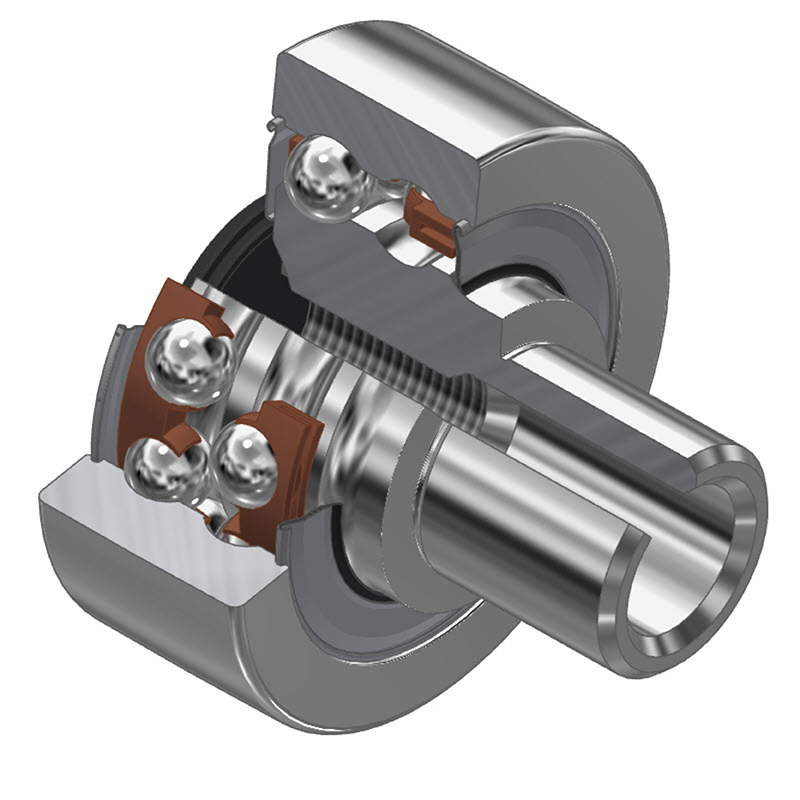

Stud type track roller ZL52..-DRS, double-row, outer surface (bearing) spherical
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | C | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | C | B | |||
| mm | mm | mm | |||
| 10213357 | ZL5201-DRS | 35.00 | 15.90 | 33.20 | |
| 10213358 | ZL5202-DRS | 40.00 | 15.90 | 36.20 | |
| 10213359 | ZL5203-DRS | 47.00 | 17.50 | 39.50 | |
| 10146095 | ZL5204-DRS | 52.00 | 20.60 | 45.30 | |
| 10213360 | ZL5205-DRS | 62.00 | 20.60 | 50.40 | |
| 10213361 | ZL5206-DRS | 72.00 | 23.80 | 59.00 | |
| 10213362 | ZL5207-DRS | 80.00 | 27.00 | 69.20 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
Please keep in mind that the maximum possible speed of the rollers can be affected by the following factors. These are:
- permissible operating temperature for rollers
- Type of bearing (deep groove ball bearing or angular contact ball bearing)
- Burden
- Lubrication conditions
- Cooling conditions
- used seal
The specified limit speeds serve as a guide value for optimum operating conditions, taking all factors into consideration.
