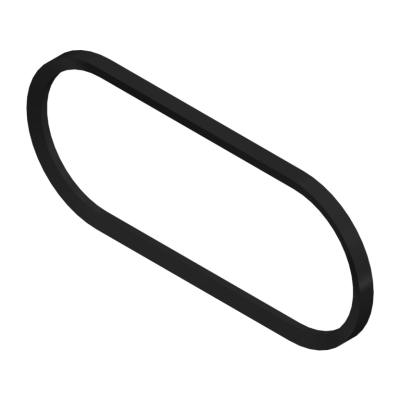

Keilriemen SPC

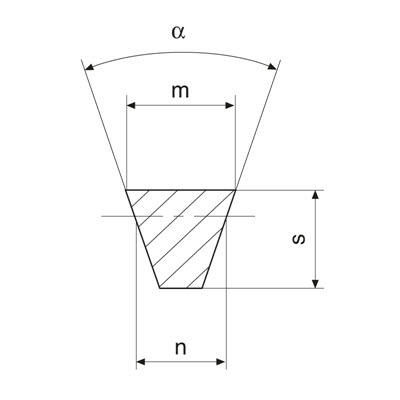

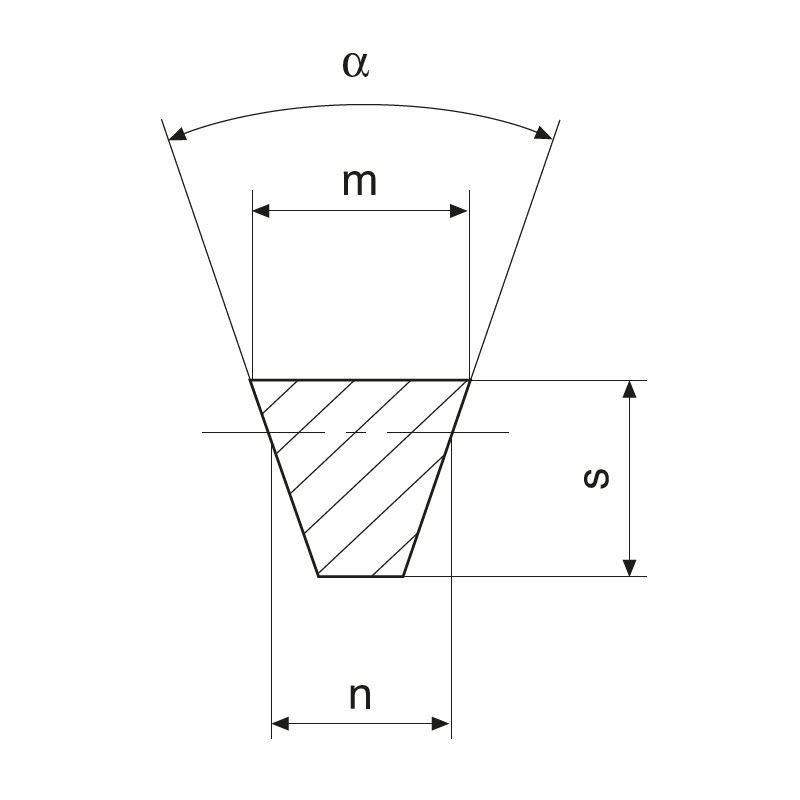

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| m | Lw | La | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| m | Lw | La | |||
| mm | mm | mm | |||
| 10001156 | SPC-08500 | 22,00 | 8.500,00 | 8.530,00 | |
| 10001148 | SPC-05300 | 22,00 | 5.300,00 | 5.330,00 | |
| 10001149 | SPC-05600 | 22,00 | 5.600,00 | 5.630,00 | |
| 10001150 | SPC-06000 | 22,00 | 6.000,00 | 6.030,00 | |
| 10001151 | SPC-06300 | 22,00 | 6.300,00 | 6.330,00 | |
| 10001152 | SPC-06700 | 22,00 | 6.700,00 | 6.730,00 | |
| 10001153 | SPC-07100 | 22,00 | 7.100,00 | 7.130,00 | |
| 10001154 | SPC-07500 | 22,00 | 7.500,00 | 7.530,00 | |
| 10001155 | SPC-08000 | 22,00 | 8.000,00 | 8.030,00 | |
| 10001147 | SPC-05000 | 22,00 | 5.000,00 | 5.030,00 | |
| 10001157 | SPC-09000 | 22,00 | 9.000,00 | 9.030,00 | |
| 10001158 | SPC-09500 | 22,00 | 9.500,00 | 9.530,00 | |
| 10001159 | SPC-10000 | 22,00 | 10.000,00 | 10.030,00 | |
| 10001160 | SPC-10600 | 22,00 | 10.600,00 | 10.630,00 | |
| 10001161 | SPC-11200 | 22,00 | 11.200,00 | 11.230,00 | |
| 10001162 | SPC-11800 | 22,00 | 11.800,00 | 11.830,00 | |
| 10001163 | SPC-12500 | 22,00 | 12.500,00 | 12.530,00 | |
| 10001139 | SPC-03350 | 22,00 | 3.350,00 | 3.380,00 | |
| 10001131 | SPC-02120 | 22,00 | 2.120,00 | 2.150,00 | |
| 10001132 | SPC-02240 | 22,00 | 2.240,00 | 2.270,00 | |
| 10001133 | SPC-02360 | 22,00 | 2.360,00 | 2.390,00 | |
| 10001134 | SPC-02500 | 22,00 | 2.500,00 | 2.530,00 | |
| 10001135 | SPC-02650 | 22,00 | 2.650,00 | 2.680,00 | |
| 10001136 | SPC-02800 | 22,00 | 2.800,00 | 2.830,00 | |
| 10001137 | SPC-03000 | 22,00 | 3.000,00 | 3.030,00 | |
| 10001138 | SPC-03150 | 22,00 | 3.150,00 | 3.180,00 | |
| 10001130 | SPC-02000 | 22,00 | 2.000,00 | 2.030,00 | |
| 10001140 | SPC-03460 | 22,00 | 3.460,00 | 3.490,00 | |
| 10001141 | SPC-03550 | 22,00 | 3.550,00 | 3.580,00 | |
| 10001142 | SPC-03750 | 22,00 | 3.750,00 | 3.780,00 | |
| 10001143 | SPC-04000 | 22,00 | 4.000,00 | 4.030,00 | |
| 10001144 | SPC-04250 | 22,00 | 4.250,00 | 4.280,00 | |
| 10001145 | SPC-04500 | 22,00 | 4.500,00 | 4.580,00 | |
| 10001146 | SPC-04750 | 22,00 | 4.750,00 | 4.780,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
