HCB719

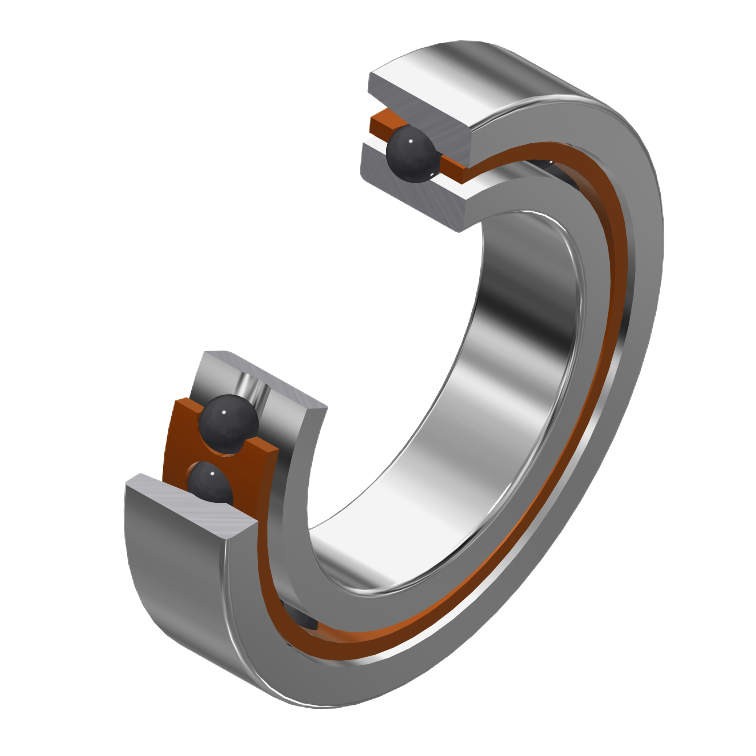

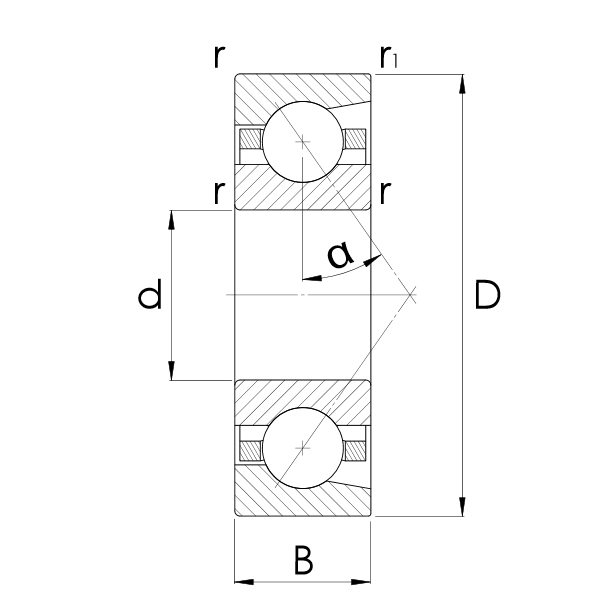

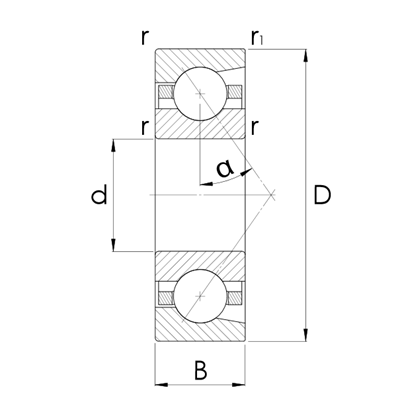

Hybrid spindel bearing HCB719 - light series
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10042732 HCB71900-E-T-P4S-UL 10.00 22.00 6.00 10042731 HCB71900-C-T-P4S-UL 10.00 22.00 6.00 10042734 HCB71901-E-T-P4S-UL 12.00 24.00 6.00 10042733 HCB71901-C-T-P4S-UL 12.00 24.00 6.00 10042735 HCB71902-C-T-P4S-UL 15.00 28.00 7.00 10042736 HCB71902-E-T-P4S-UL 15.00 28.00 7.00 10042737 HCB71903-C-T-P4S-UL 17.00 30.00 7.00 10042738 HCB71903-E-T-P4S-UL 17.00 30.00 7.00 10042739 HCB71904-C-T-P4S-UL 20.00 37.00 9.00 10042740 HCB71904-E-T-P4S-UL 20.00 37.00 9.00 10042741 HCB71905-C-T-P4S-UL 25.00 42.00 9.00 10042742 HCB71905-E-T-P4S-UL 25.00 42.00 9.00 10042743 HCB71906-C-T-P4S-UL 30.00 47.00 9.00 10042744 HCB71906-E-T-P4S-UL 30.00 47.00 9.00 10042745 HCB71907-C-T-P4S-UL 35.00 55.00 10.00 10042746 HCB71907-E-T-P4S-UL 35.00 55.00 10.00 10042748 HCB71908-E-T-P4S-UL 40.00 62.00 12.00 10042747 HCB71908-C-T-P4S-UL 40.00 62.00 12.00 10042749 HCB71909-E-T-P4S-UL 45.00 68.00 12.00 10042750 HCB71909-C-T-P4S-UL 45.00 68.00 12.00 10042751 HCB71910-C-T-P4S-UL 50.00 72.00 12.00 10042752 HCB71910-E-T-P4S-UL 50.00 72.00 12.00 10042753 HCB71911-C-T-P4S-UL 55.00 80.00 13.00 10042754 HCB71911-E-T-P4S-UL 55.00 80.00 13.00 10042755 HCB71912-C-T-P4S-UL 60.00 85.00 13.00 10042756 HCB71912-E-T-P4S-UL 60.00 85.00 13.00 10042757 HCB71913-C-T-P4S-UL 65.00 90.00 13.00 10042758 HCB71913-E-T-P4S-UL 65.00 90.00 13.00 10042759 HCB71914-C-T-P4S-UL 70.00 100.00 16.00 10042760 HCB71914-E-T-P4S-UL 70.00 100.00 16.00 10042761 HCB71915-C-T-P4S-UL 75.00 105.00 16.00 10042762 HCB71915-E-T-P4S-UL 75.00 105.00 16.00 10042764 HCB71916-E-T-P4S-UL 80.00 110.00 16.00 10042763 HCB71916-C-T-P4S-UL 80.00 110.00 16.00 10042765 HCB71917-C-T-P4S-UL 85.00 120.00 18.00 10042766 HCB71917-E-T-P4S-UL 85.00 120.00 18.00 10042767 HCB71918-C-T-P4S-UL 90.00 125.00 18.00 10042768 HCB71918-E-T-P4S-UL 90.00 125.00 18.00 10042769 HCB71919-C-T-P4S-UL 95.00 130.00 18.00 10042770 HCB71919-E-T-P4S-UL 95.00 130.00 18.00 10042771 HCB71920-C-T-P4S-UL 100.00 140.00 20.00 10042772 HCB71920-E-T-P4S-UL 100.00 140.00 20.00 10042773 HCB71921-C-T-P4S-UL 105.00 145.00 20.00 10042774 HCB71921-E-T-P4S-UL 105.00 145.00 20.00 10042775 HCB71922-C-T-P4S-UL 110.00 150.00 20.00 10042776 HCB71922-E-T-P4S-UL 110.00 150.00 20.00 10042777 HCB71924-C-T-P4S-UL 120.00 165.00 22.00 10042778 HCB71924-E-T-P4S-UL 120.00 165.00 22.00 10042780 HCB71926-E-T-P4S-UL 130.00 180.00 24.00 10042779 HCB71926-C-T-P4S-UL 130.00 180.00 24.00 10042781 HCB71928-C-T-P4S-UL 140.00 190.00 24.00 10042782 HCB71928-E-T-P4S-UL 140.00 190.00 24.00 10426668 HCB71930-C-T-P4S-UL 150.00 210.00 28.00 10426698 HCB71930-E-T-P4S-UL 150.00 210.00 28.00 10426713 HCB71932-C-T-P4S-UL 160.00 220.00 28.00 10426728 HCB71932-E-T-P4S-UL 160.00 220.00 28.00 10426788 HCB71934-E-T-P4S-UL 170.00 230.00 28.00 10426758 HCB71934-C-T-P4S-UL 170.00 230.00 28.00 10426818 HCB71936-C-T-P4S-UL 180.00 250.00 33.00 10426848 HCB71936-E-T-P4S-UL 180.00 250.00 33.00 10426878 HCB71938-C-T-P4S-UL 190.00 260.00 33.00 10426908 HCB71938-E-T-P4S-UL 190.00 260.00 33.00 10426938 HCB71940-C-T-P4S-UL 200.00 280.00 38.00 10426968 HCB71940-E-T-P4S-UL 200.00 280.00 38.00 10426998 HCB71944-C-T-P4S-UL 220.00 300.00 38.00 10427028 HCB71944-E-T-P4S-UL 220.00 300.00 38.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
HCB719-2RSD

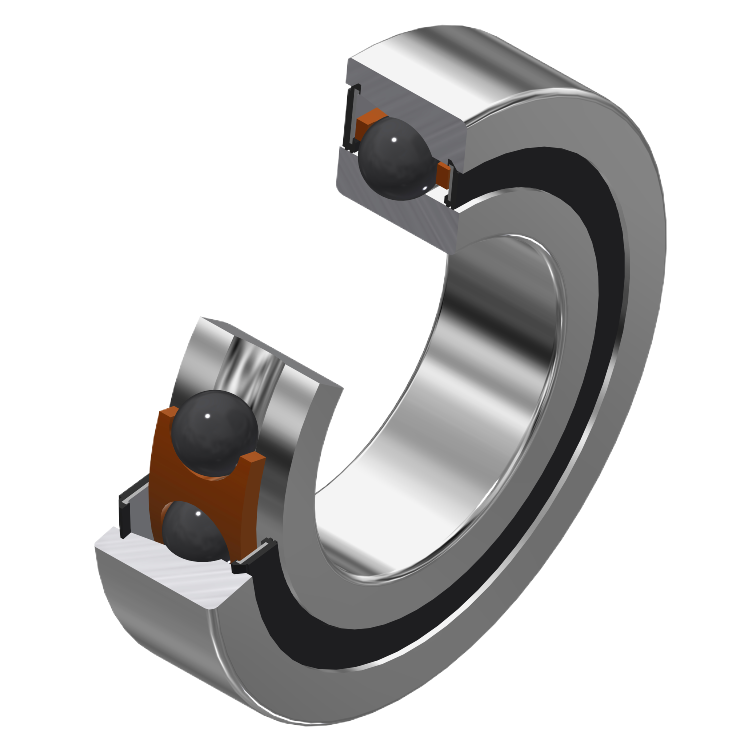

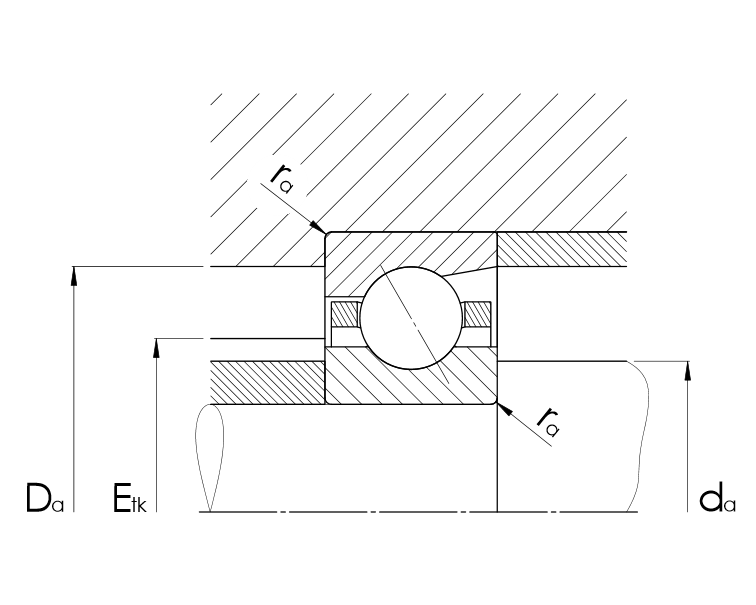

Hybrid spindle bearing HCB719-2RSD - light series
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10424694 HCB71900-E-2RSD-T-P4S-UL 10.00 22.00 6.00 10424665 HCB71900-C-2RSD-T-P4S-UL 10.00 22.00 6.00 10424752 HCB71901-E-2RSD-T-P4S-UL 12.00 24.00 6.00 10424723 HCB71901-C-2RSD-T-P4S-UL 12.00 24.00 6.00 10424781 HCB71902-C-2RSD-T-P4S-UL 15.00 28.00 7.00 10424810 HCB71902-E-2RSD-T-P4S-UL 15.00 28.00 7.00 10424839 HCB71903-C-2RSD-T-P4S-UL 17.00 30.00 7.00 10424868 HCB71903-E-2RSD-T-P4S-UL 17.00 30.00 7.00 10424897 HCB71904-C-2RSD-T-P4S-UL 20.00 37.00 9.00 10424926 HCB71904-E-2RSD-T-P4S-UL 20.00 37.00 9.00 10424955 HCB71905-C-2RSD-T-P4S-UL 25.00 42.00 9.00 10424984 HCB71905-E-2RSD-T-P4S-UL 25.00 42.00 9.00 10425013 HCB71906-C-2RSD-T-P4S-UL 30.00 47.00 9.00 10425057 HCB71906-E-2RSD-T-P4S-UL 30.00 47.00 9.00 10425101 HCB71907-C-2RSD-T-P4S-UL 35.00 55.00 10.00 10425145 HCB71907-E-2RSD-T-P4S-UL 35.00 55.00 10.00 10425189 HCB71908-C-2RSD-T-P4S-UL 40.00 62.00 12.00 10425233 HCB71908-E-2RSD-T-P4S-UL 40.00 62.00 12.00 10425277 HCB71909-C-2RSD-T-P4S-UL 45.00 68.00 12.00 10425321 HCB71909-E-2RSD-T-P4S-UL 45.00 68.00 12.00 10425365 HCB71910-C-2RSD-T-P4S-UL 50.00 72.00 12.00 10425409 HCB71910-E-2RSD-T-P4S-UL 50.00 72.00 12.00 10425453 HCB71911-C-2RSD-T-P4S-UL 55.00 80.00 13.00 10425497 HCB71911-E-2RSD-T-P4S-UL 55.00 80.00 13.00 10425541 HCB71912-C-2RSD-T-P4S-UL 60.00 85.00 13.00 10425585 HCB71912-E-2RSD-T-P4S-UL 60.00 85.00 13.00 10425629 HCB71913-C-2RSD-T-P4S-UL 65.00 90.00 13.00 10425673 HCB71913-E-2RSD-T-P4S-UL 65.00 90.00 13.00 10425717 HCB71914-C-2RSD-T-P4S-UL 70.00 100.00 16.00 10425761 HCB71914-E-2RSD-T-P4S-UL 70.00 100.00 16.00 10425849 HCB71915-E-2RSD-T-P4S-UL 75.00 105.00 16.00 10425805 HCB71915-C-2RSD-T-P4S-UL 75.00 105.00 16.00 10425893 HCB71916-C-2RSD-T-P4S-UL 80.00 110.00 16.00 10425937 HCB71916-E-2RSD-T-P4S-UL 80.00 110.00 16.00 10425981 HCB71917-C-2RSD-T-P4S-UL 85.00 120.00 18.00 10426025 HCB71917-E-2RSD-T-P4S-UL 85.00 120.00 18.00 10426069 HCB71918-C-2RSD-T-P4S-UL 90.00 125.00 18.00 10426113 HCB71918-E-2RSD-T-P4S-UL 90.00 125.00 18.00 10426157 HCB71919-C-2RSD-T-P4S-UL 95.00 130.00 18.00 10426201 HCB71919-E-2RSD-T-P4S-UL 95.00 130.00 18.00 10426245 HCB71920-C-2RSD-T-P4S-UL 100.00 140.00 20.00 10426289 HCB71920-E-2RSD-T-P4S-UL 100.00 140.00 20.00 10426333 HCB71921-C-2RSD-T-P4S-UL 105.00 145.00 20.00 10426377 HCB71921-E-2RSD-T-P4S-UL 105.00 145.00 20.00 10426421 HCB71922-C-2RSD-T-P4S-UL 110.00 150.00 20.00 10426465 HCB71922-E-2RSD-T-P4S-UL 110.00 150.00 20.00 10426509 HCB71924-C-2RSD-T-P4S-UL 120.00 165.00 22.00 10426538 HCB71924-E-2RSD-T-P4S-UL 120.00 165.00 22.00 10426567 HCB71926-C-2RSD-T-P4S-UL 130.00 180.00 24.00 10426596 HCB71926-E-2RSD-T-P4S-UL 130.00 180.00 24.00 10426653 HCB71930-C-2RSD-T-P4S-UL 150.00 210.00 28.00 10426683 HCB71930-E-2RSD-T-P4S-UL 150.00 210.00 28.00 10426743 HCB71934-C-2RSD-T-P4S-UL 170.00 230.00 28.00 10426773 HCB71934-E-2RSD-T-P4S-UL 170.00 230.00 28.00 10426803 HCB71936-C-2RSD-T-P4S-UL 180.00 250.00 33.00 10426833 HCB71936-E-2RSD-T-P4S-UL 180.00 250.00 33.00 10426863 HCB71938-C-2RSD-T-P4S-UL 190.00 260.00 33.00 10426893 HCB71938-E-2RSD-T-P4S-UL 190.00 260.00 33.00 10426923 HCB71940-C-2RSD-T-P4S-UL 200.00 280.00 38.00 10426953 HCB71940-E-2RSD-T-P4S-UL 200.00 280.00 38.00 10426983 HCB71944-C-2RSD-T-P4S-UL 220.00 300.00 38.00 10427013 HCB71944-E-2RSD-T-P4S-UL 220.00 300.00 38.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
Please note that the spindle bearings listed above only represent the smallest basic variant of many. Further variants are available in the online data sheet in the "Variants" tab. Please also note our technical information in the Prouctdescription
