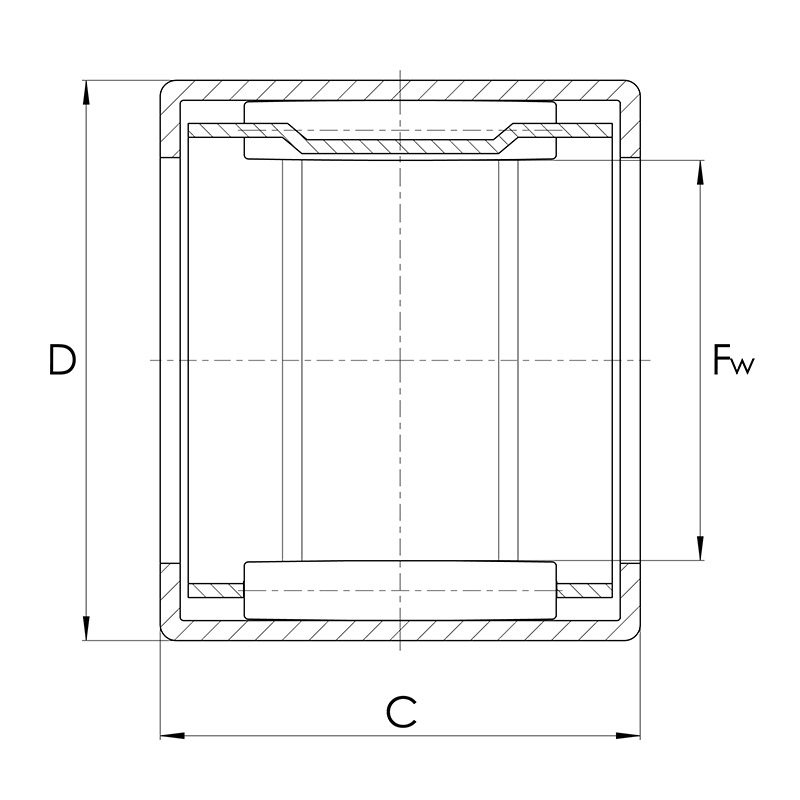

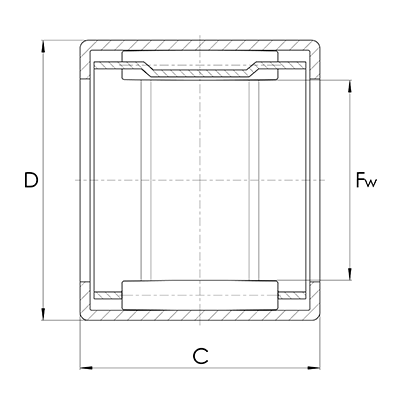

Nadelhülse SCE, ohne Dichtung
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10323915 SCE2-1/2-4 3,97 7,15 6,35 10147743 SCE36 4,76 8,73 9,53 10147744 SCE44 6,35 11,11 6,35 10147745 SCE45 6,35 11,11 7,94 10147746 SCE47 6,35 11,11 11,11 10147747 SCE55 7,94 12,70 7,94 10147748 SCE57 7,94 12,70 11,11 10147749 SCE59 7,94 12,70 14,29 10147750 SCE65 9,53 14,29 7,94 10147751 SCE66 9,53 14,29 9,53 10147752 SCE67 9,53 14,29 11,11 10147753 SCE68 9,53 14,29 12,70 10147754 SCE610 9,53 14,29 15,88 10147756 SCE710 11,11 15,88 15,88 10147755 SCE78 11,11 15,88 12,70 10147757 SCE85 12,70 17,46 7,94 10147758 SCE86 12,70 17,46 9,53 10147759 SCE87 12,70 17,46 11,11 10147760 SCE88 12,70 17,46 12,70 10147761 SCE810 12,70 17,46 15,88 10147762 SCE812 12,70 17,46 19,05 10323936 SCE95 14,29 19,05 7,94 10323937 SCE97 14,29 19,05 11,13 10147766 SCE912 14,29 19,05 19,05 10147763 SCE96 14,29 19,05 9,53 10147764 SCE98 14,29 19,05 12,70 10147765 SCE910 14,29 19,05 15,88 10147767 SCE105 15,88 20,64 7,94 10323900 SCE107-1/2 15,88 20,64 11,91 10147768 SCE107 15,88 20,64 11,11 10147770 SCE108 15,88 20,64 12,70 10147771 SCE1010 15,88 20,64 15,88 10147772 SCE1012 15,88 20,64 19,05 10147774 SCE118 17,46 22,23 12,70 10147773 SCE116 17,46 22,23 9,53 10147775 SCE1110 17,46 22,23 15,88 10147776 SCE1112 17,46 22,23 19,05 10147779 SCE1210 19,05 25,40 15,88 10147777 SCE126 19,05 25,40 9,53 10147778 SCE128 19,05 25,40 12,70 10147780 SCE1212 19,05 25,40 19,05 10147781 SCE138 20,64 26,99 12,70 10323906 SCE136 20,64 26,99 9,53 10323905 SCE1312 20,64 26,99 19,05 10147782 SCE1314 20,64 26,99 22,23 10147784 SCE148 22,23 28,58 12,70 10147783 SCE146 22,23 28,58 9,53 10147785 SCE1412 22,23 28,58 19,05 10147786 SCE1416 22,23 28,58 25,40 10323909 SCE1516 23,81 30,16 25,40 10147790 SCE1616 25,40 31,75 25,40 10147787 SCE166 25,40 31,75 9,53 10147788 SCE168 25,40 31,75 12,70 10147789 SCE1612 25,40 31,75 19,05 10147791 SCE188 28,58 34,93 12,70 10323911 SCE186 28,58 34,93 9,53 10147792 SCE1812 28,58 34,93 19,05 10147793 SCE1816 28,58 34,93 25,40 10323912 SCE1916 30,16 38,10 25,40 10147794 SCE208 31,75 38,10 12,70 10147795 SCE2010 31,75 38,10 15,88 10147796 SCE2012 31,75 38,10 19,05 10147797 SCE2016 31,75 38,10 25,40 10147798 SCE2020 31,75 38,10 31,75 10147799 SCE2110 33,34 41,28 15,88 10147801 SCE2212 34,93 41,28 19,05 10147800 SCE228 34,93 41,28 12,70 10147802 SCE2216 34,93 41,28 25,40 10147803 SCE2220 34,93 41,28 31,75 10147808 SCE2416 38,10 47,63 25,40 10147804 SCE248 38,10 47,63 12,70 10147805 SCE2410 38,10 47,63 15,88 10147806 SCE2412 38,10 47,63 19,05 10147807 SCE2414 38,10 47,63 22,23 10147809 SCE2420 38,10 47,63 31,75 10147811 SCE2620 41,28 50,80 31,75 10147810 SCE2610 41,28 50,80 15,88 10147812 SCE2816 44,45 53,98 25,40 10323919 SCE2820 44,45 53,98 31,75 10323918 SCE2812 44,45 53,98 19,05 10147813 SCE2824 44,45 53,98 38,10 10147814 SCE328 50,80 60,33 12,70 10323920 SCE3220 50,80 60,33 31,75 10147815 SCE3210 50,80 60,33 15,88 10147816 SCE3216 50,80 60,33 25,40 10147817 SCE348 53,98 63,50 12,70 10147818 SCE3410 53,98 63,50 15,88 10323921 SCE3416 53,98 63,50 25,40 10147819 SCE3612 57,15 66,68 19,05 10147820 SCE3616 57,15 66,68 25,40 10147821 SCE4412 69,85 79,38 19,05 10323925 SCE5612 88,90 101,60 19,05 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
SCE..-P
Nadelhülse SCE..-P
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10174505 SCE45-P 6,35 11,11 7,94 10174506 SCE46-P 6,35 11,11 9,53 10147876 SCE48-P 6,35 11,11 12,70 10174507 SCE56-P 7,94 12,70 9,53 10174508 SCE58-P 7,94 12,70 12,70 10174509 SCE66-P 9,53 14,29 9,53 10174510 SCE69-P 9,53 14,29 14,29 10174511 SCE86-P 12,70 17,46 9,53 10174512 SCE89-P 12,70 17,46 14,29 10323938 SCE99-P 14,29 19,05 14,29 10174514 SCE1011-P 15,88 20,64 17,46 10174513 SCE109-P 15,88 20,64 14,29 10174515 SCE129-P 19,05 25,40 14,29 10174516 SCE1211-P 19,05 25,40 17,46 10174517 SCE2012-P 31,75 38,10 19,05 10174519 SCE2414-P 38,10 47,63 22,23 10174520 SCE2416-P 38,10 47,63 25,40 10174521 SCE2422-P 38,10 47,63 34,92 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
SCE..-PP

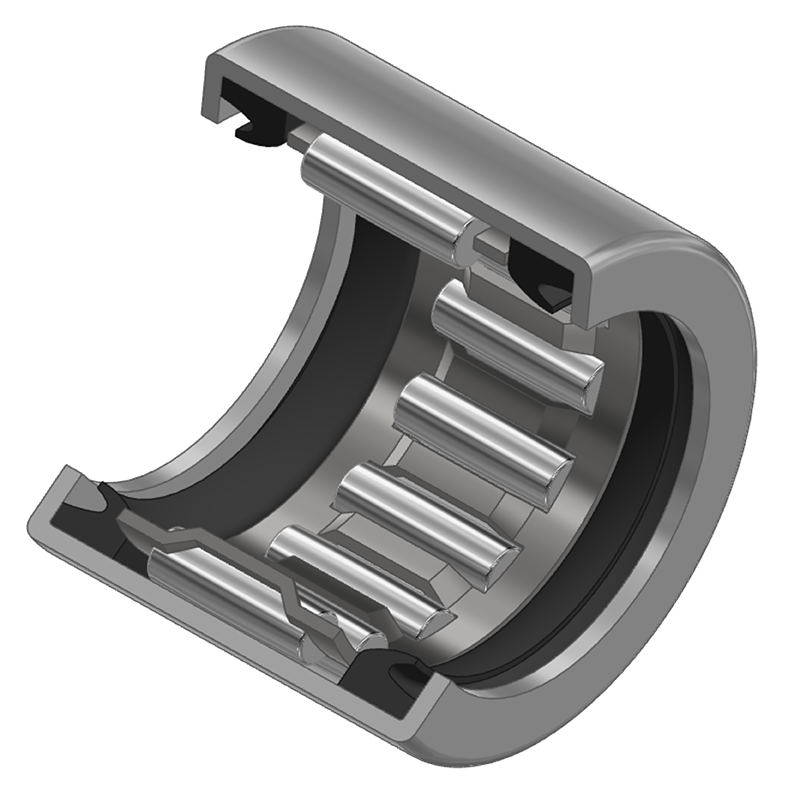

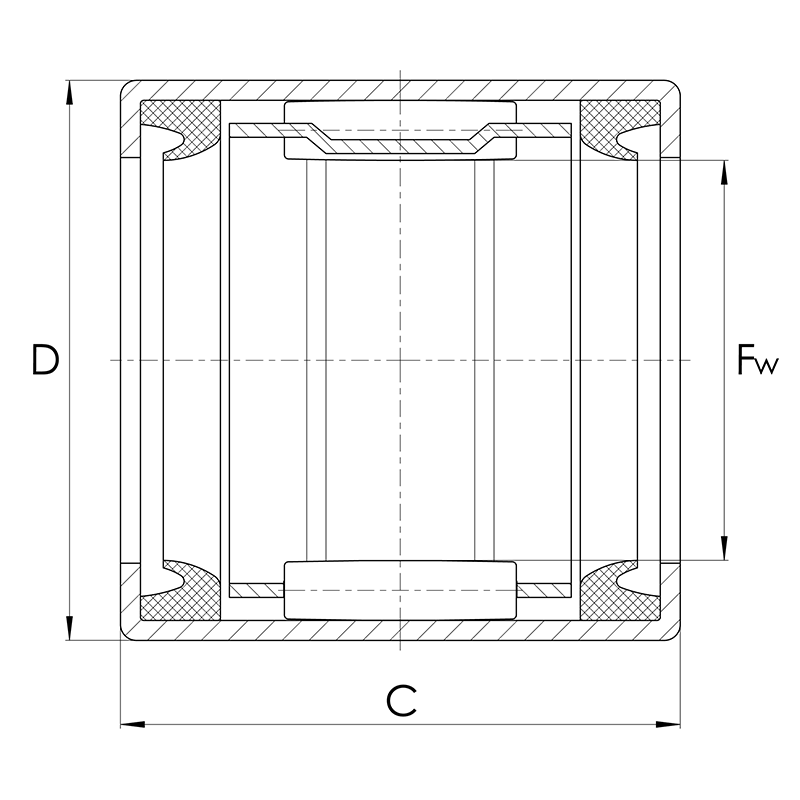

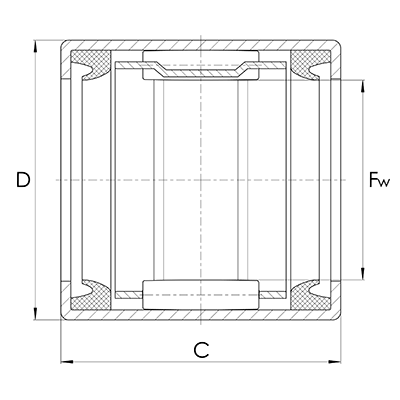

Nadelhülse SCE..-PP
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10174523 SCE47-PP 6,35 11,11 11,11 10174524 SCE49-PP 6,35 11,11 14,29 10174522 SCE46-PP 6,35 11,11 9,53 10174525 SCE57-PP 7,94 12,70 11,11 10174527 SCE67-PP 9,53 14,29 11,11 10174528 SCE68-PP 9,53 14,29 12,70 10174529 SCE610-PP 9,53 14,29 15,88 10174530 SCE87-PP 12,70 17,46 11,11 10174531 SCE810-PP 12,70 17,46 15,88 10174532 SCE812-PP 12,70 17,46 19,05 10174534 SCE912-PP 14,29 19,05 19,05 10174533 SCE910-PP 14,29 19,05 15,88 10174535 SCE1010-PP 15,88 20,64 15,88 10174536 SCE1012-PP 15,88 20,64 19,05 10174537 SCE1014-PP 15,88 20,64 22,23 10174538 SCE128-PP 19,05 25,40 11,11 10174539 SCE1210-PP 19,05 25,40 15,88 10174540 SCE1212-PP 19,05 25,40 19,05 10174541 SCE148-PP 22,23 28,58 12,70 10174542 SCE1414-PP 22,23 28,58 22,23 10174543 SCE1616-PP 25,40 31,75 25,40 10323913 SCE2014-PR 31,75 38,10 22,23 10174544 SCE2424-PP 38,10 47,63 38,10 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
