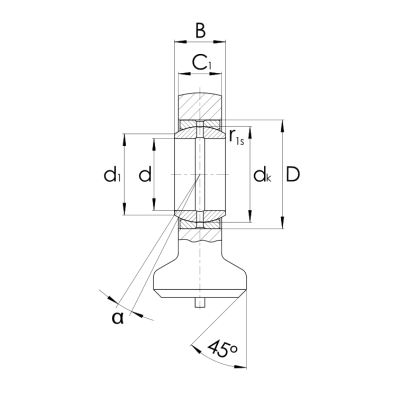

Hydraulik-Gelenkkopf GK..DO, massive Ausführung mit rechteckigem Anschweißende, für Hydraulik-Zylinderböden
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10040668 | GK10-DO | 10,00 | 19,00 | 9,00 | |
| 10040669 | GK12-DO | 12,00 | 22,00 | 10,00 | |
| 10040670 | GK15-DO | 15,00 | 26,00 | 12,00 | |
| 10040671 | GK17-DO | 17,00 | 30,00 | 14,00 | |
| 10040672 | GK20-DO | 20,00 | 35,00 | 16,00 | |
| 10040673 | GK25-DO | 25,00 | 42,00 | 20,00 | |
| 10040674 | GK30-DO | 30,00 | 47,00 | 22,00 | |
| 10040675 | GK35-DO | 35,00 | 55,00 | 25,00 | |
| 10040676 | GK40-DO | 40,00 | 62,00 | 28,00 | |
| 10040677 | GK45-DO | 45,00 | 68,00 | 32,00 | |
| 10040678 | GK50-DO | 50,00 | 75,00 | 35,00 | |
| 10040679 | GK60-DO | 60,00 | 90,00 | 44,00 | |
| 10040680 | GK70-DO | 70,00 | 105,00 | 49,00 | |
| 10040681 | GK80-DO | 80,00 | 120,00 | 55,00 | |
