  • GIKR-PW

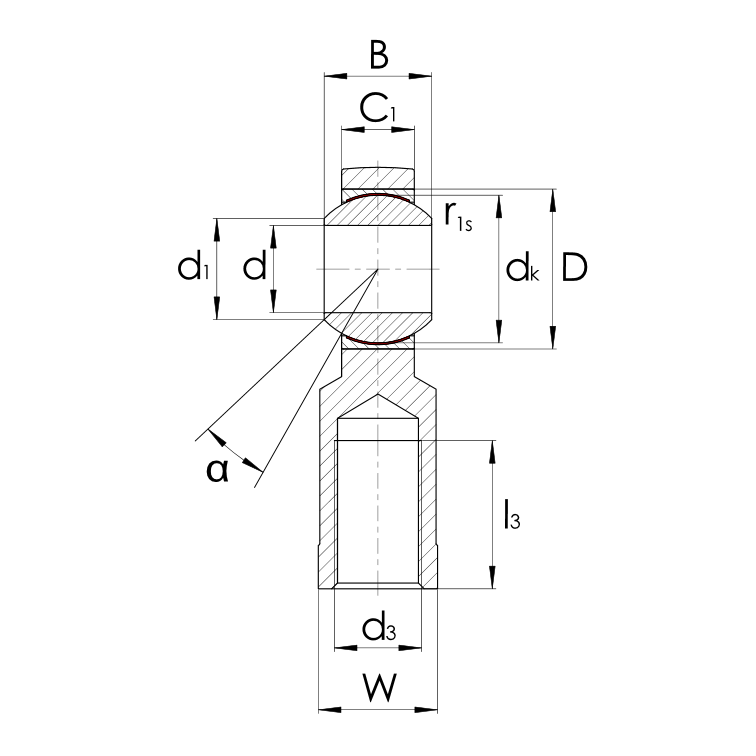

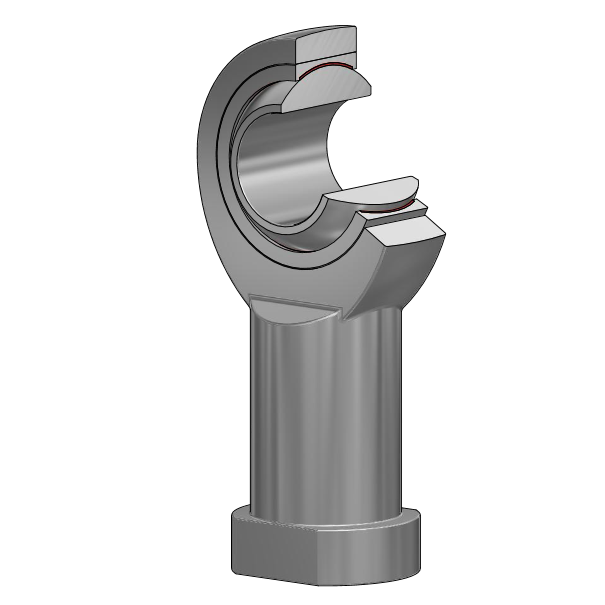

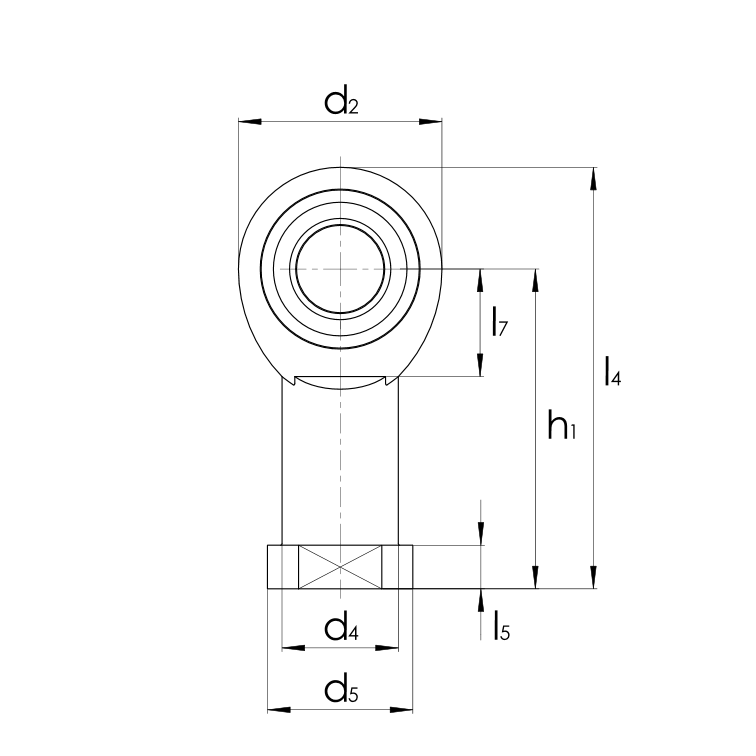

    Radial-Gelenkkopf GIKR..PW / GIKL..PW nach DIN ISO 12240-4

    • Radial-Gelenkkopf GIKR..PW
      Radial-Gelenkkopf GIKR..PW
    • Radial-Gelenkkopf GIKR..PW
      Radial-Gelenkkopf GIKR..PW
    • Radial-Gelenkkopf GIKR..PW
      Radial-Gelenkkopf GIKR..PW
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10041424 GIKR5-PW 5,00 13,00 8,00
      10210046 GIKFR5-PW 5,00 13,00 8,00
      10041426 GIKR6-PW 6,00 16,00 9,00
      10041428 GIKR8-PW 8,00 19,00 12,00
      10041406 GIKR10-PW 10,00 22,00 14,00
      10210047 GIKFR10-PW 10,00 22,00 14,00
      10041408 GIKR12-PW 12,00 26,00 16,00
      10128501 GIKFR12-PW 12,00 26,00 16,00
      10041410 GIKR14-PW 14,00 28,00 19,00
      10041412 GIKR16-PW 16,00 32,00 21,00
      10128168 GIKFR16-PW 16,00 32,00 21,00
      10041414 GIKR18-PW 18,00 35,00 23,00
      10041416 GIKR20-PW 20,00 40,00 25,00
      10041418 GIKR22-PW 22,00 42,00 28,00
      10041420 GIKR25-PW 25,00 47,00 31,00
      10210048 GIKFR30-PW 30,00 55,00 37,00
      10041422 GIKR30-PW 30,00 55,00 37,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GIKL-PW

      Radial-Gelenkkopf GIKR..PW / GIKL..PW nach DIN ISO 12240-4

      • Radial-Gelenkkopf GIKL..PW
        Radial-Gelenkkopf GIKL..PW
      • Radial-Gelenkkopf GIKL..PW
        Radial-Gelenkkopf GIKL..PW
      • Radial-Gelenkkopf GIKL..PW
        Radial-Gelenkkopf GIKL..PW
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10041395 GIKL5-PW 5,00 13,00 8,00
        10210052 GIKFL5-PW 5,00 13,00 8,00
        10041397 GIKL6-PW 6,00 16,00 9,00
        10041399 GIKL8-PW 8,00 19,00 12,00
        10041377 GIKL10-PW 10,00 22,00 14,00
        10210053 GIKFL10-PW 10,00 22,00 14,00
        10041379 GIKL12-PW 12,00 26,00 16,00
        10130466 GIKFL12-PW 12,00 26,00 16,00
        10041381 GIKL14-PW 14,00 28,00 19,00
        10041383 GIKL16-PW 16,00 32,00 21,00
        10128167 GIKFL16-PW 16,00 32,00 21,00
        10041385 GIKL18-PW 18,00 35,00 23,00
        10041387 GIKL20-PW 20,00 40,00 25,00
        10041389 GIKL22-PW 22,00 42,00 28,00
        10041391 GIKL25-PW 25,00 47,00 31,00
        10210054 GIKFL30-PW 30,00 55,00 37,00
        10041393 GIKL30-PW 30,00 55,00 37,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
