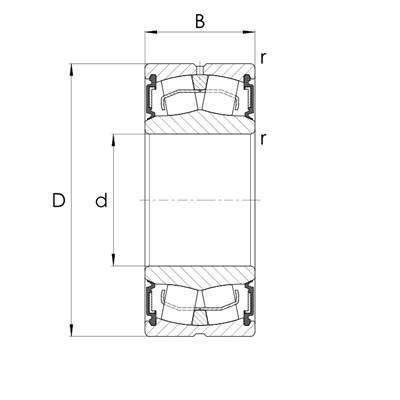

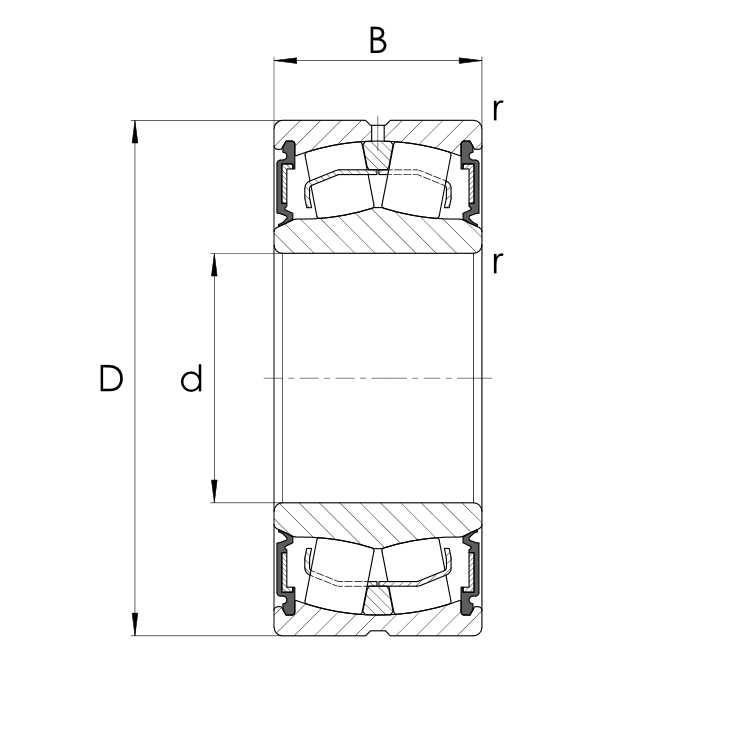

Sealed spherical roller bearing BS2-222-2RS-VT143, deviating from DIN 635-2, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147374 | BS2-2205-2RS/VT143 | 25.00 | 52.00 | 23.00 | |
| 10136488 | BS2-2206-2RS/VT143 | 30.00 | 62.00 | 25.00 | |
| 10074071 | BS2-2207-2RS/VT143 | 35.00 | 72.00 | 28.00 | |
| 10074073 | BS2-2208-2RS/VT143 | 40.00 | 80.00 | 28.00 | |
| 10136498 | BS2-2209-2RS/VT143 | 45.00 | 85.00 | 28.00 | |
| 10136500 | BS2-2210-2RS/VT143 | 50.00 | 90.00 | 28.00 | |
| 10074085 | BS2-2211-2RS/VT143 | 55.00 | 100.00 | 31.00 | |
| 10136504 | BS2-2212-2RS/VT143 | 60.00 | 110.00 | 34.00 | |
| 10136506 | BS2-2213-2RS/VT143 | 65.00 | 120.00 | 38.00 | |
| 10136508 | BS2-2214-2RS/VT143 | 70.00 | 125.00 | 38.00 | |
| 10136510 | BS2-2215-2RS/VT143 | 75.00 | 130.00 | 38.00 | |
| 10196517 | BS2-2216-2RS/VT143 | 80.00 | 140.00 | 40.00 | |
| 10136514 | BS2-2217-2RS/VT143 | 85.00 | 150.00 | 44.00 | |
| 10136516 | BS2-2218-2RS/VT143 | 90.00 | 160.00 | 48.00 | |
| 10361916 | BS2-2219-2RS5/VT143 | 95.00 | 170.00 | 51.00 | |
| 10361920 | BS2-2220-2RS5/VT143 | 100.00 | 180.00 | 55.00 | |
| 10361926 | BS2-2222-2RS5/VT143 | 110.00 | 200.00 | 63.00 | |
| 10361930 | BS2-2224-2RS5/VT143 | 120.00 | 215.00 | 69.00 | |
| 10361936 | BS2-2226-2RS5/VT143 | 130.00 | 230.00 | 75.00 | |
