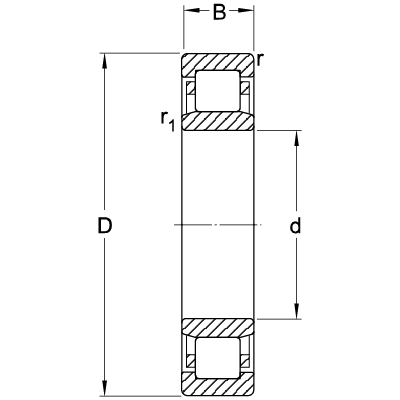

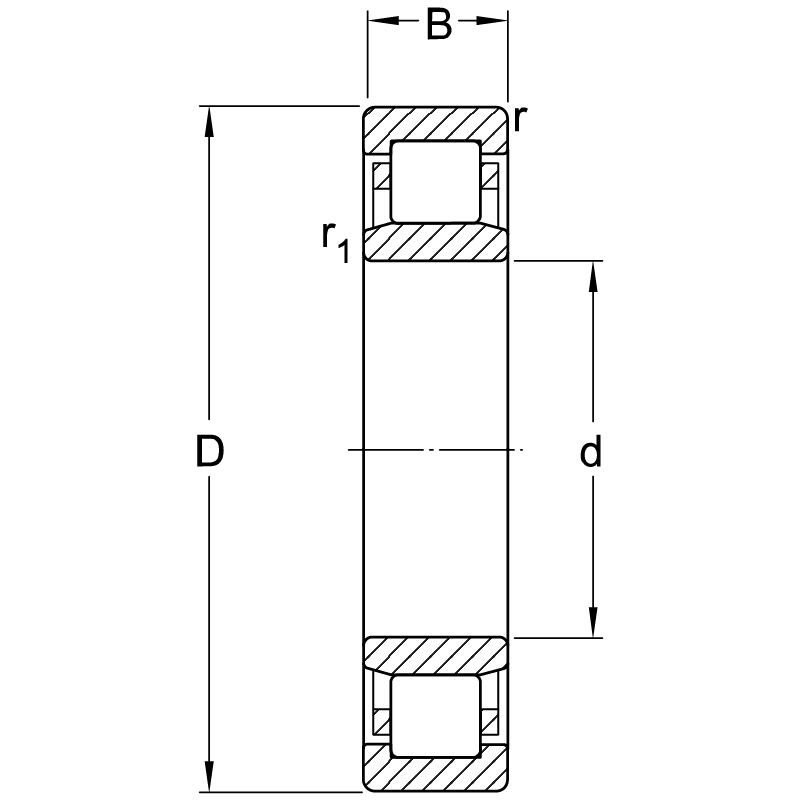

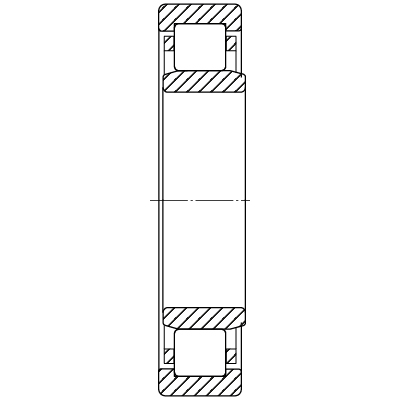

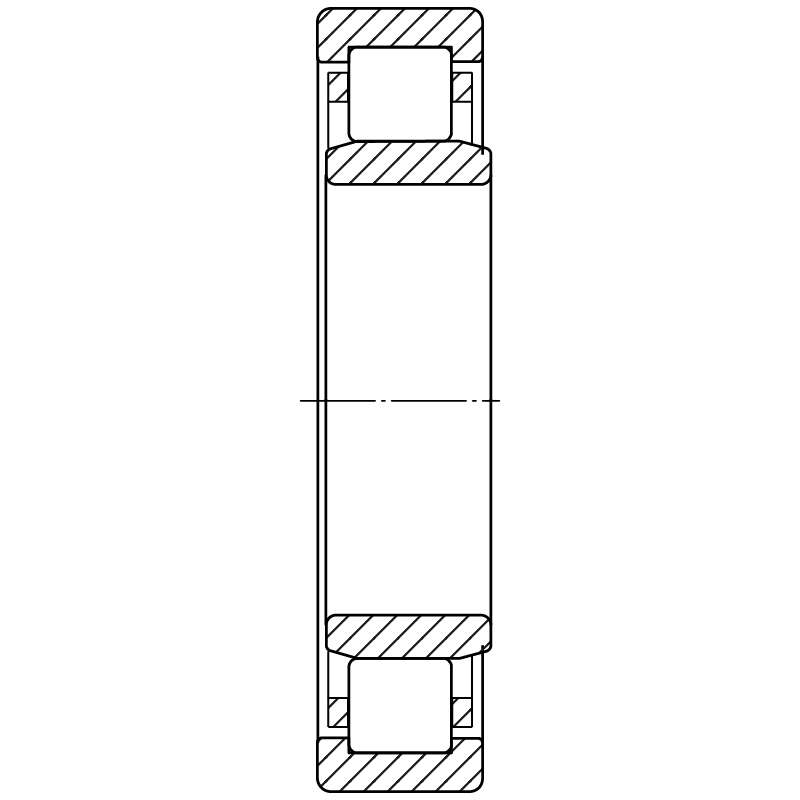

Cylindrical roller bearing NU DIN 5412-1, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10127090 | NU303-E | 17.00 | 47.00 | 14.00 | |
| 10126910 | NU2203-E | 17.00 | 40.00 | 16.00 | |
| 10126856 | NU203-E | 17.00 | 40.00 | 12.00 | |
| 10126859 | NU204-E | 20.00 | 47.00 | 14.00 | |
| 10127093 | NU304-E | 20.00 | 52.00 | 15.00 | |
| 10127006 | NU2304-E | 20.00 | 52.00 | 21.00 | |
| 10126913 | NU2204-E | 20.00 | 47.00 | 18.00 | |
| 10127096 | NU305-E | 25.00 | 62.00 | 17.00 | |
| 10127009 | NU2305-E | 25.00 | 62.00 | 24.00 | |
| 10126916 | NU2205-E | 25.00 | 52.00 | 18.00 | |
| 10126862 | NU205-E | 25.00 | 52.00 | 15.00 | |
| 10126865 | NU206-E | 30.00 | 62.00 | 16.00 | |
| 10127099 | NU306-E | 30.00 | 72.00 | 19.00 | |
| 10127012 | NU2306-E | 30.00 | 72.00 | 27.00 | |
| 10126919 | NU2206-E | 30.00 | 62.00 | 20.00 | |
| 10127102 | NU307-E | 35.00 | 80.00 | 21.00 | |
| 10126868 | NU207-E | 35.00 | 72.00 | 17.00 | |
| 10127015 | NU2307-E | 35.00 | 80.00 | 31.00 | |
| 10126922 | NU2207-E | 35.00 | 72.00 | 23.00 | |
| 10126925 | NU2208-E | 40.00 | 80.00 | 23.00 | |
| 10126871 | NU208-E | 40.00 | 80.00 | 18.00 | |
| 10127018 | NU2308-E | 40.00 | 90.00 | 33.00 | |
| 10127105 | NU308-E | 40.00 | 90.00 | 23.00 | |
| 10126874 | NU209-E | 45.00 | 85.00 | 19.00 | |
| 10126928 | NU2209-E | 45.00 | 85.00 | 23.00 | |
| 10127021 | NU2309-E | 45.00 | 100.00 | 36.00 | |
| 10127108 | NU309-E | 45.00 | 100.00 | 25.00 | |
| 10126934 | NU2210-E | 50.00 | 90.00 | 23.00 | |
| 10127024 | NU2310-E | 50.00 | 110.00 | 40.00 | |
| 10126877 | NU210-E | 50.00 | 90.00 | 20.00 | |
| 10127111 | NU310-E | 50.00 | 110.00 | 27.00 | |
| 10126937 | NU2211-E | 55.00 | 100.00 | 25.00 | |
| 10126880 | NU211-E | 55.00 | 100.00 | 21.00 | |
| 10127027 | NU2311-E | 55.00 | 120.00 | 43.00 | |
| 10127114 | NU311-E | 55.00 | 120.00 | 29.00 | |
| 10126940 | NU2212-E | 60.00 | 110.00 | 28.00 | |
| 10127030 | NU2312-E | 60.00 | 130.00 | 46.00 | |
| 10127117 | NU312-E | 60.00 | 130.00 | 31.00 | |
| 10126883 | NU212-E | 60.00 | 110.00 | 22.00 | |
| 10127120 | NU313-E | 65.00 | 140.00 | 33.00 | |
| 10127033 | NU2313-E | 65.00 | 140.00 | 48.00 | |
| 10126943 | NU2213-E | 65.00 | 120.00 | 31.00 | |
| 10126886 | NU213-E | 65.00 | 120.00 | 23.00 | |
| 10127036 | NU2314-E | 70.00 | 150.00 | 51.00 | |
| 10126889 | NU214-E | 70.00 | 125.00 | 24.00 | |
| 10126946 | NU2214-E | 70.00 | 125.00 | 31.00 | |
| 10127123 | NU314-E | 70.00 | 150.00 | 35.00 | |
| 10126949 | NU2215-E | 75.00 | 130.00 | 31.00 | |
| 10127039 | NU2315-E | 75.00 | 160.00 | 55.00 | |
| 10127126 | NU315-E | 75.00 | 160.00 | 37.00 | |
| 10126892 | NU215-E | 75.00 | 130.00 | 25.00 | |
| 10126952 | NU2216-E | 80.00 | 140.00 | 33.00 | |
| 10127042 | NU2316-E | 80.00 | 170.00 | 58.00 | |
| 10127129 | NU316-E | 80.00 | 170.00 | 39.00 | |
| 10126895 | NU216-E | 80.00 | 140.00 | 26.00 | |
| 10127132 | NU317-E | 85.00 | 180.00 | 41.00 | |
| 10127045 | NU2317-E | 85.00 | 180.00 | 60.00 | |
| 10126955 | NU2217-E | 85.00 | 150.00 | 36.00 | |
| 10126898 | NU217-E | 85.00 | 150.00 | 28.00 | |
| 10127135 | NU318-E | 90.00 | 190.00 | 43.00 | |
| 10127048 | NU2318-E | 90.00 | 190.00 | 64.00 | |
| 10126958 | NU2218-E | 90.00 | 160.00 | 40.00 | |
| 10126901 | NU218-E | 90.00 | 160.00 | 30.00 | |
| 10127051 | NU2319-E | 95.00 | 200.00 | 67.00 | |
| 10127138 | NU319-E | 95.00 | 200.00 | 45.00 | |
| 10126961 | NU2219-E | 95.00 | 170.00 | 43.00 | |
| 10126904 | NU219-E | 95.00 | 170.00 | 32.00 | |
| 10127141 | NU320-E | 100.00 | 215.00 | 47.00 | |
| 10127057 | NU2320-E | 100.00 | 215.00 | 73.00 | |
| 10126967 | NU2220-E | 100.00 | 180.00 | 46.00 | |
| 10126907 | NU220-E | 100.00 | 180.00 | 34.00 | |
