Crossed roller bearings

Crossed roller bearings can bear high loads. The X-arrangement of the cylindrical rollers means they transmit axial forces from both directions. They are particularly characterized by the fact that they absorb all load combinations in just one bearing point, thereby reducing conventional bearing points (a combination of a radial and an axial bearing) to just one bearing point. Spacers between the cylindrical rollers guide the rollers along their entire length and keep them at a distance. This guarantees that the rollers are not inclined and do not rub against each other, and ensures smooth and stable rotation even under preload.

Crossed rolle bearing - series

• All
• externally toothed
• internally toothed
• non-toothed
• XA
• XI
• XU
• XSA
• XSI
• XSU
• SX
• XV
• RB
• RA
• RE
• RU

Crossed roller bearing XA

---

Crossed roller bearing equivalent to INA, externally toothed, preloaded, sealed, grease nipple on the circumference of the untoothed ring

Crossed roller bearing XI

---

Crossed roller bearing equivalent to INA, internally toothed, preloaded, sealed, grease nipple on the circumference of the untoothed ring

Crossed roller bearing XU

---

Crossed roller bearing equivalent to INA, toothless, preloaded, sealed, grease nipple on the circumference of the outer ring

Crossed roller bearing XSA

---

Crossed roller bearing equivalent to INA, heavy series, externally toothed, preloaded, sealed, grease nipple on the circumference of the untoothed ring

Crossed roller bearing XSI

---

Crossed roller bearing equivalent to INA, heavy series, internally toothed, preloaded, sealed, grease nipple on the circumference of the untoothed ring

Crossed roller bearing XSU

---

Crossed roller bearing equivalent to INA, heavy series, toothless, preloaded, sealed, grease nipple on the circumference of the outer ring

Crossed roller bearing SX

---

Crossed roller bearing equivalent to INA, according to dimension series 18 according to DIN 616, unsealed, greased, with clearance, low clearance or preloaded, outer ring split in the circumferential direction and held together by three retaining rings

Corssed roller bearing XV

---

Crossed roller bearing equivalent to INA, sealed on both sides, greased, with clearance, can be preloaded by means of a locknut, inner ring divided in the circumferential direction, outer ring can be screwed directly onto the adjacent construction

Crossed roller bearing RA

---

Crossed roller bearing equivalent to THK, lightweight and compact crossed roller bearing which is suitable for robot arms due to its extremely thin-walled inner and outer ring.

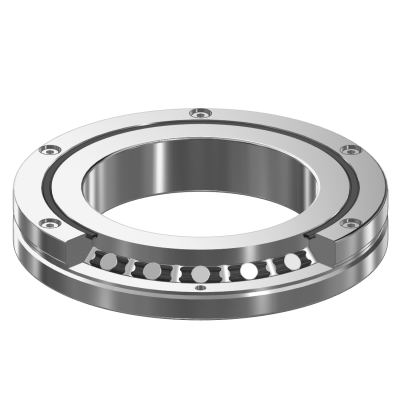

Crossed roller bearing RB

---

Crossed roller bearing equivalent to THK, for high requirements on the concentricity of the inner ring. The crossed roller bearing consists of a two-part outer ring and a one-part inner ring.

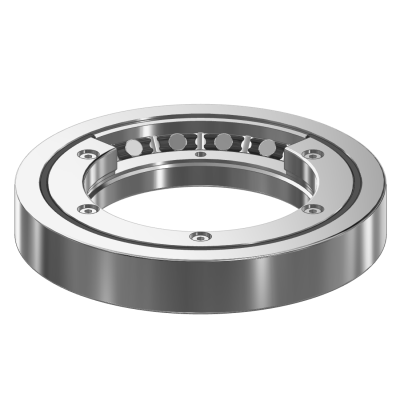

Crossed roller bearing RE

---

Crossed roller bearing equivalent to THK, for high requirements on the concentricity of the outer ring. The inner ring of this crossed roller bearing is split in two, while the outer ring is one piece.

Crossed roller bearing RU

---

Cross roller bearing equivalent to THK, suitable for inner and outer ring rotation, can be mounted directly via mounting hole.
