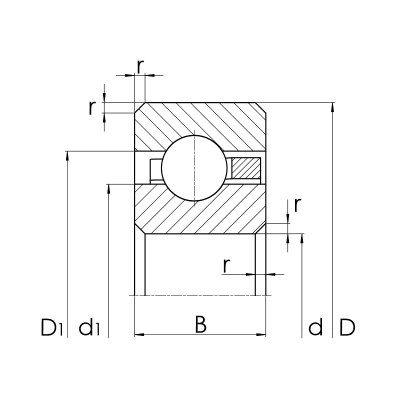

Thin section deep groove ball bearing - 2,50 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10325597 | S03503CS0 | 35.00 | 41.00 | 2.50 | |
| 10325598 | S06003CS0 | 60.00 | 66.00 | 2.50 | |
| 10325599 | S07003CS0 | 70.00 | 76.00 | 2.50 | |
| 10325600 | S07403CS0 | 74.00 | 80.00 | 2.50 | |
| 10325601 | S08003CS0 | 80.00 | 86.00 | 2.50 | |
| 10325602 | S09003CS0 | 90.00 | 96.00 | 2.50 | |
| 10325603 | S10003CS0 | 100.00 | 106.00 | 2.50 | |
| 10325604 | S11003CS0 | 110.00 | 116.00 | 2.50 | |
| 10325605 | S12003CS0 | 120.00 | 126.00 | 2.50 | |
| 10325606 | S13003CS0 | 130.00 | 136.00 | 2.50 | |
| 10325607 | S14003CS0 | 140.00 | 146.00 | 2.50 | |
| 10325608 | S15003CS0 | 150.00 | 156.00 | 2.50 | |
| 10325609 | S16003CS0 | 160.00 | 166.00 | 2.50 | |
| 10325610 | S17003CS0 | 170.00 | 176.00 | 2.50 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
