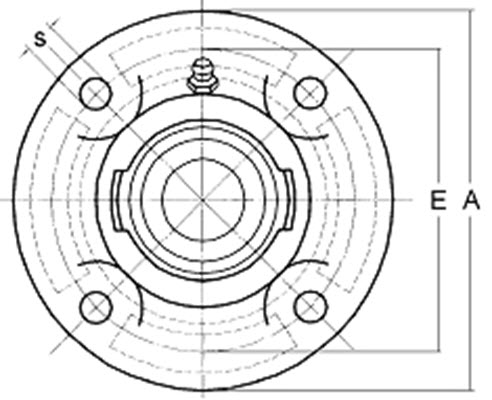

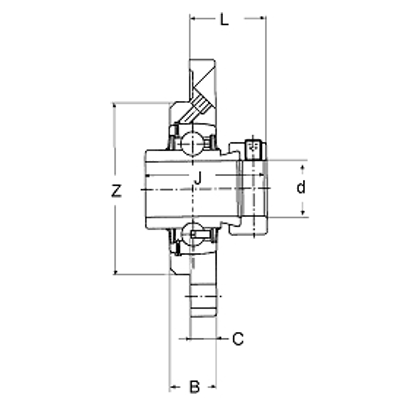

Flanschlager RVFWO, ähnlich INA
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | E | Z | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | E | Z | |||
| mm | mm | mm | |||
| 30000371 | RVFWO40 | 40,00 | 158,00 | 115,00 | |
| 30000372 | RVFWO50 | 50,00 | 187,00 | 140,00 | |
| 30000373 | RVFWO60 | 60,00 | 212,00 | 160,00 | |
| 30000374 | RVFWO70 | 70,00 | 252,00 | 185,00 | |
| 30000375 | RVFWO80 | 80,00 | 235,00 | 200,00 | |
| 30000376 | RVFWO90 | 90,00 | 260,00 | 220,00 | |
| 30000377 | RVFWO100 | 100,00 | 295,00 | 250,00 | |
