  • RA

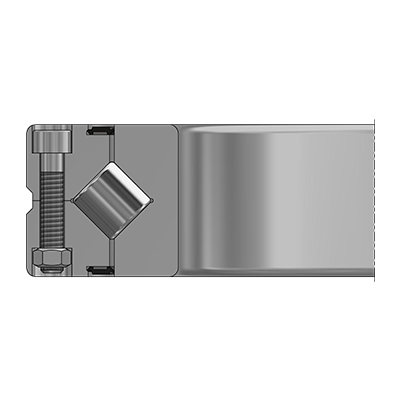

    Crossed roller bearing RA - With split outer ring, highly rigid

    • Crossed roller bearing RA
      Crossed roller bearing RA
    • Crossed roller bearing RA
      Crossed roller bearing RA
    • Crossed roller bearing RA
      Crossed roller bearing RA
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10304017 RA5008-C0-P0 50.00 66.00 8.00
      -0.12
      10304071 RA6008-C0-P0 60.00 76.00 8.00
      -0.12
      10304125 RA7008-C0-P0 70.00 86.00 8.00
      -0.12
      10304179 RA8008-C0-P0 80.00 96.00 8.00
      -0.12
      10304233 RA9008-C0-P0 90.00 106.00 8.00
      -0.12
      10304287 RA10008-C0-P0 100.00 116.00 8.00
      -0.12
      10304341 RA11008-C0-P0 110.00 126.00 8.00
      -0.12
      10304395 RA12008-C0-P0 120.00 136.00 8.00
      -0.12
      10304449 RA13008-C0-P0 130.00 146.00 8.00
      -0.12
      10304503 RA14008-C0-P0 140.00 156.00 8.00
      -0.12
      10304557 RA15008-C0-P0 150.00 166.00 8.00
      -0.12
      10304611 RA16013-C0-P0 160.00 186.00 13.00
      -0.12
      10304665 RA17013-C0-P0 170.00 196.00 13.00
      -0.12
      10304719 RA18013-C0-P0 180.00 206.00 13.00
      -0.12
      10304773 RA19013-C0-P0 190.00 216.00 13.00
      -0.12
      10304827 RA20013-C0-P0 200.00 226.00 13.00
      -0.12
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • RA-C

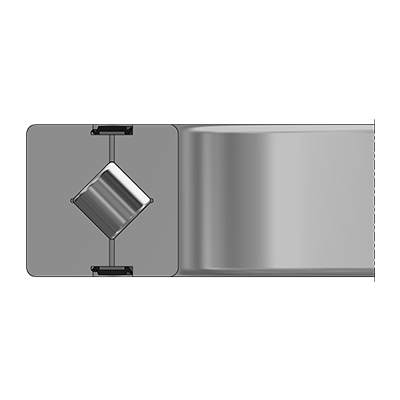

      Crossed roller bearing RA - With undivided outer ring, highly rigid

      • Crossed roller bearing RA-C
        Crossed roller bearing RA-C
      • Crossed roller bearing RA-C
        Crossed roller bearing RA-C
      • Crossed roller bearing RA-C
        Crossed roller bearing RA-C

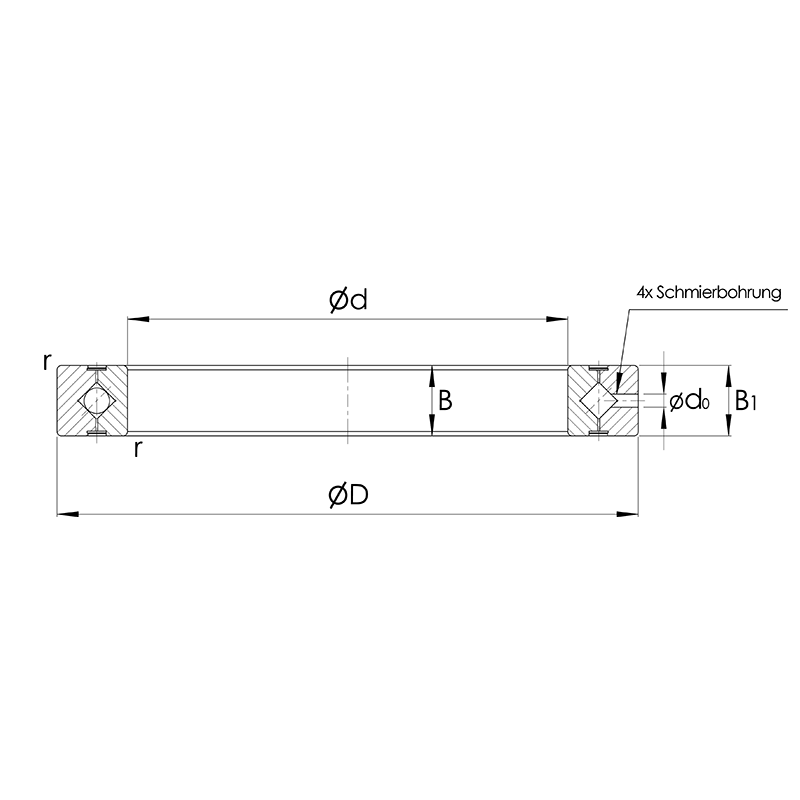

        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10304881 RA5008C-C0-P0 50.00 66.00 8.00
        -0.12
        10304935 RA6008C-C0-P0 60.00 76.00 8.00
        -0.12
        10304989 RA7008C-C0-P0 70.00 86.00 8.00
        -0.12
        10305043 RA8008C-C0-P0 80.00 96.00 8.00
        -0.12
        10305097 RA9008C-C0-P0 90.00 106.00 8.00
        -0.12
        10305151 RA10008C-C0-P0 100.00 116.00 8.00
        -0.12
        10305205 RA11008C-C0-P0 110.00 126.00 8.00
        -0.12
        10305259 RA12008C-C0-P0 120.00 136.00 8.00
        -0.12
        10305313 RA13008C-C0-P0 130.00 146.00 8.00
        -0.12
        10305367 RA14008C-C0-P0 140.00 156.00 8.00
        -0.12
        10305421 RA15008C-C0-P0 150.00 166.00 8.00
        -0.12
        10305475 RA16013C-C0-P0 160.00 186.00 13.00
        -0.12
        10305529 RA17013C-C0-P0 170.00 196.00 13.00
        -0.12
        10305583 RA18013C-C0-P0 180.00 206.00 13.00
        -0.12
        10305637 RA19013C-C0-P0 190.00 216.00 13.00
        -0.12
        10305691 RA20013C-C0-P0 200.00 226.00 13.00
        -0.12
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
