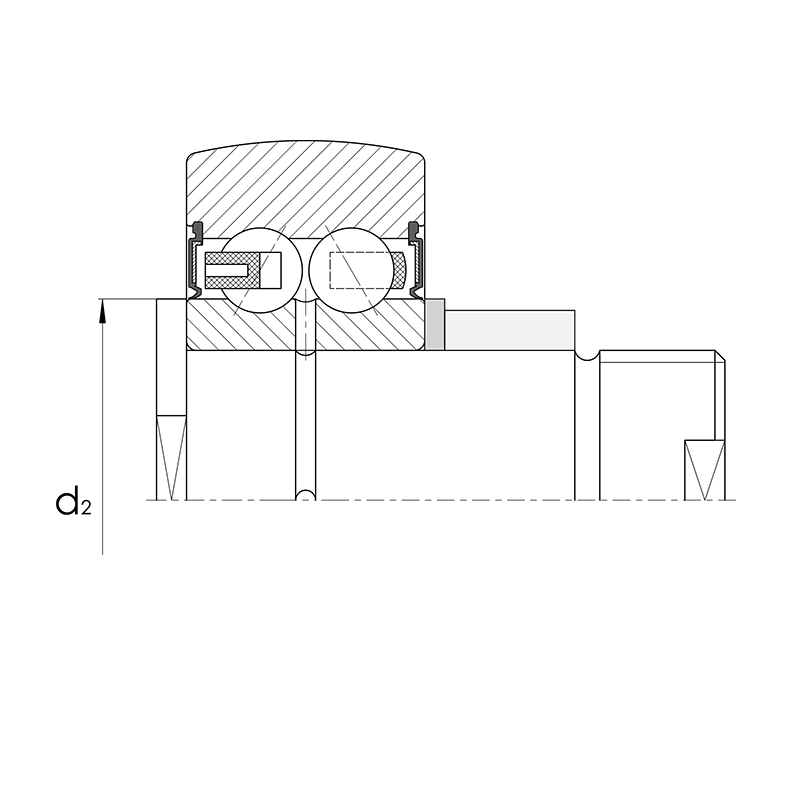

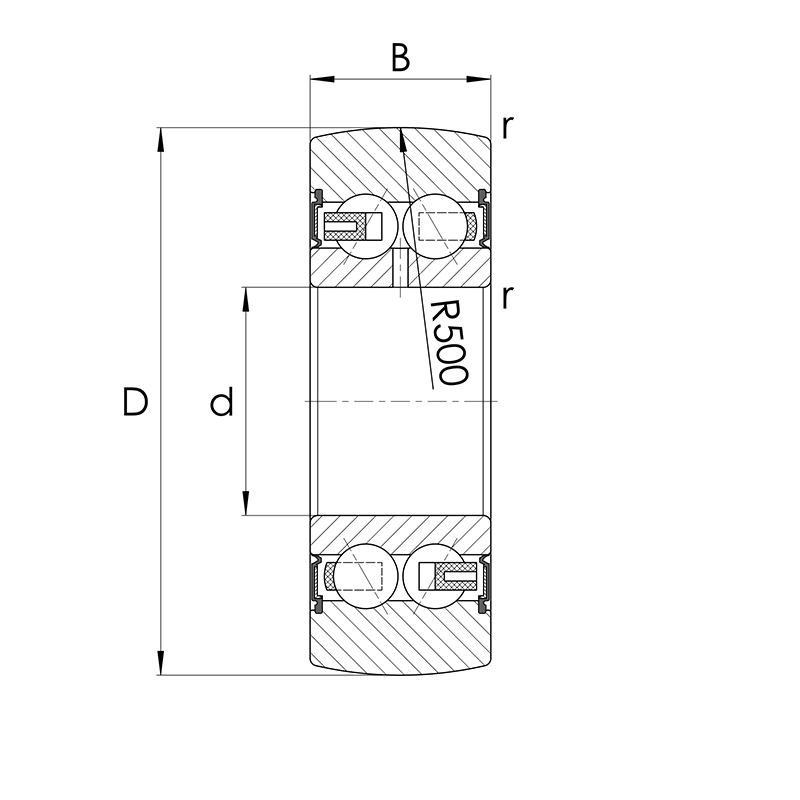

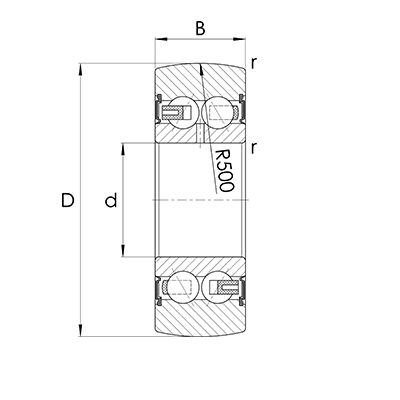

  • LR50..-2RS (BALLIG)

    Laufrollen, zweireihig, abgedichtet

    • LR50..-2RS
      LR50..-2RS
    • LR50..-2RS
      LR50..-2RS
    • LR50..-2RS
      LR50..-2RS
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10050755 LR50/5-2RS-TVH 5,00 17,00 7,00
      10050756 LR50/6-2RS-TVH 6,00 19,00 9,00
      10050757 LR50/7-2RS-TVH 7,00 22,00 10,00
      10171053 LR50/8-2RS-TVH 8,00 24,00 11,00
      10050759 LR5000-2RS-TVH 10,00 28,00 12,00
      10050760 LR5001-2RS-TVH 12,00 30,00 12,00
      10050761 LR5002-2RS-TVH 15,00 35,00 13,00
      10050762 LR5003-2RS-TVH 17,00 40,00 14,00
      10050763 LR5004-2RS-TVH 20,00 47,00 16,00
      10050764 LR5005-2RS-TVH 25,00 52,00 16,00
      10050765 LR5006-2RS-TVH 30,00 62,00 19,00
      10050766 LR5007-2RS-TVH 35,00 68,00 20,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

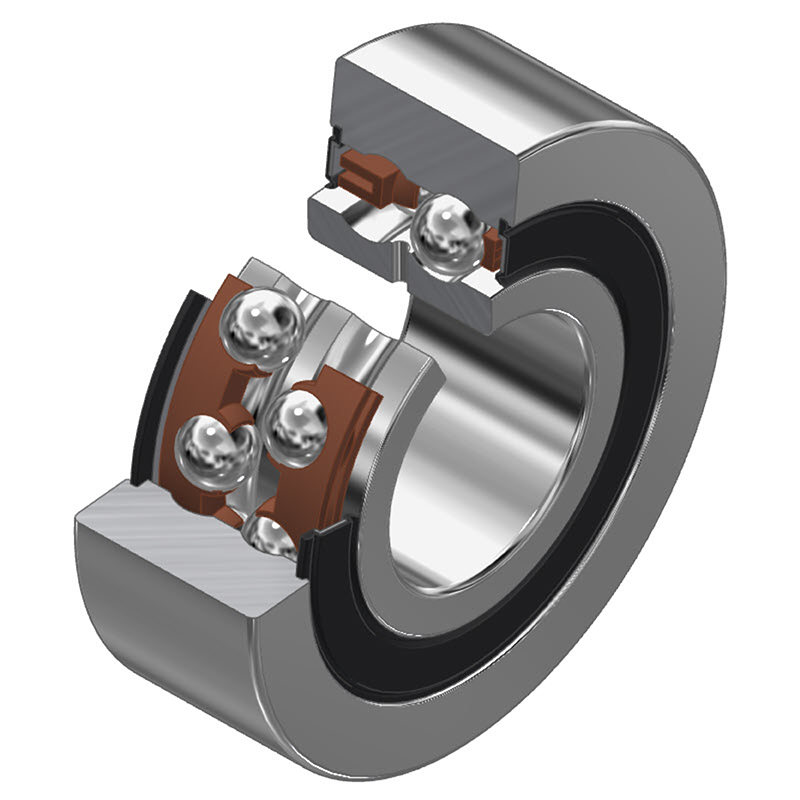

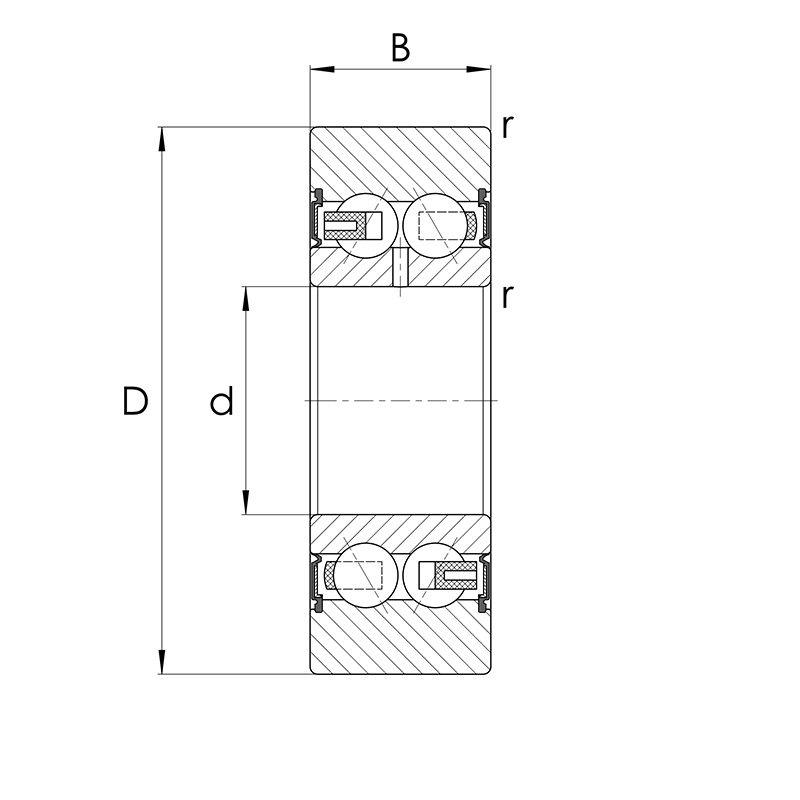

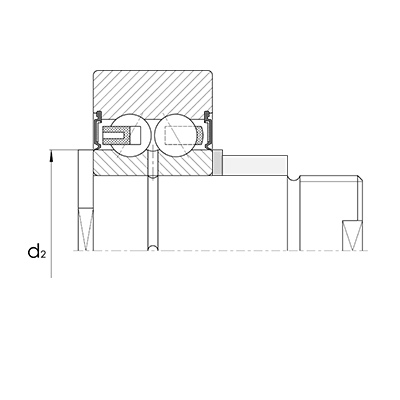

    • LR50..-X-2RS (ZYLINDRISCH)

      Laufrollen, zweireihig, abgedichtet

      • LR50..-X-2RS
        LR50..-X-2RS
      • LR50..-X-2RS
        LR50..-X-2RS
      • LR50..-X-2RS
        LR50..-X-2RS
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10357627 LR50/5-X-2RS-TVH 5,00 17,00 7,00
        10357628 LR50/6-X-2RS-TVH 6,00 19,00 9,00
        10357629 LR50/7-X-2RS-TVH 7,00 22,00 10,00
        10357630 LR50/8-X-2RS-TVH 8,00 24,00 11,00
        10357631 LR5000-X-2RS-TVH 10,00 28,00 12,00
        10357632 LR5001-X-2RS-TVH 12,00 30,00 12,00
        10357633 LR5002-X-2RS-TVH 15,00 35,00 13,00
        10357634 LR5003-X-2RS-TVH 17,00 40,00 14,00
        10357635 LR5004-X-2RS-TVH 20,00 47,00 16,00
        10357636 LR5005-X-2RS-TVH 25,00 52,00 16,00
        10357637 LR5006-X-2RS-TVH 30,00 62,00 19,00
        10357638 LR5007-X-2RS-TVH 35,00 68,00 20,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      Bedenken Sie bitte, das die maximal mögliche Drehzahl der Laufrollen durch folgende Faktoren beeinträchtigt werden kann. Diese sind:

      • zulässige Betriebstemperatur für Laufrollen
      • Art des Lagers (Rillenkugellager oder Schrägkugellager)
      • Belastung
      • Schmierungsbedingungen
      • Kühlverhältnisse
      • Verwendete Dichtung

      Die angegebenen Grenzdrehzahlen dienen als Richtwert bei optimalen Einsatzbedingungen unter Berücksichtigung aller Faktoren.
