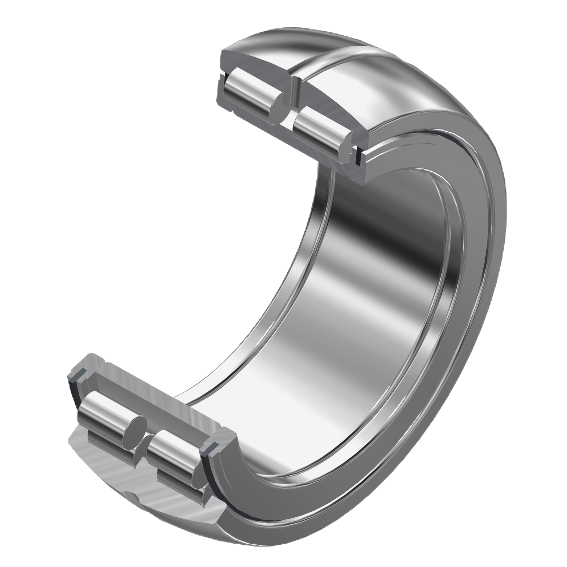

Cylindrical roller bearing SL05, locating bearing, full complement

  • SL05
    SL05
  • SL05
    SL05

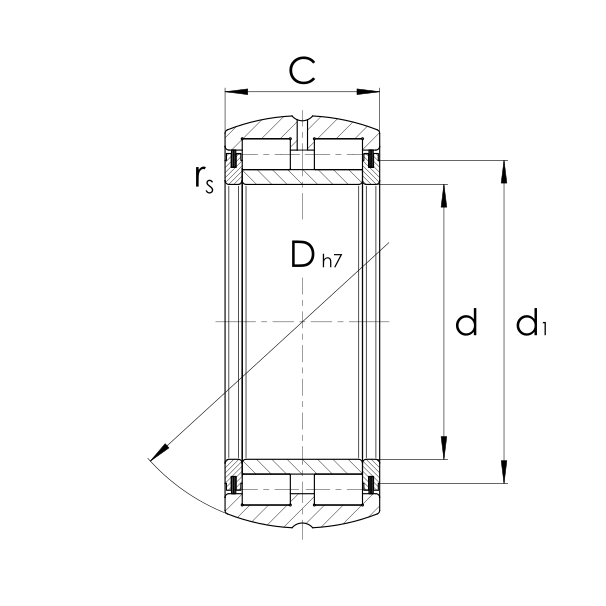

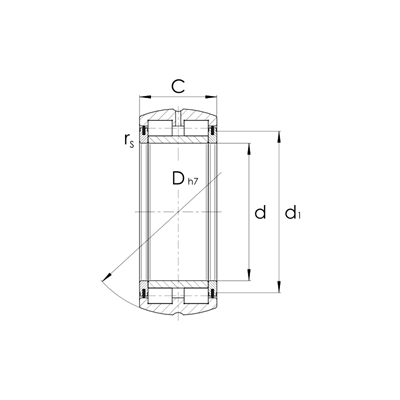

    Description Main dimensions Functions
    d Dh7 c
    mm mm mm
    SKU Description Main dimensions Functions
    d Dh7 c
    mm mm mm
    10266864 SL05016-E 80.00 120.00 45.00
    10266866 SL05018-E 90.00 140.00 50.00
    10266868 SL05020-E 100.00 150.00 55.00
    10266870 SL05022-E 110.00 170.00 60.00
    10266872 SL05024-E 120.00 180.00 60.00
    10266874 SL05026-E 130.00 200.00 65.00
    10266876 SL05028-E 140.00 210.00 70.00
    10266878 SL05030-E 150.00 225.00 75.00
    10266880 SL05032-E 160.00 240.00 90.00
    10266882 SL05034-E 170.00 260.00 95.00
    10266884 SL05036-E 180.00 280.00 100.00
    10266886 SL05038-E 190.00 290.00 110.00
    10266888 SL05040-E 200.00 310.00 115.00
    10266890 SL05044-E 220.00 340.00 125.00
    10266892 SL05048-E 240.00 360.00 130.00
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
