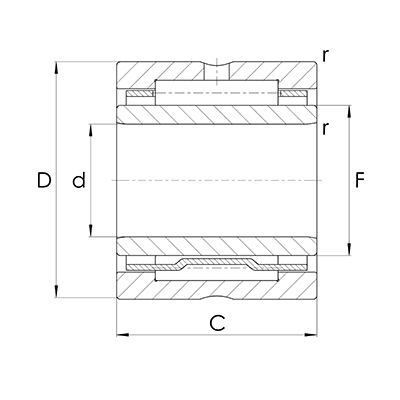

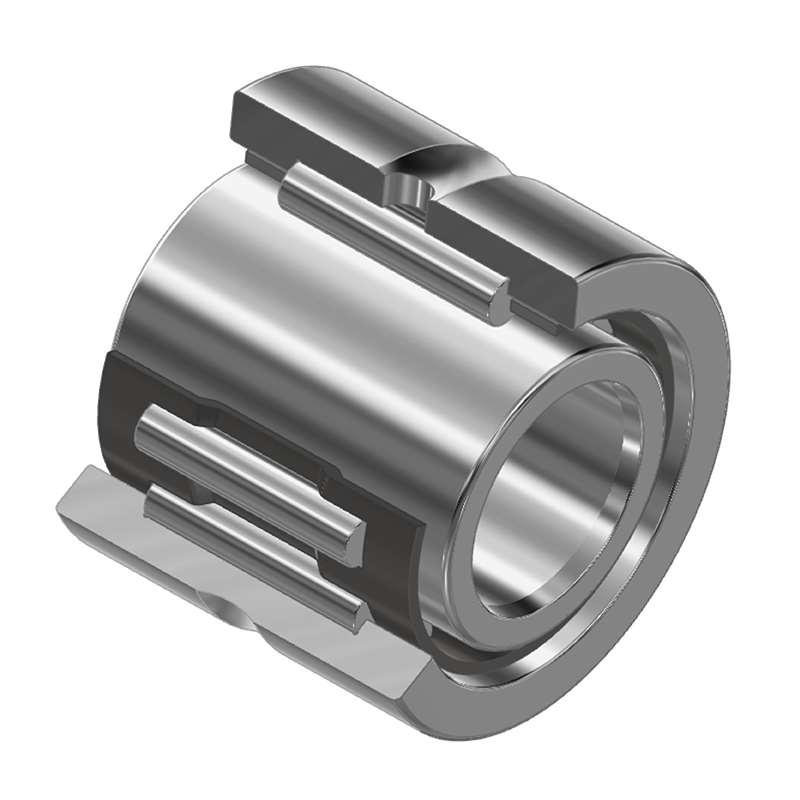

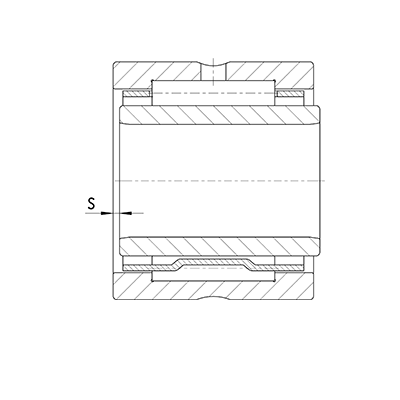

Nadellager NKIS, schwere Reihe nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10041143 | NKIS15 | 35,00 | 35,00 | 20,00 | |
| 10041144 | NKIS17 | 37,00 | 37,00 | 20,00 | |
| 10041145 | NKIS20 | 42,00 | 42,00 | 20,00 | |
| 10041146 | NKIS25 | 47,00 | 47,00 | 22,00 | |
| 10041147 | NKIS30 | 52,00 | 52,00 | 22,00 | |
| 10041148 | NKIS35 | 58,00 | 58,00 | 22,00 | |
| 10041149 | NKIS40 | 65,00 | 65,00 | 22,00 | |
| 10041150 | NKIS45 | 72,00 | 72,00 | 22,00 | |
| 10041151 | NKIS50 | 80,00 | 80,00 | 28,00 | |
| 10041152 | NKIS55 | 85,00 | 85,00 | 28,00 | |
| 10041153 | NKIS60 | 90,00 | 90,00 | 28,00 | |
| 10041154 | NKIS65 | 95,00 | 95,00 | 28,00 | |
