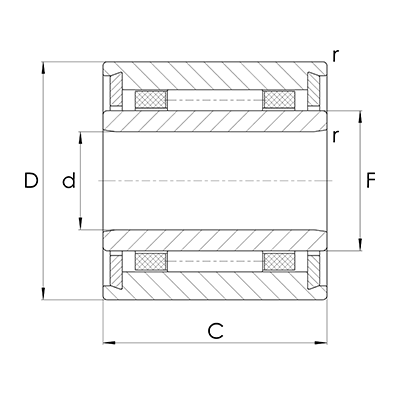

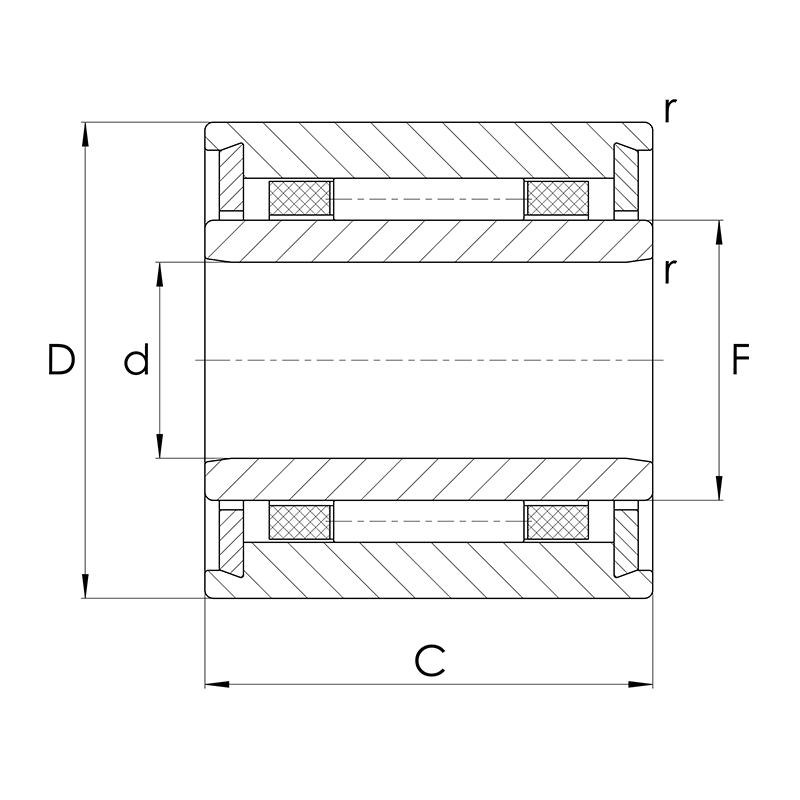

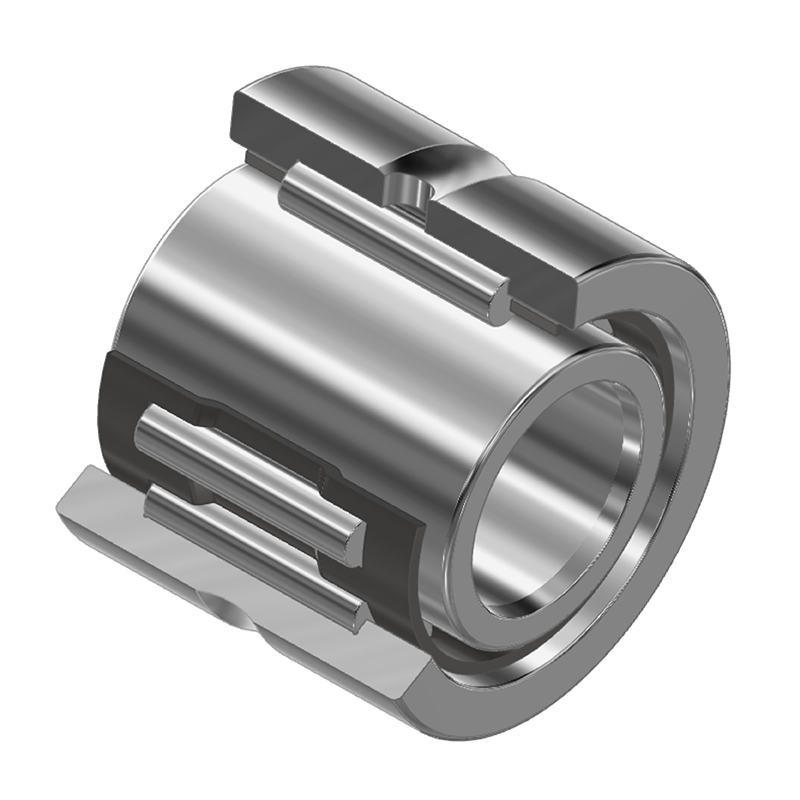

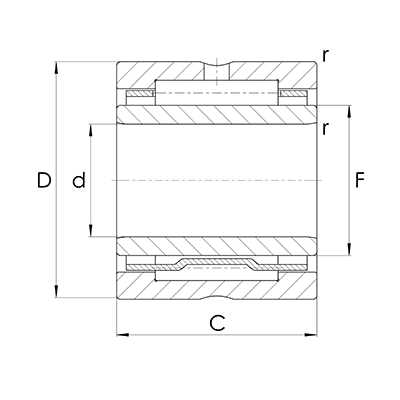

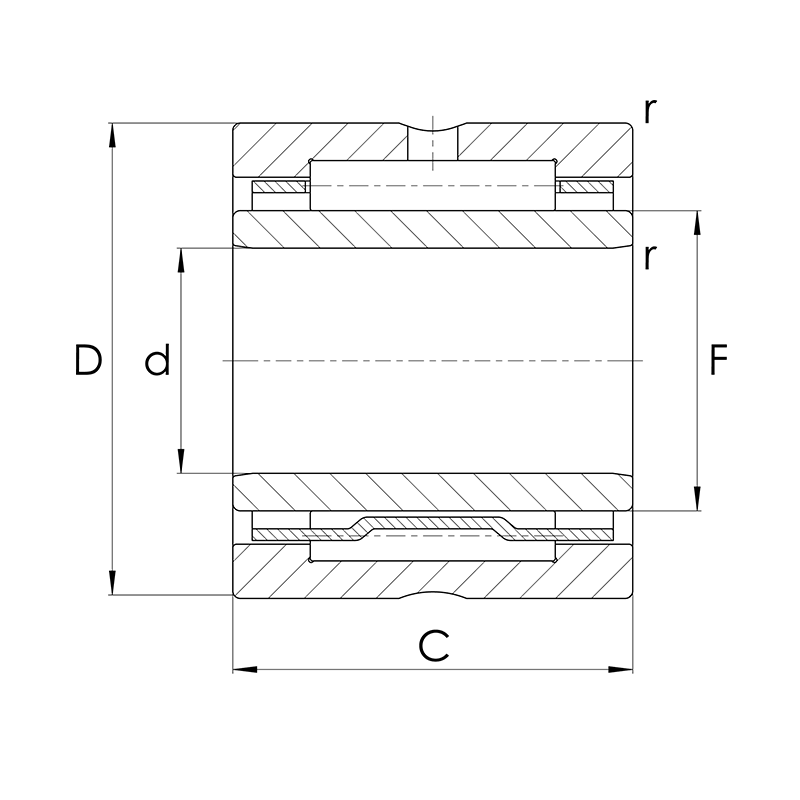

Nadellager NKI, Abmessungen nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10041116 | NKI5/16-TV | 5,00 | 15,00 | 16,00 | |
| 10041115 | NKI5/12-TV | 5,00 | 15,00 | 12,00 | |
| 10041122 | NKI6/16-TV | 6,00 | 16,00 | 16,00 | |
| 10041121 | NKI6/12-TV | 6,00 | 16,00 | 12,00 | |
| 10041128 | NKI7/16-TV | 7,00 | 17,00 | 16,00 | |
| 10041127 | NKI7/12-TV | 7,00 | 17,00 | 12,00 | |
| 10041138 | NKI9/16 | 9,00 | 19,00 | 16,00 | |
| 10041137 | NKI9/12 | 9,00 | 19,00 | 12,00 | |
| 10041084 | NKI10/20 | 10,00 | 22,00 | 20,00 | |
| 10041083 | NKI10/16 | 10,00 | 22,00 | 16,00 | |
| 10041087 | NKI12/16 | 12,00 | 24,00 | 16,00 | |
| 10041088 | NKI12/20 | 12,00 | 24,00 | 20,00 | |
| 10041089 | NKI15/16 | 15,00 | 27,00 | 16,00 | |
| 10041090 | NKI15/20 | 15,00 | 27,00 | 20,00 | |
| 10041092 | NKI17/20 | 17,00 | 29,00 | 20,00 | |
| 10041091 | NKI17/16 | 17,00 | 29,00 | 16,00 | |
| 10041093 | NKI20/16 | 20,00 | 32,00 | 16,00 | |
| 10041094 | NKI20/20 | 20,00 | 32,00 | 20,00 | |
| 10041096 | NKI22/20 | 22,00 | 34,00 | 20,00 | |
| 10041095 | NKI22/16 | 22,00 | 34,00 | 16,00 | |
| 10041097 | NKI25/20-TV | 25,00 | 38,00 | 20,00 | |
| 10041098 | NKI25/30 | 25,00 | 38,00 | 30,00 | |
| 10041099 | NKI28/20-TV | 28,00 | 42,00 | 20,00 | |
| 10041100 | NKI28/30 | 28,00 | 42,00 | 30,00 | |
| 10041101 | NKI30/20 | 30,00 | 45,00 | 20,00 | |
| 10041102 | NKI30/30 | 30,00 | 45,00 | 30,00 | |
| 10041104 | NKI32/30 | 32,00 | 47,00 | 30,00 | |
| 10041103 | NKI32/20 | 32,00 | 47,00 | 20,00 | |
| 10041106 | NKI35/30 | 35,00 | 50,00 | 30,00 | |
| 10041105 | NKI35/20-TV | 35,00 | 50,00 | 20,00 | |
| 10318392 | NKI35/20-TW | 35,00 | 50,00 | 20,00 | |
| 10041108 | NKI38/30 | 38,00 | 53,00 | 30,00 | |
| 10041107 | NKI38/20 | 38,00 | 53,00 | 20,00 | |
| 10041109 | NKI40/20-TV | 40,00 | 55,00 | 20,00 | |
| 10139130 | NKI40/30 | 40,00 | 55,00 | 30,00 | |
| 10041111 | NKI42/20 | 42,00 | 57,00 | 20,00 | |
| 10041112 | NKI42/30 | 42,00 | 57,00 | 30,00 | |
| 10041113 | NKI45/25-TV | 45,00 | 62,00 | 25,00 | |
| 10041114 | NKI45/35-TV | 45,00 | 62,00 | 35,00 | |
| 10041118 | NKI50/35 | 50,00 | 68,00 | 35,00 | |
| 10041117 | NKI50/25 | 50,00 | 68,00 | 25,00 | |
| 10318394 | NKI55/25-TW | 55,00 | 72,00 | 25,00 | |
| 10041119 | NKI55/25-TV | 55,00 | 72,00 | 25,00 | |
| 10041120 | NKI55/35 | 55,00 | 72,00 | 35,00 | |
| 10041123 | NKI60/25 | 60,00 | 82,00 | 25,00 | |
| 10041124 | NKI60/35 | 60,00 | 82,00 | 35,00 | |
| 10041125 | NKI65/25 | 65,00 | 90,00 | 25,00 | |
| 10041126 | NKI65/35 | 65,00 | 90,00 | 35,00 | |
| 10041130 | NKI70/35 | 70,00 | 95,00 | 35,00 | |
| 10041129 | NKI70/25 | 70,00 | 95,00 | 25,00 | |
| 10041131 | NKI75/25 | 75,00 | 105,00 | 25,00 | |
| 10041132 | NKI75/35 | 75,00 | 105,00 | 35,00 | |
| 10041133 | NKI80/25 | 80,00 | 110,00 | 25,00 | |
| 10041134 | NKI80/35 | 80,00 | 110,00 | 35,00 | |
| 10041135 | NKI85/26 | 85,00 | 115,00 | 26,00 | |
| 10041136 | NKI85/36 | 85,00 | 115,00 | 36,00 | |
| 10041139 | NKI90/26 | 90,00 | 120,00 | 26,00 | |
| 10041140 | NKI90/36 | 90,00 | 120,00 | 36,00 | |
| 10041141 | NKI95/26 | 95,00 | 125,00 | 26,00 | |
| 10041142 | NKI95/36 | 95,00 | 125,00 | 36,00 | |
| 10041085 | NKI100/30 | 100,00 | 130,00 | 30,00 | |
| 10041086 | NKI100/40 | 100,00 | 130,00 | 40,00 | |
