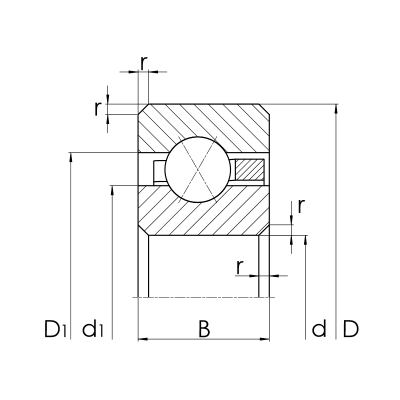

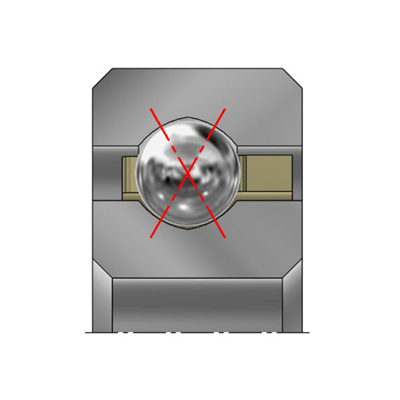

Thin section four-point contact bearing - 8 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229434 | K02508XP0 | 25.00 | 41.00 | 8.00 | |
| 10229435 | K05008XP0 | 50.00 | 66.00 | 8.00 | |
| 10229436 | K06008XP0 | 60.00 | 76.00 | 8.00 | |
| 10229437 | K07008XP0 | 70.00 | 86.00 | 8.00 | |
| 10229438 | K08008XP0 | 80.00 | 96.00 | 8.00 | |
| 10229439 | K09008XP0 | 90.00 | 106.00 | 8.00 | |
| 10229440 | K10008XP0 | 100.00 | 116.00 | 8.00 | |
| 10229441 | K11008XP0 | 110.00 | 126.00 | 8.00 | |
| 10229442 | K12008XP0 | 120.00 | 136.00 | 8.00 | |
| 10229443 | K13008XP0 | 130.00 | 146.00 | 8.00 | |
| 10229444 | K14008XP0 | 140.00 | 156.00 | 8.00 | |
| 10229445 | K15008XP0 | 150.00 | 166.00 | 8.00 | |
| 10229446 | K16008XP0 | 160.00 | 176.00 | 8.00 | |
| 10229447 | K17008XP0 | 170.00 | 186.00 | 8.00 | |
| 10229448 | K18008XP0 | 180.00 | 196.00 | 8.00 | |
| 10229449 | K19008XP0 | 190.00 | 206.00 | 8.00 | |
| 10229450 | K20008XP0 | 200.00 | 216.00 | 8.00 | |
| 10229451 | K25008XP0 | 250.00 | 266.00 | 8.00 | |
| 10229452 | K30008XP0 | 300.00 | 316.00 | 8.00 | |
| 10229453 | K32008XP0 | 320.00 | 336.00 | 8.00 | |
| 10229454 | K34008XP0 | 340.00 | 356.00 | 8.00 | |
| 10229455 | K36008XP0 | 360.00 | 376.00 | 8.00 | |
