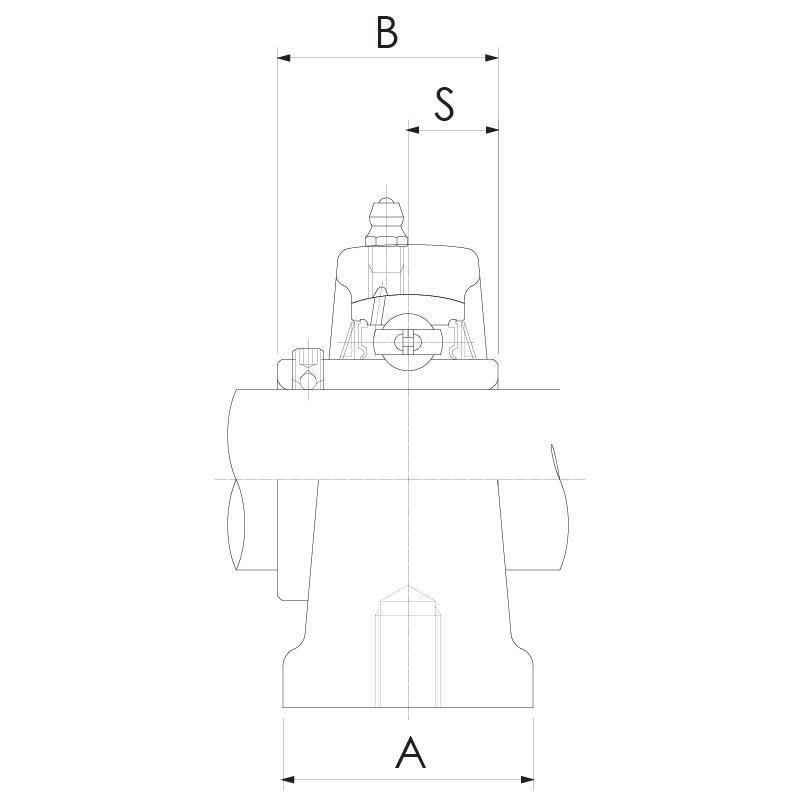

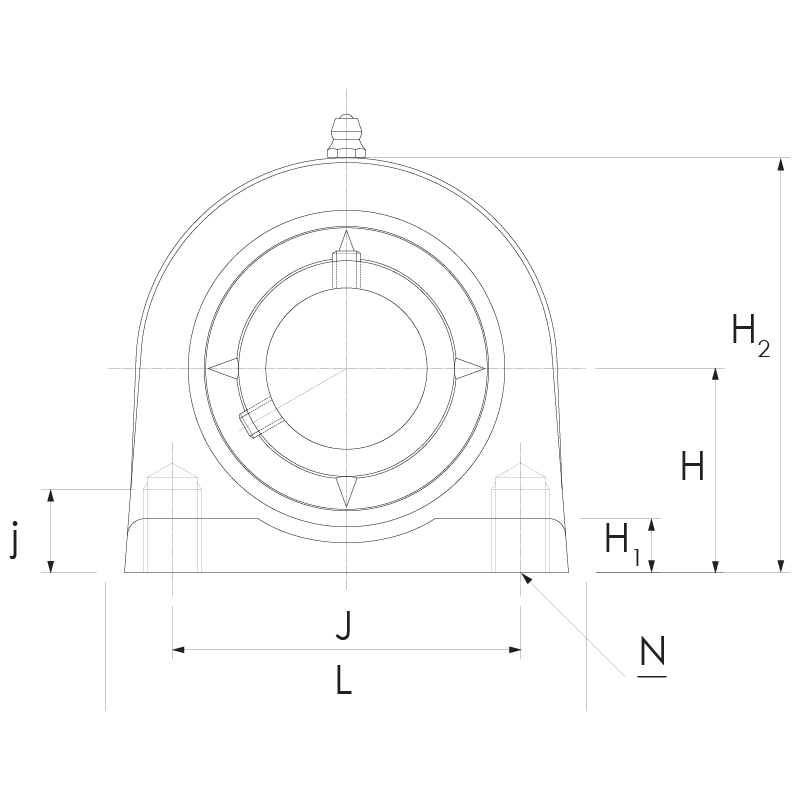

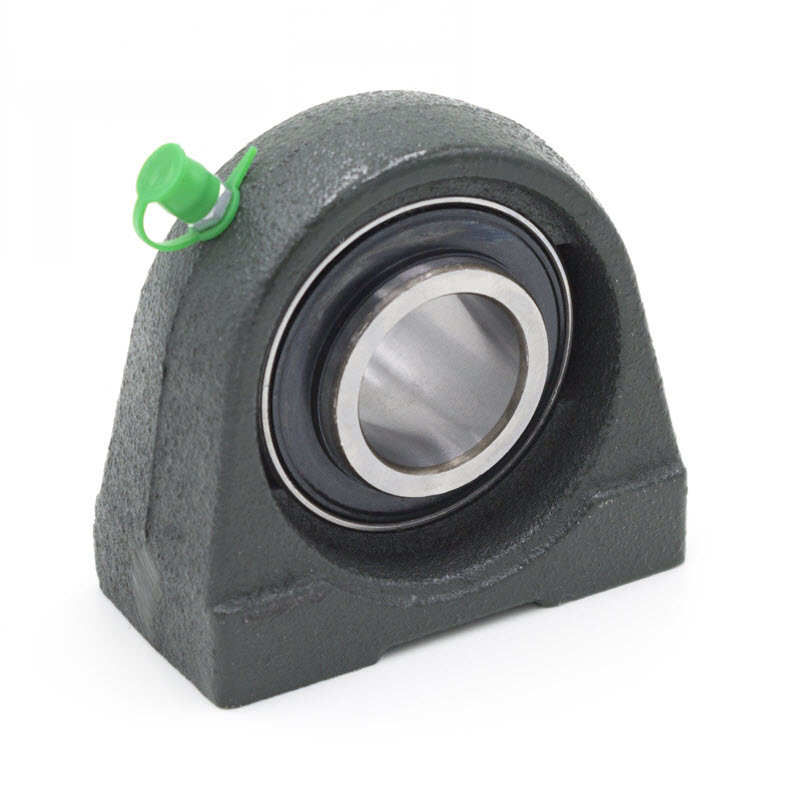

Stehlagereinheit UCPG 200, Abmessungen nach internationaler Norm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | L | H2 | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | L | H2 | |||
| mm | mm | mm | |||
| 10146199 | UCPG201 | 12,00 | 70,00 | 64,00 | |
| 10146200 | UCPG202 | 15,00 | 70,00 | 64,00 | |
| 10146201 | UCPG203 | 17,00 | 70,00 | 64,00 | |
| 10146202 | UCPG204 | 20,00 | 70,00 | 64,00 | |
| 10146203 | UCPG205 | 25,00 | 75,00 | 70,00 | |
| 10146204 | UCPG206 | 30,00 | 85,00 | 83,00 | |
| 10146205 | UCPG207 | 35,00 | 100,00 | 93,00 | |
| 10146206 | UCPG208 | 40,00 | 110,00 | 98,00 | |
| 10146207 | UCPG209 | 45,00 | 120,00 | 106,00 | |
| 10146208 | UCPG210 | 50,00 | 135,00 | 114,00 | |
