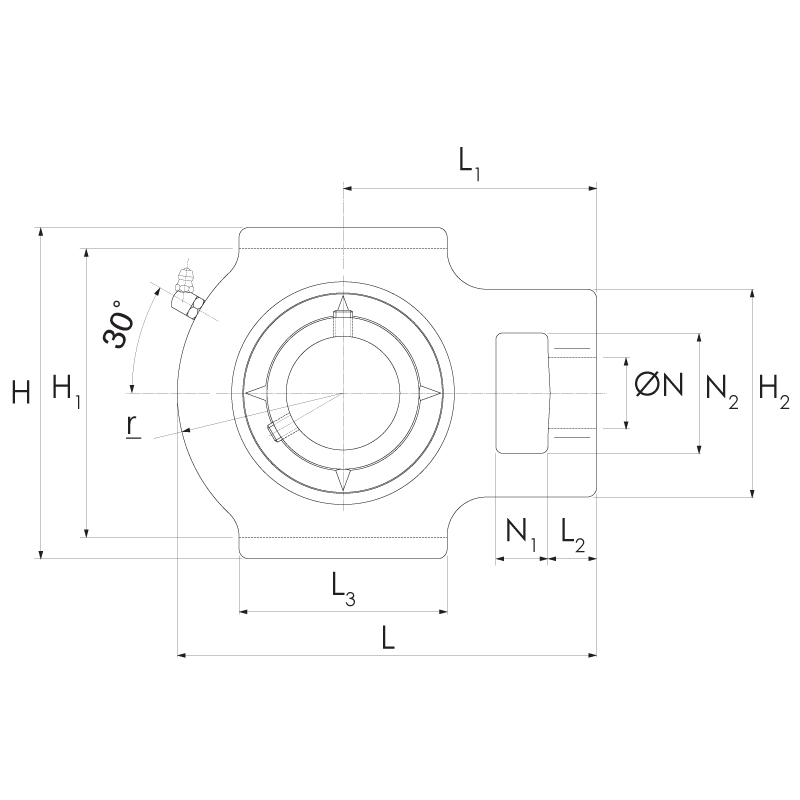

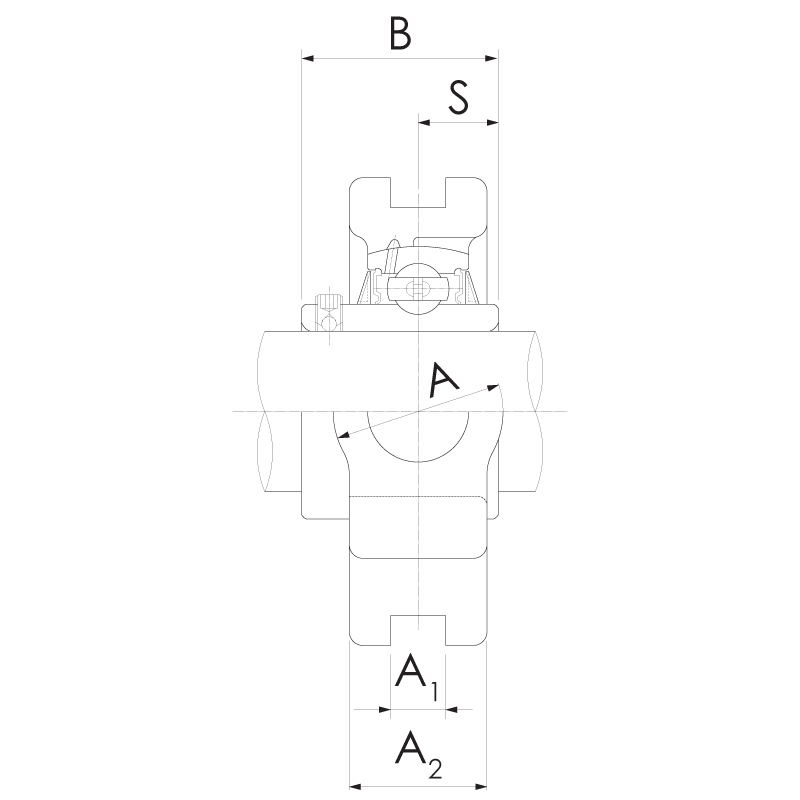

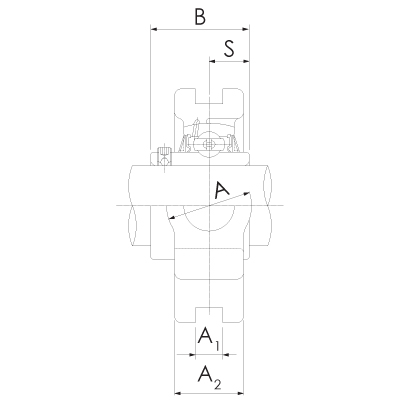

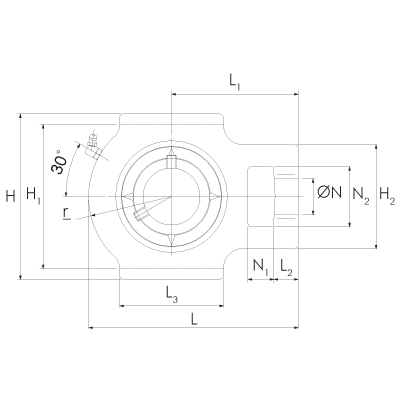

Spannlagereinheit UCT 200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | H | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | H | L | |||
| mm | mm | mm | |||
| 10061901 | UCT201 | 12,00 | 89,00 | 97,00 | |
| 10061902 | UCT202 | 15,00 | 89,00 | 97,00 | |
| 10059390 | UCT203 | 17,00 | 89,00 | 97,00 | |
| 10059391 | UCT204 | 20,00 | 89,00 | 97,00 | |
| 10059392 | UCT205 | 25,00 | 89,00 | 100,50 | |
| 10059393 | UCT206 | 30,00 | 102,00 | 113,50 | |
| 10059394 | UCT207 | 35,00 | 102,00 | 129,00 | |
| 10059395 | UCT208 | 40,00 | 114,00 | 144,00 | |
| 10059396 | UCT209 | 45,00 | 117,00 | 145,50 | |
| 10059397 | UCT210 | 50,00 | 117,00 | 152,00 | |
| 10059398 | UCT211 | 55,00 | 146,00 | 171,50 | |
| 10059399 | UCT212 | 60,00 | 146,00 | 194,00 | |
| 10059400 | UCT213 | 65,00 | 167,00 | 224,00 | |
| 10059401 | UCT214 | 70,00 | 167,00 | 224,00 | |
| 10059402 | UCT215 | 75,00 | 167,00 | 232,00 | |
| 10059403 | UCT216 | 80,00 | 184,00 | 235,00 | |
| 10059404 | UCT217 | 85,00 | 198,00 | 260,00 | |
