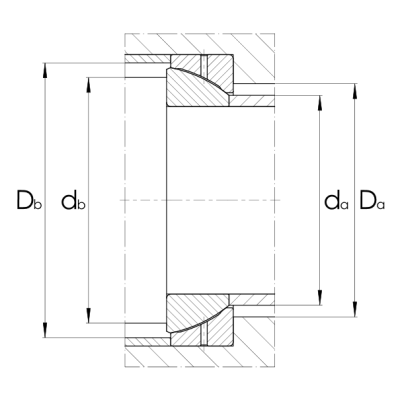

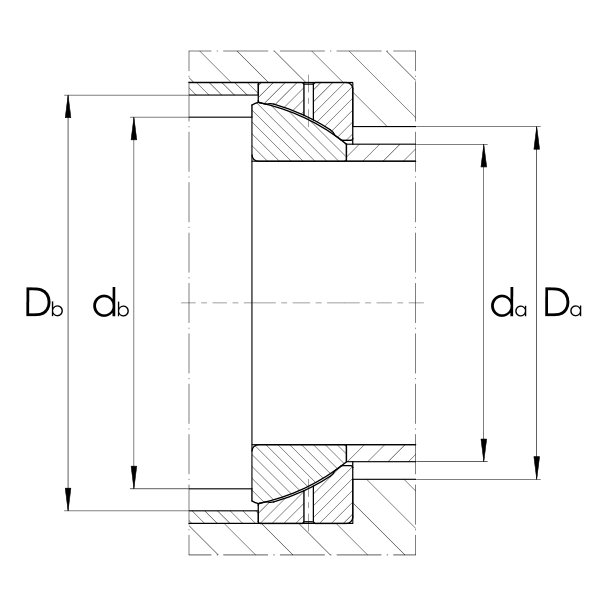

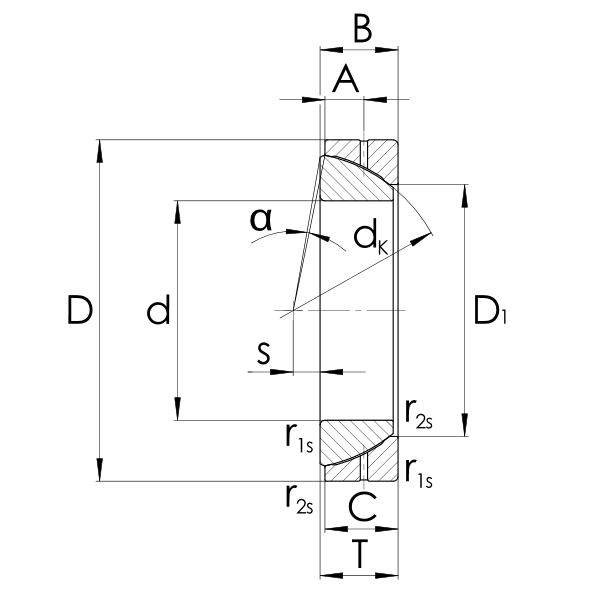

Angular contact spherical plain bearing GE..SX according to DIN ISO 12240-2
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10041749 | GE25-SX | 25.00 | 47.00 | 14.00 | |
| 10041774 | GE28-SX | 28.00 | 52.00 | 15.00 | |
| 10041776 | GE30-SX | 30.00 | 55.00 | 16.00 | |
| 10041778 | GE35-SX | 35.00 | 62.00 | 17.00 | |
| 10041780 | GE40-SX | 40.00 | 68.00 | 18.00 | |
| 10041782 | GE45-SX | 45.00 | 75.00 | 19.00 | |
| 10041784 | GE50-SX | 50.00 | 80.00 | 19.00 | |
| 10041786 | GE55-SX | 55.00 | 90.00 | 22.00 | |
| 10041788 | GE60-SX | 60.00 | 95.00 | 22.00 | |
| 10041790 | GE65-SX | 65.00 | 100.00 | 22.00 | |
| 10041792 | GE70-SX | 70.00 | 110.00 | 24.00 | |
| 10041794 | GE80-SX | 80.00 | 125.00 | 27.00 | |
| 10041796 | GE90-SX | 90.00 | 140.00 | 30.00 | |
| 10041751 | GE100-SX | 100.00 | 150.00 | 30.00 | |
| 10041753 | GE110-SX | 110.00 | 170.00 | 36.00 | |
| 10041755 | GE120-SX | 120.00 | 180.00 | 36.00 | |
| 10041757 | GE130-SX | 130.00 | 200.00 | 42.00 | |
| 10041759 | GE140-SX | 140.00 | 210.00 | 42.00 | |
| 10041761 | GE150-SX | 150.00 | 225.00 | 45.00 | |
| 10041763 | GE160-SX | 160.00 | 240.00 | 48.00 | |
| 10041765 | GE170-SX | 170.00 | 260.00 | 54.00 | |
| 10041767 | GE180-SX | 180.00 | 280.00 | 61.00 | |
| 10041769 | GE190-SX | 190.00 | 290.00 | 61.00 | |
| 10041771 | GE200-SX | 200.00 | 310.00 | 66.00 | |
