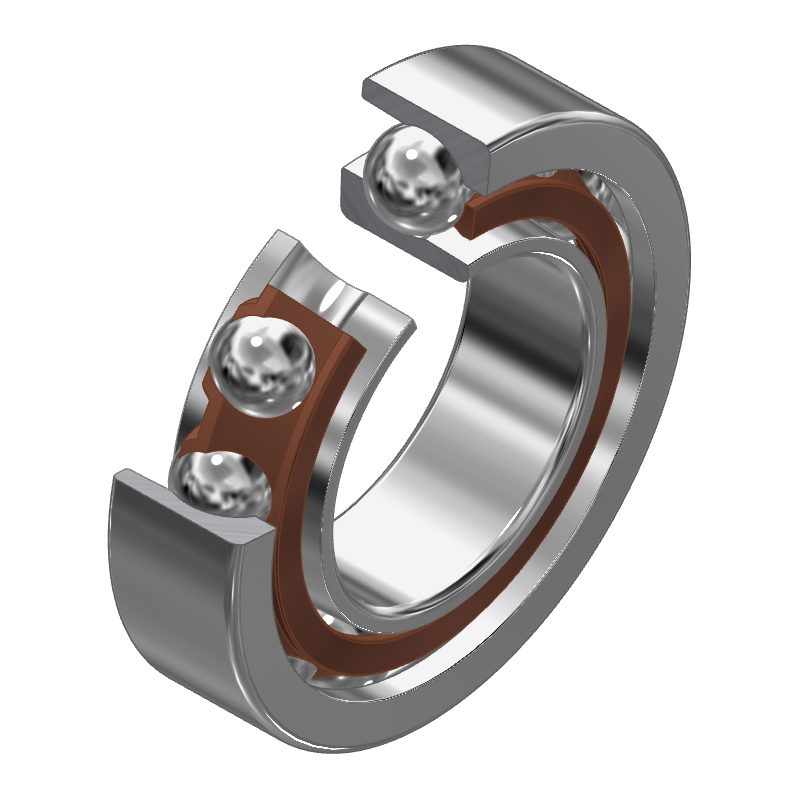

Single-row Angular contact ball bearing series 73 according to DIN 628-1:2008 / ISO 12044:2014

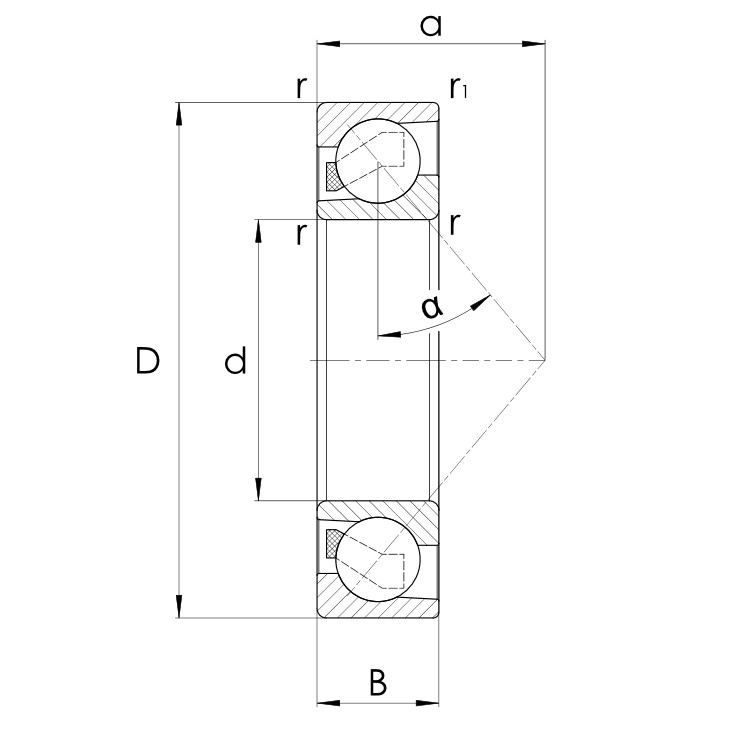

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10105478 | 7302-2RS-TVP | 15.00 | 42.00 | 13.00 | |
| 10105481 | 7303-2RS-TVP | 17.00 | 47.00 | 14.00 | |
| 10105484 | 7304-2RS-TVP | 20.00 | 52.00 | 15.00 | |
| 10105487 | 7305-2RS-TVP | 25.00 | 62.00 | 17.00 | |
| 10105490 | 7306-2RS-TVP | 30.00 | 72.00 | 19.00 | |
| 10105493 | 7307-2RS-TVP | 35.00 | 80.00 | 21.00 | |
| 10105496 | 7308-2RS-TVP | 40.00 | 90.00 | 23.00 | |
| 10105523 | 7321-MP | 105.00 | 225.00 | 49.00 | |
| 10105528 | 7328-MP | 140.00 | 300.00 | 62.00 | |
| 10105529 | 7330-MP | 150.00 | 320.00 | 65.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
