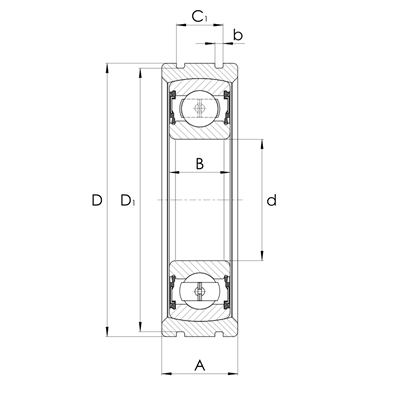

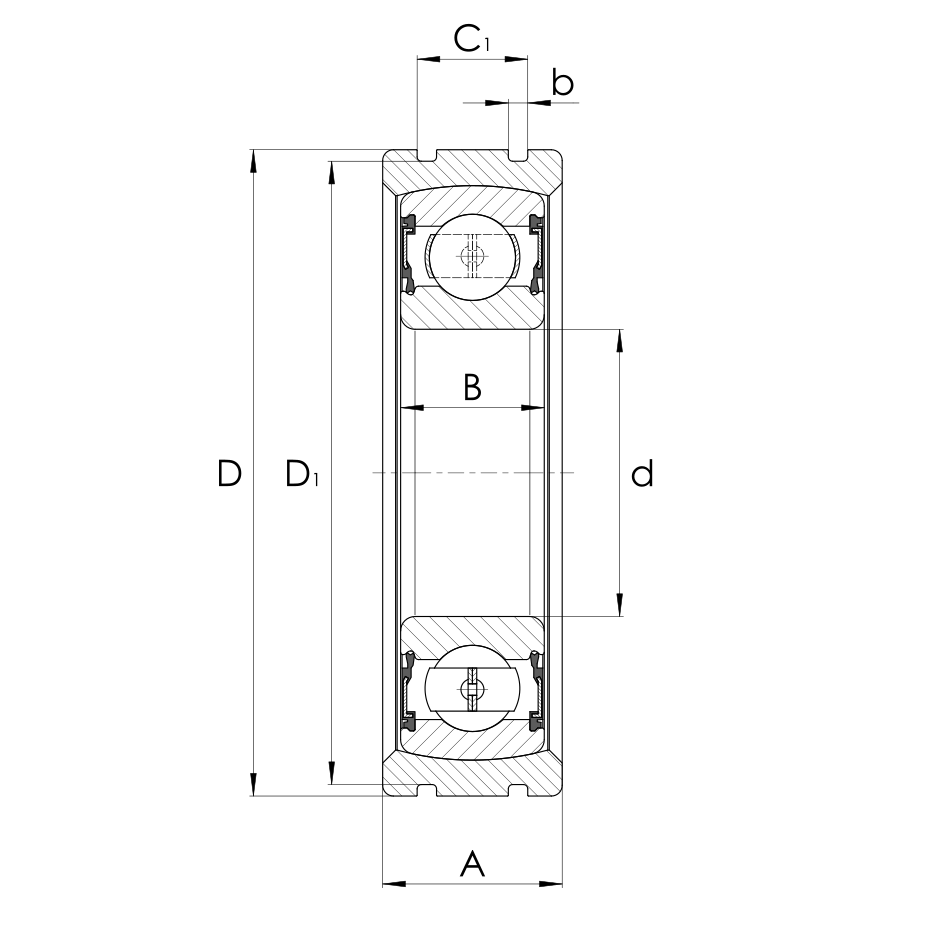

Insert bearing BE - Ring groove tolerances according to DIN 616 (Snap rings according to DIN 5417)
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | A | |||
| mm | mm | mm | |||
| 10146804 | BE20 | 20.00 | 55.00 | 16.00 | |
| 10146805 | BE25 | 25.00 | 62.00 | 17.00 | |
| 10146806 | BE30 | 30.00 | 72.00 | 21.00 | |
| 10146807 | BE35 | 35.00 | 80.00 | 21.00 | |
| 10146808 | BE40 | 40.00 | 90.00 | 25.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
These may also interest you.
Catalog
Currently, there isn't a catalog for Insert bearing available. Please use our online datasheet.
Service Bulletin
There are no documents for Insert bearing published, yet. Please contact your personal sales representative if you have further questions.
