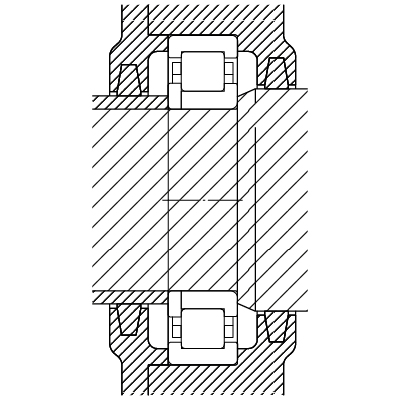

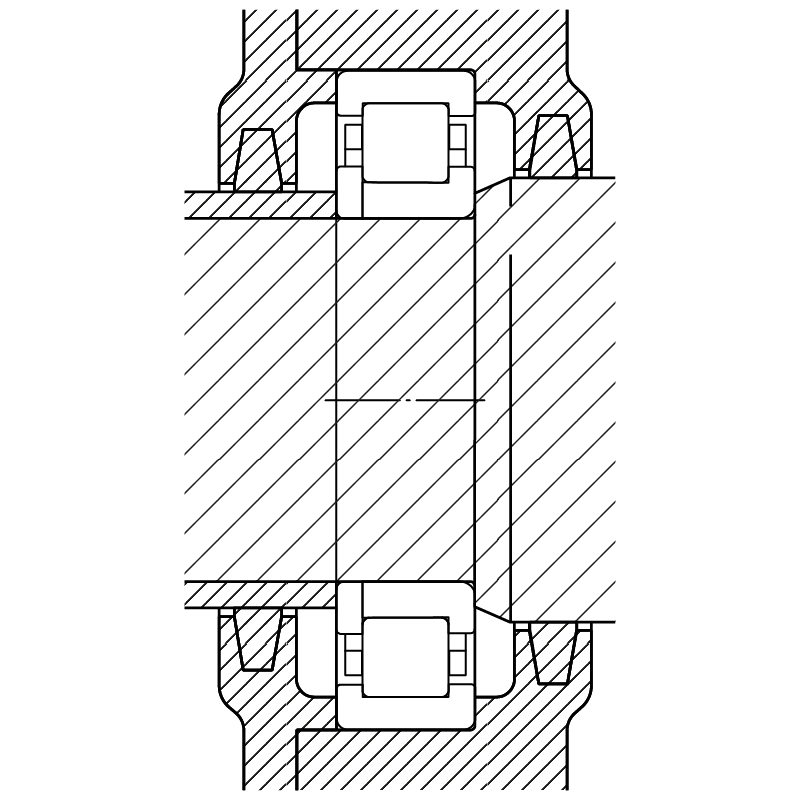

Cylindrical roller bearing NUP DIN 5412-1, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|

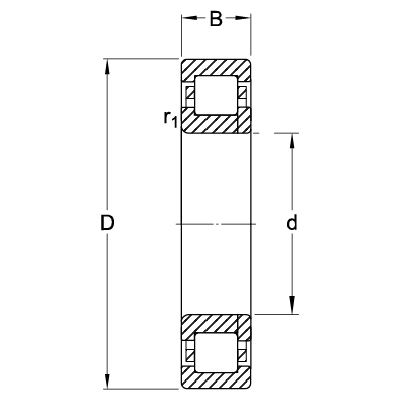

| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10127393 | NUP303-E | 17.00 | 47.00 | 14.00 | |
| 10127213 | NUP2203-E | 17.00 | 40.00 | 16.00 | |
| 10127159 | NUP203-E | 17.00 | 40.00 | 12.00 | |
| 10127162 | NUP204-E | 20.00 | 47.00 | 14.00 | |
| 10127396 | NUP304-E | 20.00 | 52.00 | 15.00 | |
| 10127309 | NUP2304-E | 20.00 | 52.00 | 21.00 | |
| 10127312 | NUP2305-E | 25.00 | 62.00 | 24.00 | |
| 10127219 | NUP2205-E | 25.00 | 52.00 | 18.00 | |
| 10127165 | NUP205-E | 25.00 | 52.00 | 15.00 | |
| 10127399 | NUP305-E | 25.00 | 62.00 | 17.00 | |
| 10127315 | NUP2306-E | 30.00 | 72.00 | 27.00 | |
| 10127168 | NUP206-E | 30.00 | 62.00 | 16.00 | |
| 10127222 | NUP2206-E | 30.00 | 62.00 | 20.00 | |
| 10127402 | NUP306-E | 30.00 | 72.00 | 19.00 | |
| 10127318 | NUP2307-E | 35.00 | 80.00 | 31.00 | |
| 10127171 | NUP207-E | 35.00 | 72.00 | 17.00 | |
| 10127225 | NUP2207-E | 35.00 | 72.00 | 23.00 | |
| 10127405 | NUP307-E | 35.00 | 80.00 | 21.00 | |
| 10127321 | NUP2308-E | 40.00 | 90.00 | 33.00 | |
| 10127174 | NUP208-E | 40.00 | 80.00 | 18.00 | |
| 10127228 | NUP2208-E | 40.00 | 80.00 | 23.00 | |
| 10127408 | NUP308-E | 40.00 | 90.00 | 23.00 | |
| 10127324 | NUP2309-E | 45.00 | 100.00 | 36.00 | |
| 10127177 | NUP209-E | 45.00 | 85.00 | 19.00 | |
| 10127231 | NUP2209-E | 45.00 | 85.00 | 23.00 | |
| 10127411 | NUP309-E | 45.00 | 100.00 | 25.00 | |
| 10127414 | NUP310-E | 50.00 | 110.00 | 27.00 | |
| 10127237 | NUP2210-E | 50.00 | 90.00 | 23.00 | |
| 10127327 | NUP2310-E | 50.00 | 110.00 | 40.00 | |
| 10127180 | NUP210-E | 50.00 | 90.00 | 20.00 | |
| 10127330 | NUP2311-E | 55.00 | 120.00 | 43.00 | |
| 10127240 | NUP2211-E | 55.00 | 100.00 | 25.00 | |
| 10127417 | NUP311-E | 55.00 | 120.00 | 29.00 | |
| 10127183 | NUP211-E | 55.00 | 100.00 | 21.00 | |
| 10127243 | NUP2212-E | 60.00 | 110.00 | 28.00 | |
| 10127420 | NUP312-E | 60.00 | 130.00 | 31.00 | |
| 10127186 | NUP212-E | 60.00 | 110.00 | 22.00 | |
| 10127333 | NUP2312-E | 60.00 | 130.00 | 46.00 | |
| 10127336 | NUP2313-E | 65.00 | 140.00 | 48.00 | |
| 10127246 | NUP2213-E | 65.00 | 120.00 | 31.00 | |
| 10127423 | NUP313-E | 65.00 | 140.00 | 33.00 | |
| 10127189 | NUP213-E | 65.00 | 120.00 | 23.00 | |
| 10127249 | NUP2214-E | 70.00 | 125.00 | 31.00 | |
| 10127339 | NUP2314-E | 70.00 | 150.00 | 51.00 | |
| 10127426 | NUP314-E | 70.00 | 150.00 | 35.00 | |
| 10127192 | NUP214-E | 70.00 | 125.00 | 24.00 | |
| 10127252 | NUP2215-E | 75.00 | 130.00 | 31.00 | |
| 10127342 | NUP2315-E | 75.00 | 160.00 | 55.00 | |
| 10127429 | NUP315-E | 75.00 | 160.00 | 37.00 | |
| 10127195 | NUP215-E | 75.00 | 130.00 | 25.00 | |
| 10127432 | NUP316-E | 80.00 | 170.00 | 39.00 | |
| 10127345 | NUP2316-E | 80.00 | 170.00 | 58.00 | |
| 10127255 | NUP2216-E | 80.00 | 140.00 | 33.00 | |
| 10127198 | NUP216-E | 80.00 | 140.00 | 26.00 | |
| 10127435 | NUP317-E | 85.00 | 180.00 | 41.00 | |
| 10127348 | NUP2317-E | 85.00 | 180.00 | 60.00 | |
| 10127258 | NUP2217-E | 85.00 | 150.00 | 36.00 | |
| 10127201 | NUP217-E | 85.00 | 150.00 | 28.00 | |
| 10127351 | NUP2318-E | 90.00 | 190.00 | 64.00 | |
| 10127438 | NUP318-E | 90.00 | 190.00 | 43.00 | |
| 10127261 | NUP2218-E | 90.00 | 160.00 | 40.00 | |
| 10127204 | NUP218-E | 90.00 | 160.00 | 30.00 | |
| 10127354 | NUP2319-E | 95.00 | 200.00 | 67.00 | |
| 10127264 | NUP2219-E | 95.00 | 170.00 | 43.00 | |
| 10127207 | NUP219-E | 95.00 | 170.00 | 32.00 | |
| 10127444 | NUP320-E | 100.00 | 215.00 | 47.00 | |
| 10127360 | NUP2320-E | 100.00 | 215.00 | 73.00 | |
| 10127270 | NUP2220-E | 100.00 | 180.00 | 46.00 | |
| 10127210 | NUP220-E | 100.00 | 180.00 | 34.00 | |
