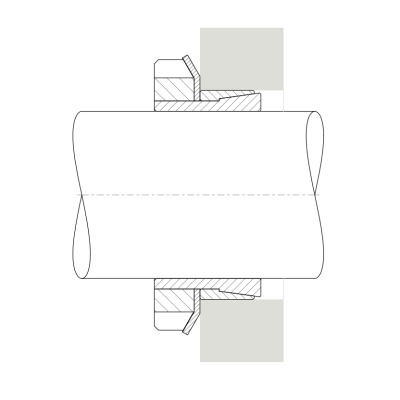

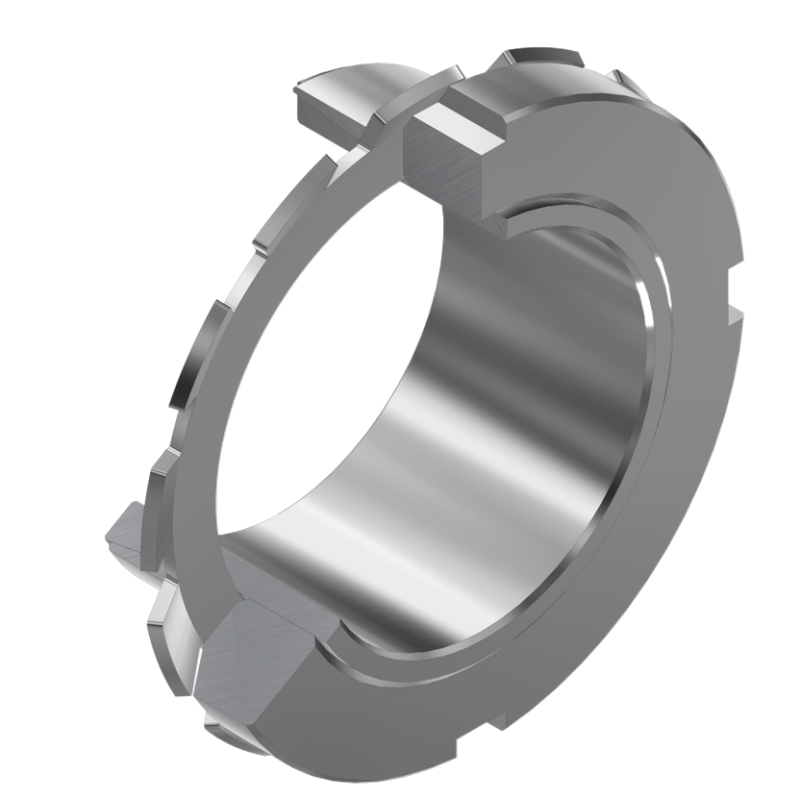

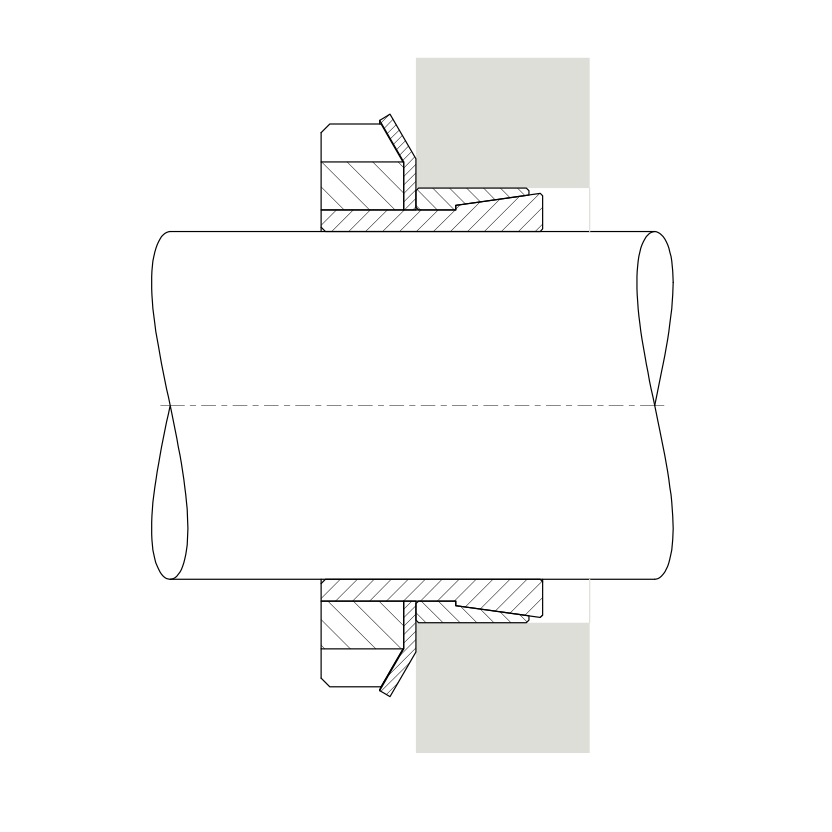

Spannsatz KLFC

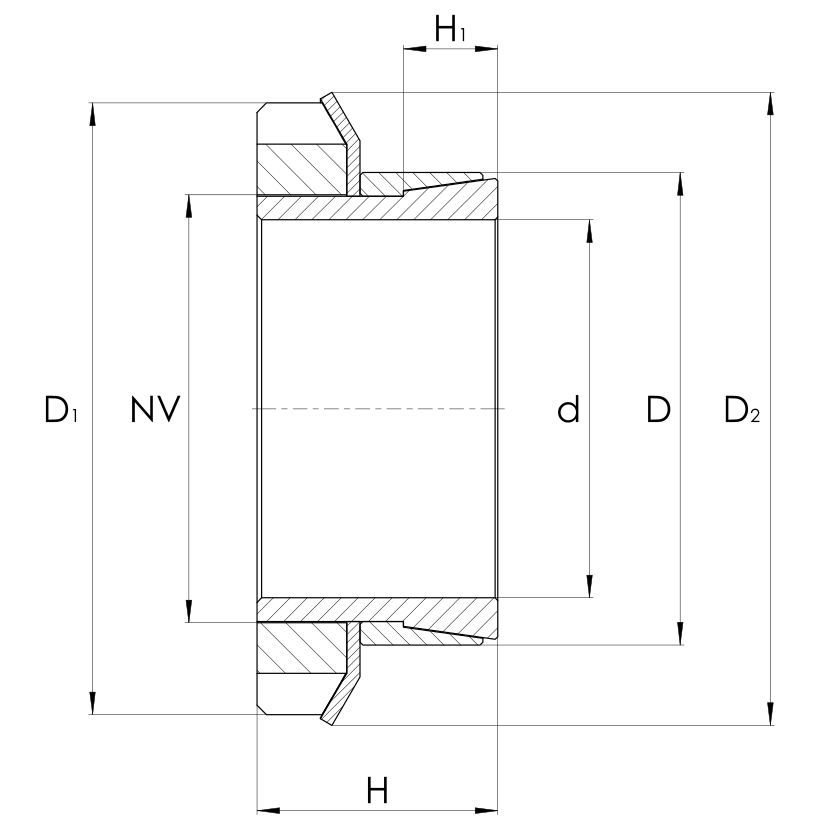

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | H | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | H | |||
| mm | mm | mm | |||
| 10043451 | KLFC014x25 | 14,00 | 25,00 | 17,00 | |
| 10043452 | KLFC015x25 | 15,00 | 25,00 | 17,00 | |
| 10043453 | KLFC016x25 | 16,00 | 25,00 | 17,00 | |
| 10043454 | KLFC018x30 | 18,00 | 30,00 | 17,50 | |
| 10043455 | KLFC019x30 | 19,00 | 30,00 | 18,00 | |
| 10043456 | KLFC020x30 | 20,00 | 30,00 | 18,00 | |
| 10043457 | KLFC024x35 | 24,00 | 35,00 | 18,00 | |
| 10043458 | KLFC025x35 | 25,00 | 35,00 | 18,00 | |
| 10043459 | KLFC028x40 | 28,00 | 40,00 | 18,00 | |
| 10043460 | KLFC030x40 | 30,00 | 40,00 | 20,00 | |
| 10043461 | KLFC035x45 | 35,00 | 45,00 | 22,00 | |
| 10043462 | KLFC040x50 | 40,00 | 50,00 | 25,00 | |
| 10043463 | KLFC045x55 | 45,00 | 55,00 | 26,00 | |
| 10043464 | KLFC048x60 | 48,00 | 60,00 | 26,00 | |
| 10043465 | KLFC050x60 | 50,00 | 60,00 | 26,00 | |
| 10043466 | KLFC055x65 | 55,00 | 65,00 | 27,00 | |
| 10043467 | KLFC060x70 | 60,00 | 70,00 | 29,00 | |
| 10043468 | KLFC070x84 | 70,00 | 84,00 | 31,50 | |
