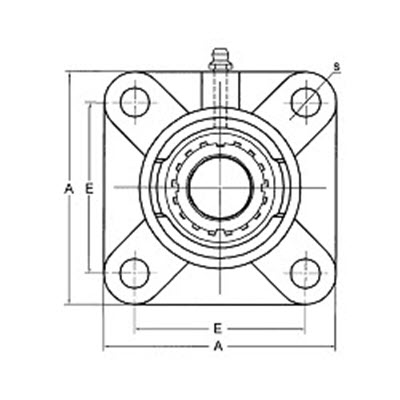

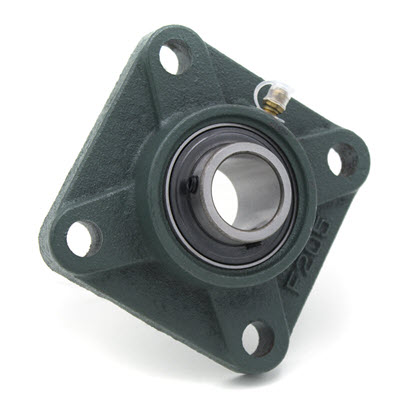

Flanschlagereinheit UKF 200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | B | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | B | A | |||
| mm | mm | mm | |||
| 30000619 | UKF205+H2305 | 20,00 | 27,00 | 95,00 | |
| 30000620 | UKF206+H2306 | 25,00 | 31,00 | 108,00 | |
| 30000621 | UKF207+H2307 | 30,00 | 34,00 | 117,00 | |
| 30000622 | UKF208+H2308 | 35,00 | 36,00 | 130,00 | |
| 30000623 | UKF209+H2309 | 40,00 | 38,00 | 137,00 | |
| 30000624 | UKF210+H2310 | 45,00 | 40,00 | 143,00 | |
| 30000625 | UKF211+H2311 | 50,00 | 43,00 | 162,00 | |
| 30000626 | UKF212+H2312 | 55,00 | 48,00 | 175,00 | |
| 30000627 | UKF213+H2313 | 60,00 | 50,00 | 187,00 | |
| 30000628 | UKF215+H2315 | 65,00 | 56,00 | 200,00 | |
| 30000629 | UKF216+H2316 | 70,00 | 58,00 | 208,00 | |
| 30000630 | UKF217+H2317 | 75,00 | 63,00 | 220,00 | |
| 30000631 | UKF218+H2318 | 80,00 | 68,00 | 235,00 | |
