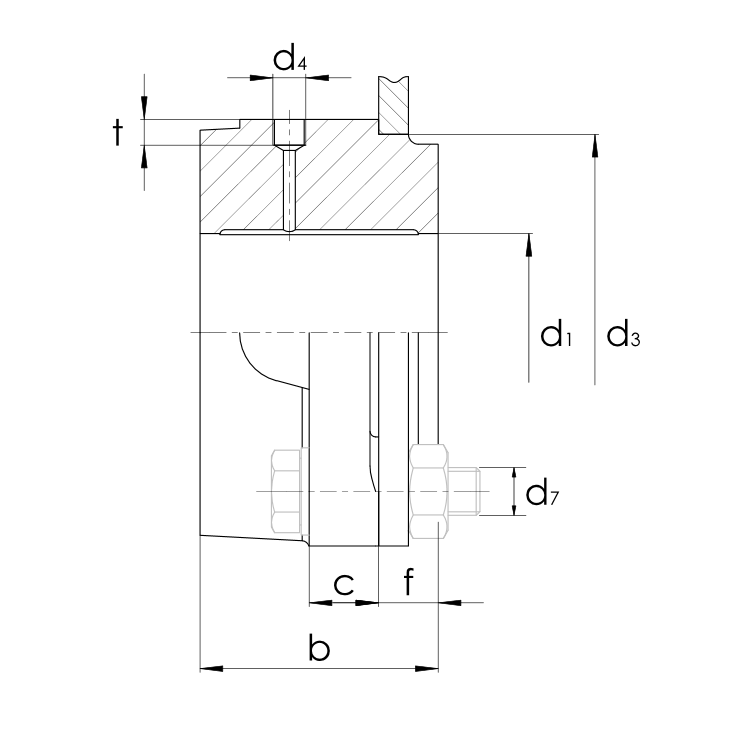

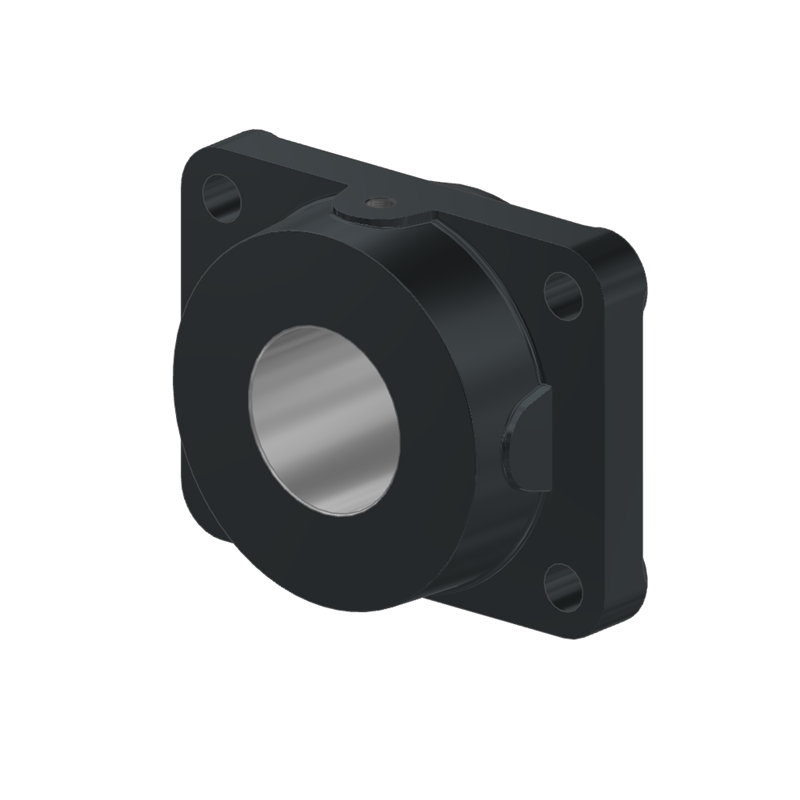

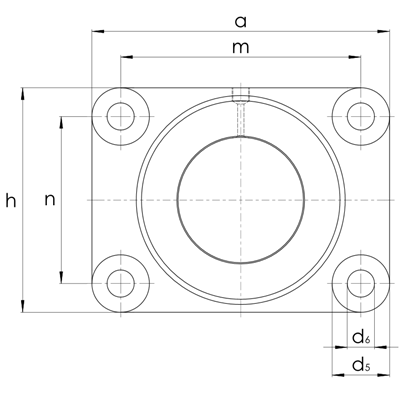

Gleitlagergehäuse DIN503 Form B ohne Buchse
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d1 | b | a | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d1 | b | a | |||
| mm | mm | mm | |||
| 10213491 | DIN503-B45 | 45,00 | 70,00 | 145,00 | |
| 10213492 | DIN503-B50 | 50,00 | 70,00 | 145,00 | |
| 10213493 | DIN503-B55 | 55,00 | 80,00 | 175,00 | |
| 10213494 | DIN503-B60 | 60,00 | 80,00 | 175,00 | |
| 10213495 | DIN503-B65 | 65,00 | 90,00 | 195,00 | |
| 10213496 | DIN503-B70 | 70,00 | 90,00 | 195,00 | |
| 10213497 | DIN503-B75 | 75,00 | 100,00 | 220,00 | |
| 10213498 | DIN503-B80 | 80,00 | 100,00 | 220,00 | |
| 10213499 | DIN503-B90 | 90,00 | 100,00 | 240,00 | |
| 10213500 | DIN503-B100 | 100,00 | 120,00 | 260,00 | |
| 10213501 | DIN503-B110 | 110,00 | 120,00 | 260,00 | |
| 10213502 | DIN503-B120 | 120,00 | 120,00 | 285,00 | |
| 10213503 | DIN503-B125 | 125,00 | 120,00 | 285,00 | |
| 10213504 | DIN503-B130 | 130,00 | 120,00 | 285,00 | |
| 10213505 | DIN503-B140 | 140,00 | 140,00 | 310,00 | |
| 10213506 | DIN503-B150 | 150,00 | 140,00 | 310,00 | |
| 10213507 | DIN503-B160 | 160,00 | 160,00 | 330,00 | |
| 10213508 | DIN503-B180 | 180,00 | 160,00 | 330,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
