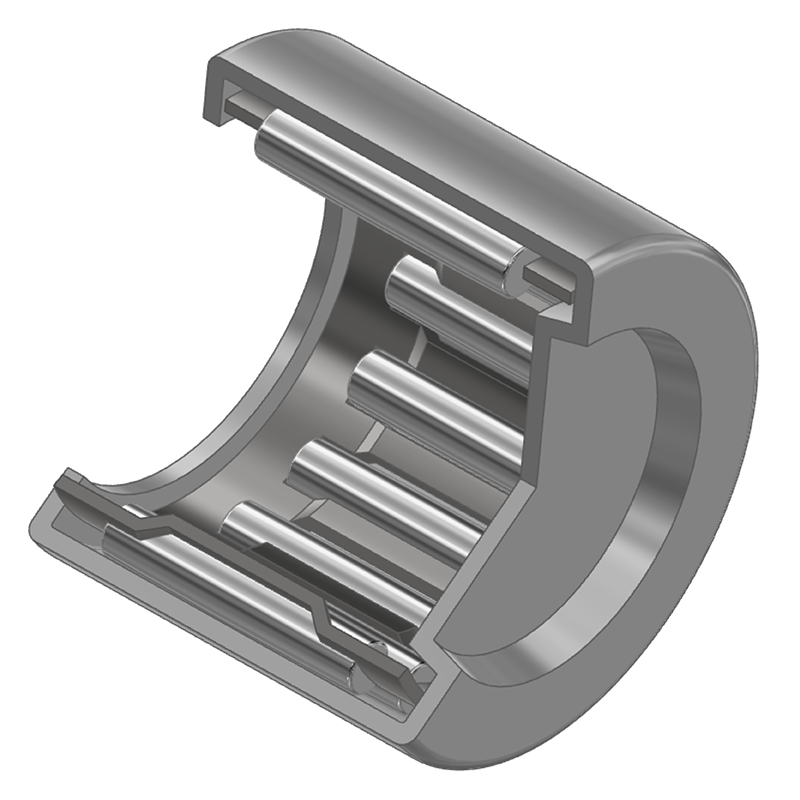

Nadelbüchse BCE

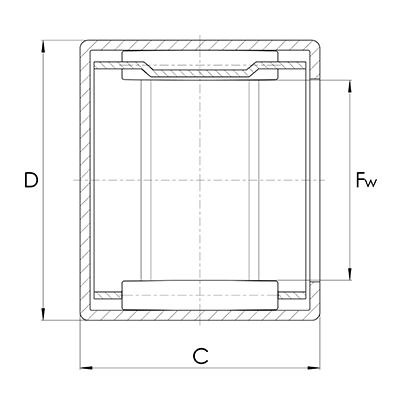

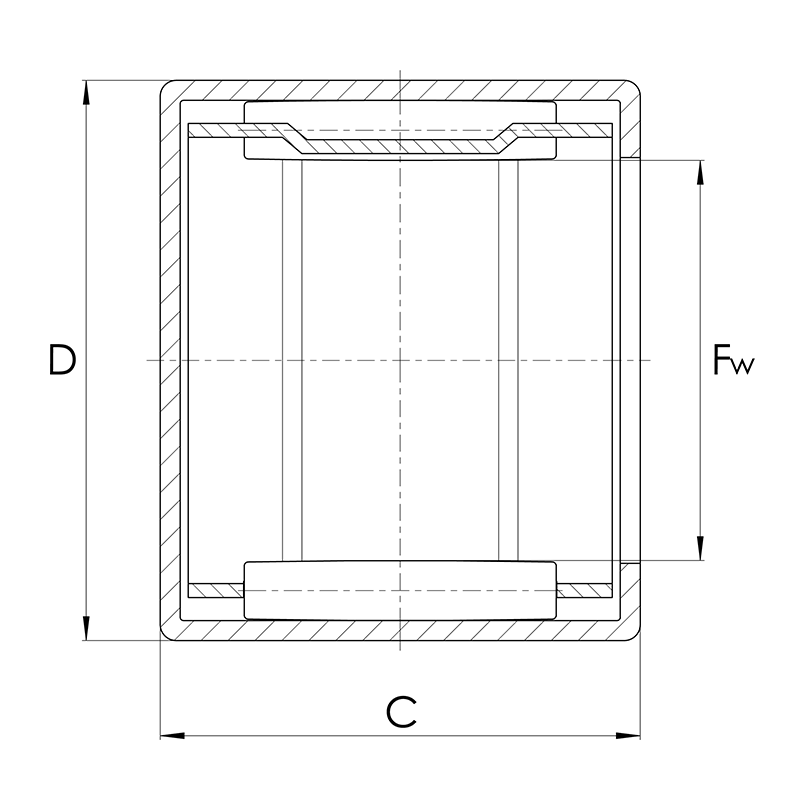

Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10323836 BCE24-TN 3,18 6,35 6,35 10323844 BCE34-TN 4,76 8,73 6,35 10323847 BCE36-TN 4,76 8,73 9,53 10323848 BCE44 6,35 11,11 6,35 10323850 BCE45 6,35 11,11 7,94 10323851 BCE47 6,35 11,11 11,11 10323853 BCE55 7,94 12,70 7,94 10323854 BCE57 7,94 12,70 11,11 10323856 BCE59 7,94 12,70 14,29 10323861 BCE67 9,53 14,29 11,11 10323857 BCE610 9,53 14,29 15,88 10323858 BCE65 9,53 14,29 7,94 10323859 BCE66 9,53 14,29 9,53 10323862 BCE68 9,53 14,29 12,70 10323864 BCE78 11,11 15,88 12,70 10323865 BCE810 12,70 17,46 15,88 10323866 BCE812 12,70 17,46 19,05 10323867 BCE85 12,70 17,46 7,94 10323868 BCE86 12,70 17,46 9,53 10323869 BCE87 12,70 17,46 11,11 10323870 BCE88 12,70 17,46 12,70 10323872 BCE910 14,29 19,05 15,88 10323873 BCE912 14,29 19,05 19,05 10323874 BCE96 14,29 19,05 9,53 10323875 BCE98 14,29 19,05 12,70 10323793 BCE1012 15,88 20,64 19,05 10323792 BCE1010 15,88 20,64 15,88 10323794 BCE105 15,88 20,64 7,94 10323795 BCE107 15,88 20,64 11,11 10323796 BCE107-1/2 15,88 20,64 11,91 10323797 BCE108 15,88 20,64 12,70 10323798 BCE1110 17,46 22,23 15,88 10323799 BCE1112 17,46 22,23 19,05 10323800 BCE118 17,46 22,23 12,70 10323805 BCE128 19,05 25,40 12,70 10323804 BCE126 19,05 25,40 9,53 10323803 BCE1212 19,05 25,40 19,05 10323801 BCE1210 19,05 25,40 15,88 10323807 BCE1312 20,64 26,99 19,05 10323808 BCE138 20,64 26,99 12,70 10323809 BCE1412 22,23 28,58 19,05 10323810 BCE1416 22,23 28,58 25,40 10323811 BCE146 22,23 28,58 9,53 10323812 BCE148 22,23 28,58 12,70 10323813 BCE1516 23,81 30,16 25,40 10323814 BCE1612 25,40 31,75 19,05 10323815 BCE1616 25,40 31,75 25,40 10323816 BCE166 25,40 31,75 9,53 10323817 BCE168 25,40 31,75 12,70 10323821 BCE188 28,58 34,93 12,70 10323820 BCE186 28,58 34,93 9,53 10323819 BCE1816 28,58 34,93 25,40 10323818 BCE1812 28,58 34,93 19,05 10323822 BCE2010 31,75 38,10 15,88 10323823 BCE2012 31,75 38,10 19,05 10323824 BCE2016 31,75 38,10 25,40 10323825 BCE2020 31,75 38,10 31,75 10323826 BCE208 31,75 38,10 12,70 10323827 BCE2212 34,93 41,28 19,05 10323828 BCE2220 34,93 41,28 31,75 10323829 BCE228 34,93 41,28 12,70 10323834 BCE2420 38,10 47,63 31,75 10323830 BCE2410 38,10 47,63 15,88 10323831 BCE2412 38,10 47,63 19,05 10323832 BCE2414 38,10 47,63 22,23 10323833 BCE2416 38,10 47,63 25,40 10323835 BCE248 38,10 47,63 12,70 10323837 BCE2610 41,28 50,80 15,88 10323838 BCE2620 41,28 50,80 31,75 10323839 BCE2812 44,45 53,98 19,05 10323840 BCE2816 44,45 53,98 25,40 10323841 BCE2824 44,45 53,98 38,10 10323842 BCE3216 50,80 60,33 25,40 10323843 BCE3410 53,98 63,50 15,88 10323846 BCE3616 57,15 66,68 25,40 10323845 BCE3612 57,15 66,68 19,05 10323849 BCE4412 69,85 79,38 19,05 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
BCE..-P

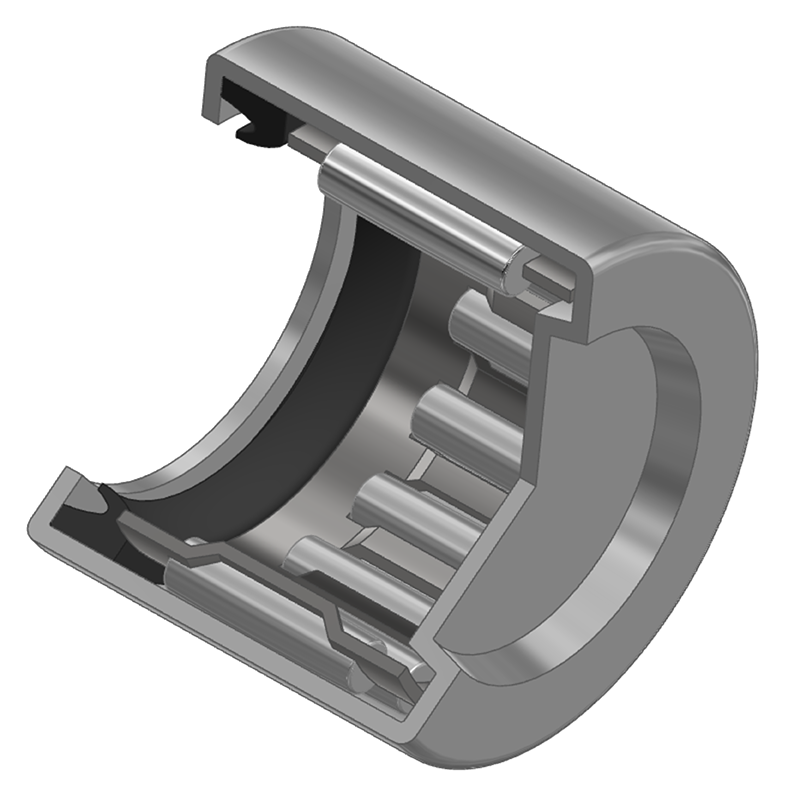

Nadelbüchse BCE..-P

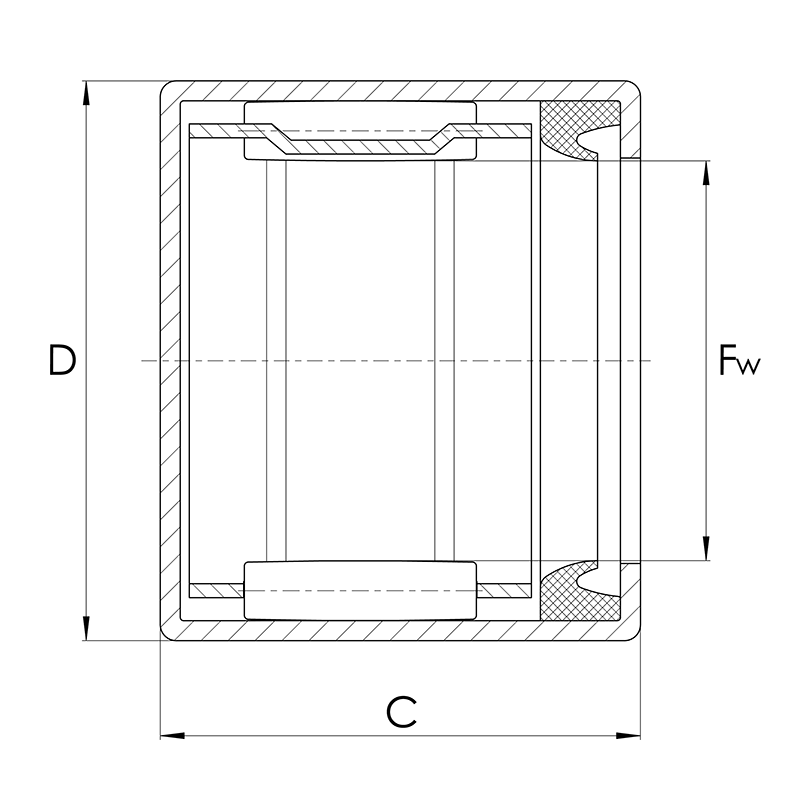

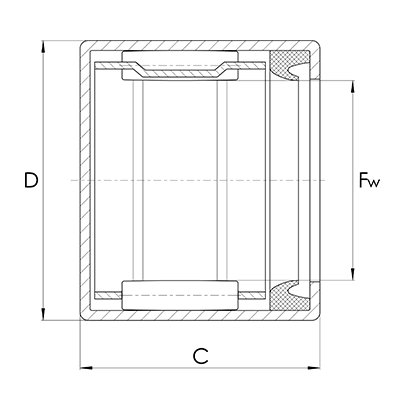

Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10323852 BCE48-P 6,35 11,11 12,70 10323855 BCE58-P 7,94 12,70 12,70 10323860 BCE66-P 9,53 14,29 9,53 10323863 BCE69-P 9,53 14,29 14,29 10323871 BCE89-P 12,70 17,46 14,29 10323802 BCE1211-P 19,05 25,40 17,46 10323806 BCE129-P 19,05 25,40 14,29 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
