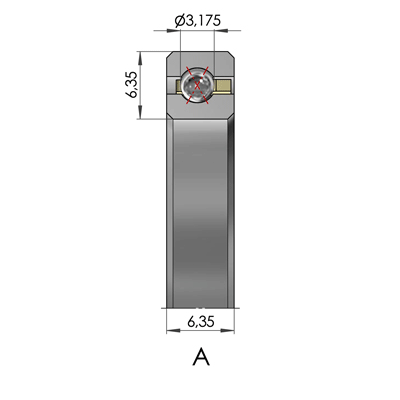

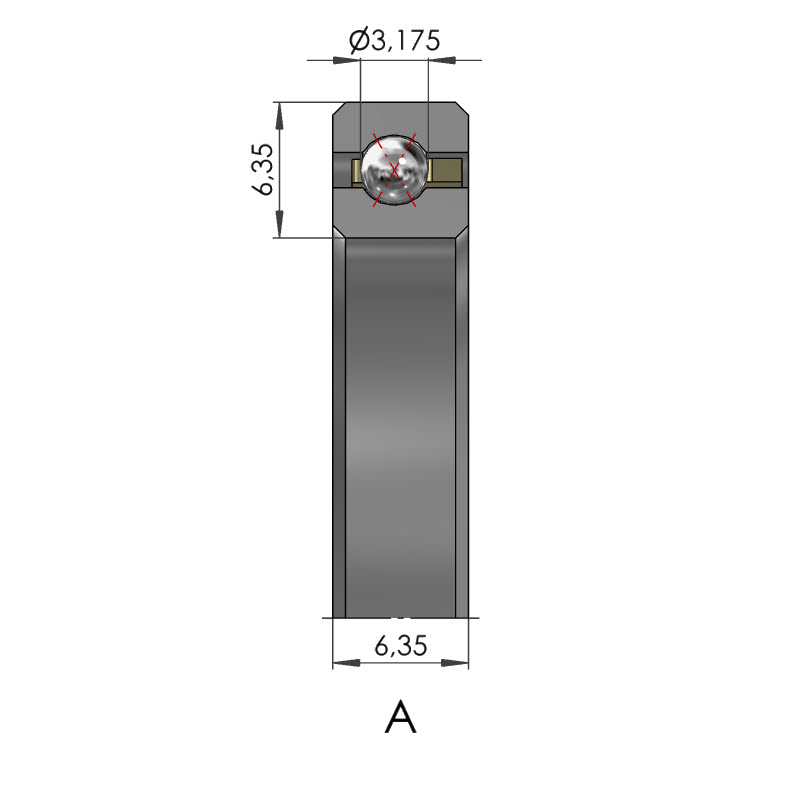

Thin section four-point bearing - CSXA

Thin section bearing - CSXA
Thin section bearing - CSXA

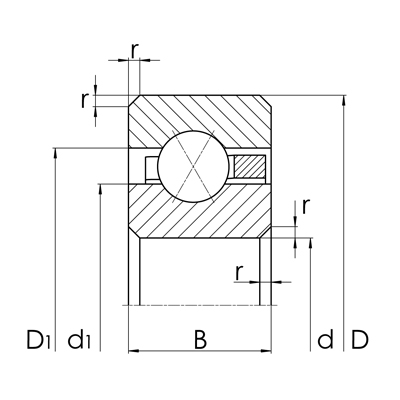

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10147648	CSXA020	50.80	63.50	6.35
10147649	CSXA025	63.50	76.20	6.35
10157241	CSXA027	69.85	82.55	6.35
10147650	CSXA030	76.20	88.90	6.35
10147651	CSXA035	88.90	101.60	6.35
10147652	CSXA040	101.60	114.30	6.35
10157243	CSXA042	107.95	120.65	6.35
10147653	CSXA045	114.30	127.00	6.35
10147654	CSXA047	120.65	133.35	6.35
10147655	CSXA050	127.00	139.70	6.35
10147656	CSXA055	139.70	152.40	6.35
10147657	CSXA060	152.40	165.10	6.35
10147658	CSXA065	165.10	177.80	6.35
10147659	CSXA070	177.80	190.50	6.35
10147660	CSXA075	190.50	203.20	6.35
10157245	CSXA080	203.20	215.90	6.35
10157247	CSXA090	228.60	241.30	6.35
10157249	CSXA100	254.00	266.70	6.35
10157251	CSXA110	279.40	292.10	6.35
10157253	CSXA120	304.80	317.50	6.35

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
