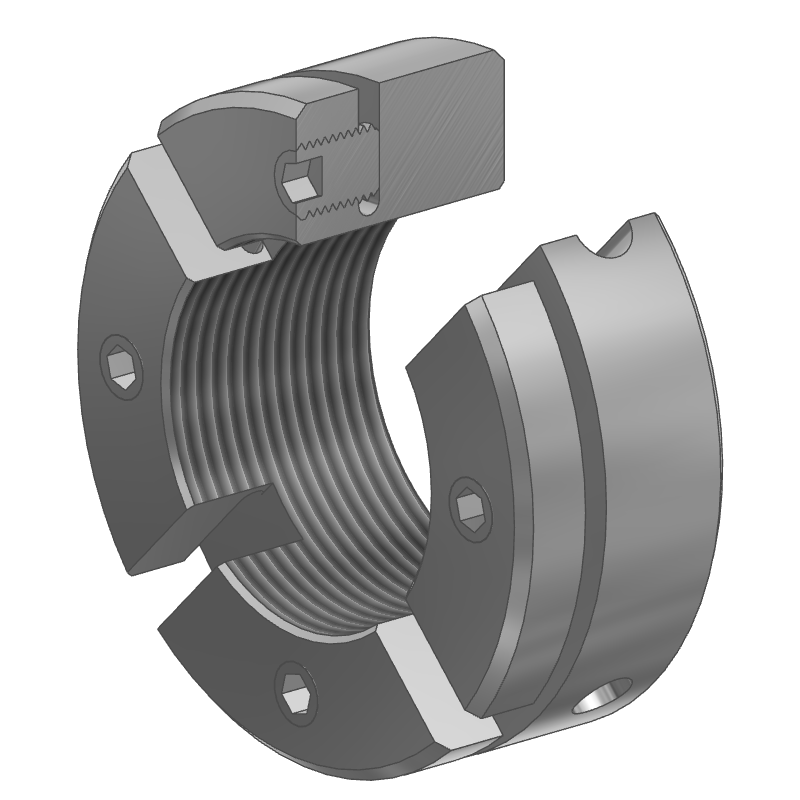

Precision groove lock nut AM - axial clampable

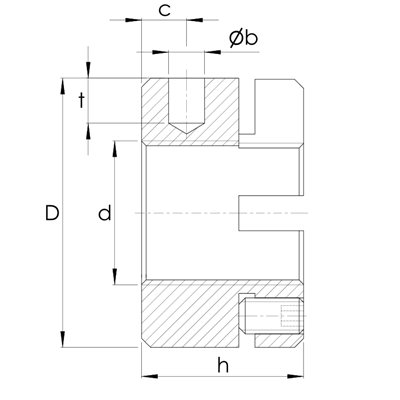

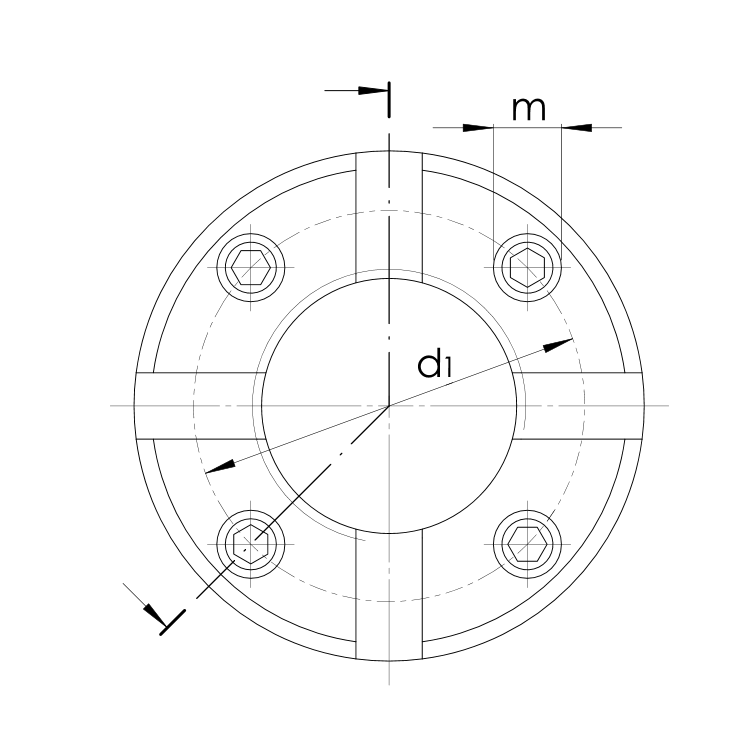

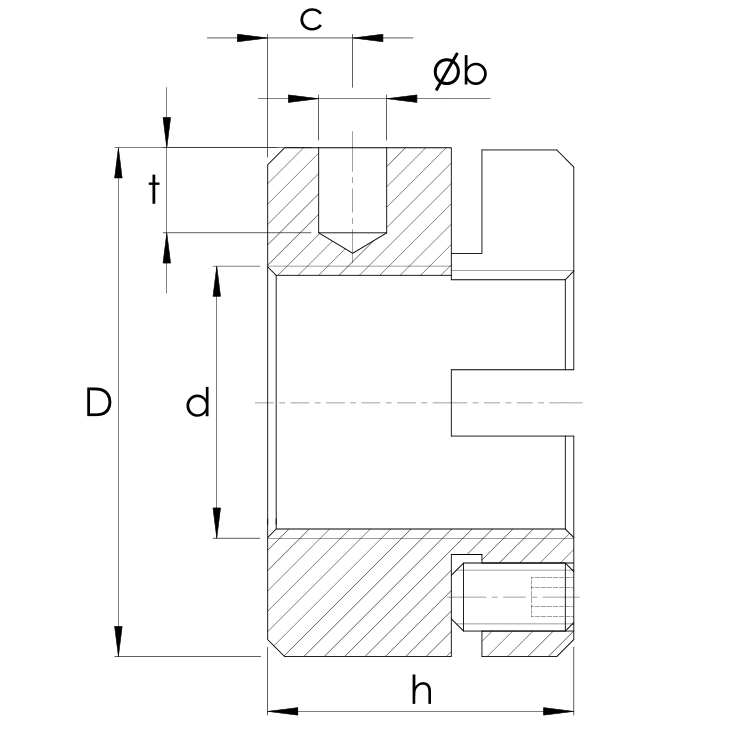

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | h | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | h | |||
| mm | mm | mm | |||
| 10315547 | AM100 | M100x2 | 130.00 | 30.00 | |
| 10315548 | AM110 | M110x2 | 140.00 | 30.00 | |
| 10315549 | AM120 | M120x2 | 155.00 | 30.00 | |
| 10315550 | AM130 | M130x2 | 165.00 | 30.00 | |
| 10213554 | AM15 | M15x1 | 30.00 | 18.00 | |
| 10213557 | AM17 | M17x1 | 32.00 | 18.00 | |
| 10213560 | AM20 | M20x1 | 38.00 | 18.00 | |
| 10213563 | AM25 | M25x1,5 | 45.00 | 20.00 | |
| 10213566 | AM30 | M30x1,5 | 52.00 | 20.00 | |
| 10315543 | AM30/65 | M30x1,5 | 65.00 | 30.00 | |
| 10213572 | AM35/58 | M35x1,5 | 58.00 | 20.00 | |
| 10213569 | AM35 | M35x1,5 | 65.00 | 22.00 | |
| 10213575 | AM40 | M40x1,5 | 65.00 | 22.00 | |
| 10315544 | AM40/85 | M40x1,5 | 85.00 | 32.00 | |
| 10213578 | AM45 | M45x1,5 | 70.00 | 22.00 | |
| 10213581 | AM50 | M50x1,5 | 75.00 | 25.00 | |
| 10231188 | AM55 | M55x2 | 85.00 | 26.00 | |
| 10213584 | AM60 | M60x2 | 90.00 | 26.00 | |
| 10231194 | AM65 | M65x2 | 100.00 | 26.00 | |
| 10213587 | AM70 | M70x2 | 100.00 | 28.00 | |
| 10231189 | AM75 | M75x2 | 115.00 | 30.00 | |
| 10315545 | AM80 | M80x2 | 110.00 | 30.00 | |
| 10315546 | AM85 | M85x2 | 115.00 | 30.00 | |
| 10213590 | AM90 | M90x2 | 130.00 | 32.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
