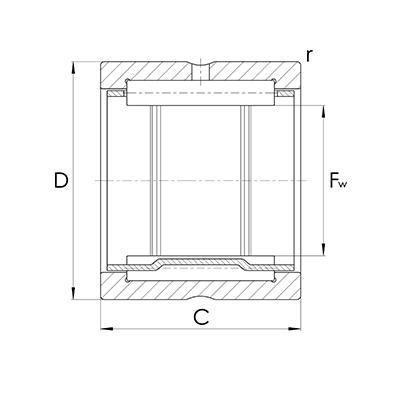

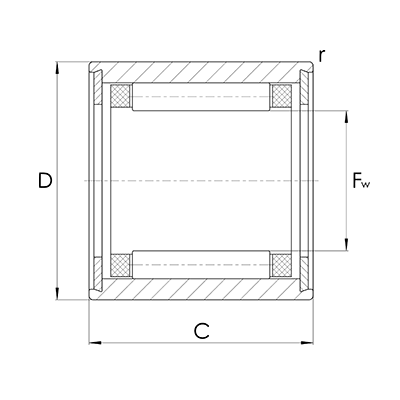

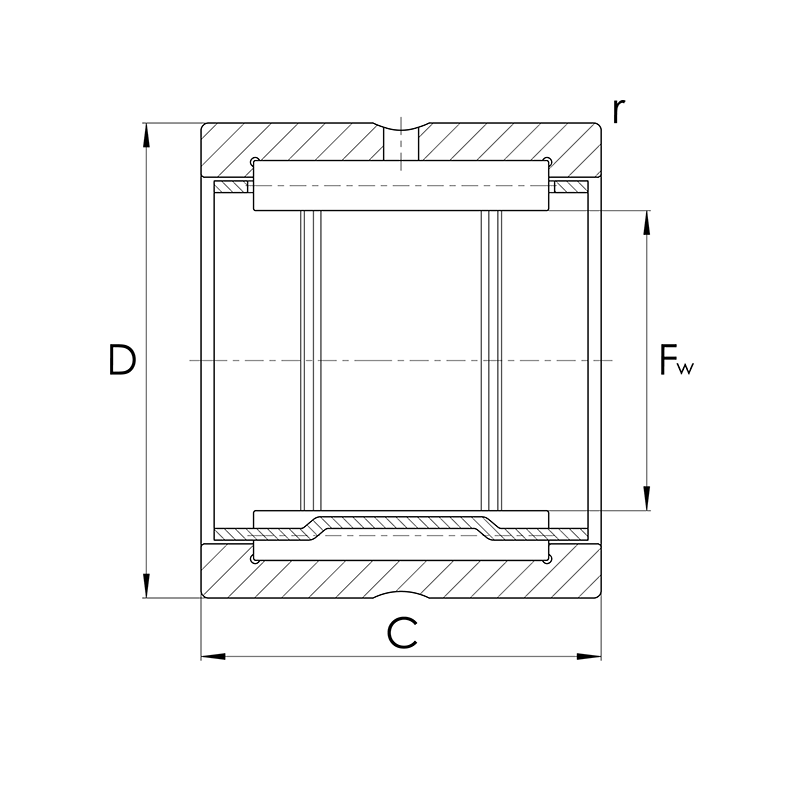

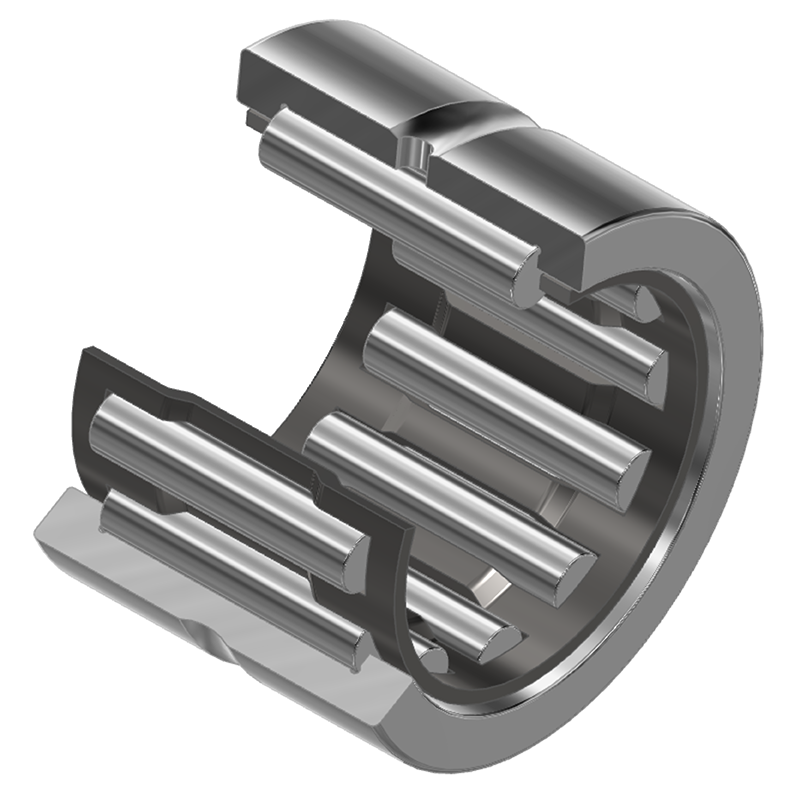

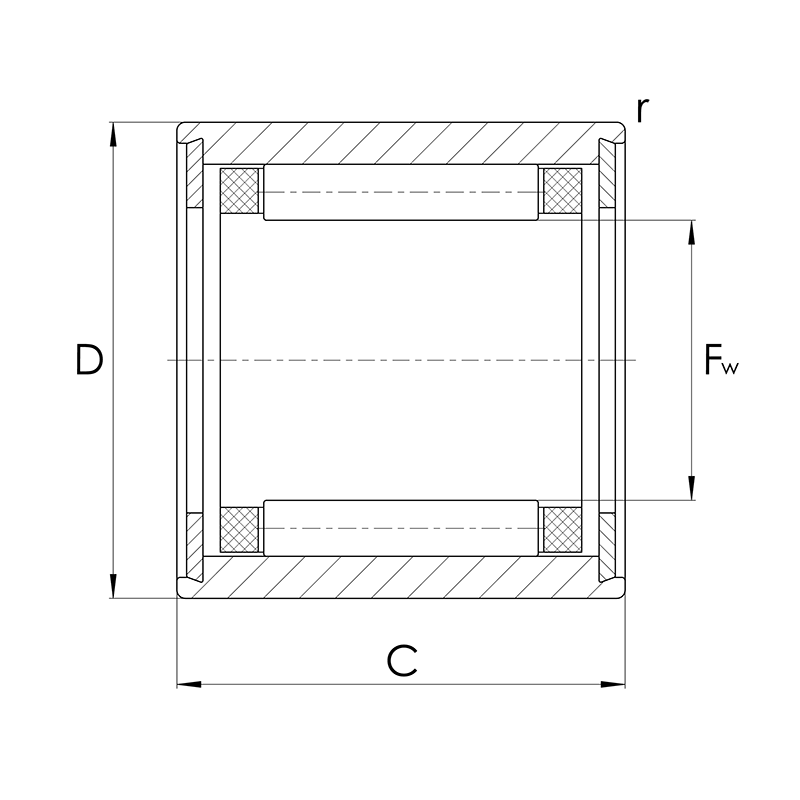

Nadellager NK, Abmessungen nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10041049 | NK5/10 | 5,00 | 10,00 | 10,00 | |
| 10041050 | NK5/12 | 5,00 | 10,00 | 12,00 | |
| 10041055 | NK6/10 | 6,00 | 12,00 | 10,00 | |
| 10041056 | NK6/12 | 6,00 | 12,00 | 12,00 | |
| 10041063 | NK7/10 | 7,00 | 14,00 | 10,00 | |
| 10041064 | NK7/12 | 7,00 | 14,00 | 12,00 | |
| 10041071 | NK8/12 | 8,00 | 15,00 | 12,00 | |
| 10041072 | NK8/16 | 8,00 | 15,00 | 16,00 | |
| 10041077 | NK9/12 | 9,00 | 16,00 | 12,00 | |
| 10041078 | NK9/16 | 9,00 | 16,00 | 16,00 | |
| 10040991 | NK10/12 | 10,00 | 17,00 | 12,00 | |
| 10040992 | NK10/16 | 10,00 | 17,00 | 16,00 | |
| 10040999 | NK12/12 | 12,00 | 19,00 | 12,00 | |
| 10041000 | NK12/16 | 12,00 | 19,00 | 16,00 | |
| 10041001 | NK14/16 | 14,00 | 22,00 | 16,00 | |
| 10041002 | NK14/20 | 14,00 | 22,00 | 20,00 | |
| 10318345 | NK14/16-D | 14,00 | 22,00 | 16,00 | |
| 10041003 | NK15/16 | 15,00 | 23,00 | 16,00 | |
| 10041004 | NK15/20 | 15,00 | 23,00 | 20,00 | |
| 10041005 | NK16/16 | 16,00 | 24,00 | 16,00 | |
| 10041006 | NK16/20 | 16,00 | 24,00 | 20,00 | |
| 10041007 | NK17/16 | 17,00 | 25,00 | 16,00 | |
| 10041008 | NK17/20 | 17,00 | 25,00 | 20,00 | |
| 10041009 | NK18/16 | 18,00 | 26,00 | 16,00 | |
| 10041010 | NK18/20 | 18,00 | 26,00 | 20,00 | |
| 10041011 | NK19/16 | 19,00 | 27,00 | 16,00 | |
| 10041012 | NK19/20 | 19,00 | 27,00 | 20,00 | |
| 10041013 | NK20/16 | 20,00 | 28,00 | 16,00 | |
| 10041014 | NK20/20 | 20,00 | 28,00 | 20,00 | |
| 10318384 | NK20/16-D | 20,00 | 28,00 | 16,00 | |
| 10041015 | NK21/16 | 21,00 | 29,00 | 16,00 | |
| 10041016 | NK21/20 | 21,00 | 29,00 | 20,00 | |
| 10041017 | NK22/16 | 22,00 | 30,00 | 16,00 | |
| 10041018 | NK22/20 | 22,00 | 30,00 | 20,00 | |
| 10041019 | NK24/16 | 24,00 | 32,00 | 16,00 | |
| 10041020 | NK24/20 | 24,00 | 32,00 | 20,00 | |
| 10041021 | NK25/16 | 25,00 | 33,00 | 16,00 | |
| 10041022 | NK25/20 | 25,00 | 33,00 | 20,00 | |
| 10041023 | NK26/16 | 26,00 | 34,00 | 16,00 | |
| 10041024 | NK26/20 | 26,00 | 34,00 | 20,00 | |
| 10041025 | NK28/20 | 28,00 | 37,00 | 20,00 | |
| 10041026 | NK28/30 | 28,00 | 37,00 | 30,00 | |
| 10318385 | NK28/20-D | 28,00 | 37,00 | 20,00 | |
| 10041028 | NK29/30 | 29,00 | 38,00 | 30,00 | |
| 10146189 | NK30/30 | 30,00 | 40,00 | 30,00 | |
| 10146718 | NK30/20 | 30,00 | 40,00 | 20,00 | |
| 10041032 | NK32/30 | 32,00 | 42,00 | 30,00 | |
| 10041034 | NK35/30 | 35,00 | 45,00 | 30,00 | |
| 10041035 | NK37/20 | 37,00 | 47,00 | 20,00 | |
| 10041036 | NK37/30 | 37,00 | 47,00 | 30,00 | |
| 10318388 | NK37/20-D | 37,00 | 47,00 | 20,00 | |
| 10041037 | NK38/20 | 38,00 | 48,00 | 20,00 | |
| 10041038 | NK38/30 | 38,00 | 48,00 | 30,00 | |
| 10041040 | NK40/30 | 40,00 | 50,00 | 30,00 | |
| 10041041 | NK42/20 | 42,00 | 52,00 | 20,00 | |
| 10041042 | NK42/30 | 42,00 | 52,00 | 30,00 | |
| 10041043 | NK43/20 | 43,00 | 53,00 | 20,00 | |
| 10041044 | NK43/30 | 43,00 | 53,00 | 30,00 | |
| 10041047 | NK47/20 | 47,00 | 57,00 | 20,00 | |
| 10041048 | NK47/30 | 47,00 | 57,00 | 30,00 | |
| 10041053 | NK55/25 | 55,00 | 68,00 | 25,00 | |
| 10041054 | NK55/35 | 55,00 | 68,00 | 35,00 | |
| 10318389 | NK55/25-D | 55,00 | 68,00 | 25,00 | |
| 10041058 | NK60/35 | 60,00 | 72,00 | 35,00 | |
| 10136872 | NK60/25 | 60,00 | 72,00 | 25,00 | |
| 10041059 | NK65/25 | 65,00 | 78,00 | 25,00 | |
| 10041060 | NK65/35 | 65,00 | 78,00 | 35,00 | |
| 10041061 | NK68/25 | 68,00 | 82,00 | 25,00 | |
| 10041062 | NK68/35 | 68,00 | 82,00 | 35,00 | |
| 10041065 | NK70/25 | 70,00 | 85,00 | 25,00 | |
| 10041066 | NK70/35 | 70,00 | 85,00 | 35,00 | |
| 10041067 | NK73/25 | 73,00 | 90,00 | 25,00 | |
| 10041068 | NK73/35 | 73,00 | 90,00 | 35,00 | |
| 10041069 | NK75/25 | 75,00 | 92,00 | 25,00 | |
| 10041070 | NK75/35 | 75,00 | 92,00 | 35,00 | |
| 10041073 | NK80/25 | 80,00 | 95,00 | 25,00 | |
| 10041074 | NK80/35 | 80,00 | 95,00 | 35,00 | |
| 10041075 | NK85/25 | 85,00 | 105,00 | 25,00 | |
| 10041076 | NK85/35 | 85,00 | 105,00 | 35,00 | |
| 10041079 | NK90/25 | 90,00 | 110,00 | 25,00 | |
| 10041080 | NK90/35 | 90,00 | 110,00 | 35,00 | |
| 10041081 | NK95/26 | 95,00 | 115,00 | 26,00 | |
| 10041082 | NK95/36 | 95,00 | 115,00 | 36,00 | |
| 10040993 | NK100/26 | 100,00 | 120,00 | 26,00 | |
| 10040994 | NK100/36 | 100,00 | 120,00 | 36,00 | |
| 10040995 | NK105/26 | 105,00 | 125,00 | 26,00 | |
| 10040996 | NK105/36 | 105,00 | 125,00 | 36,00 | |
| 10040997 | NK110/30 | 110,00 | 130,00 | 30,00 | |
| 10040998 | NK110/40 | 110,00 | 130,00 | 40,00 | |
