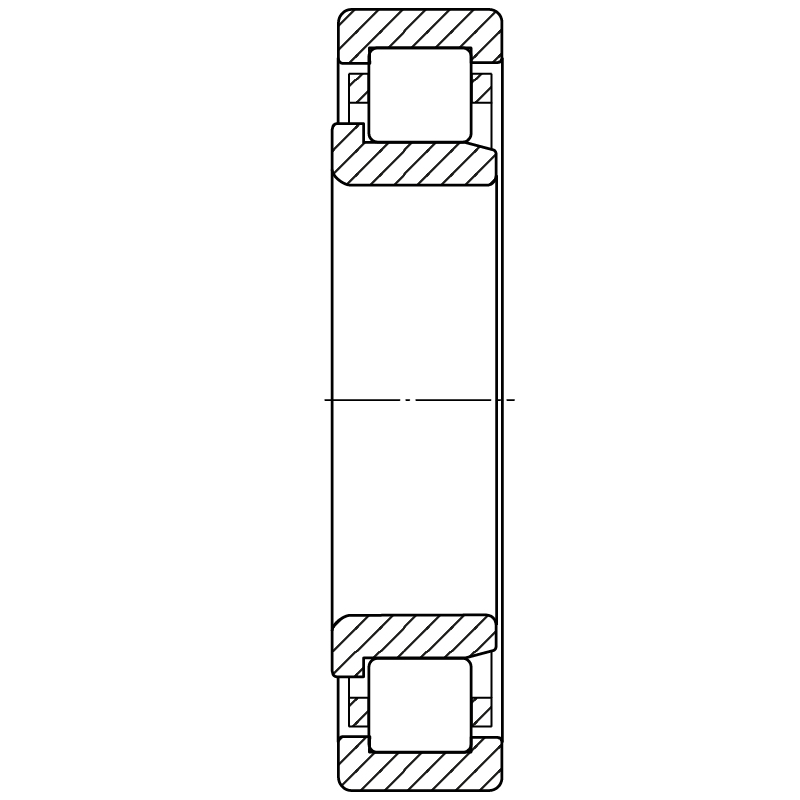

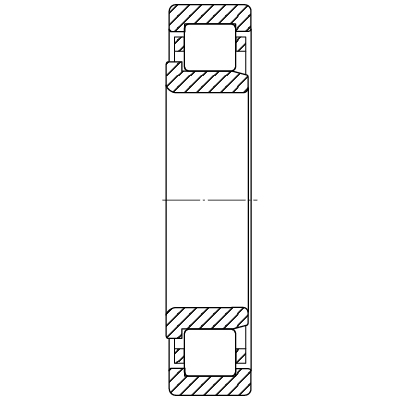

Cylindrical roller bearing N DIN 5412-1, DIN 616 ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10126787 | NJ303-E | 17.00 | 47.00 | 14.00 | |
| 10126607 | NJ2203-E | 17.00 | 40.00 | 16.00 | |
| 10126553 | NJ203-E | 17.00 | 40.00 | 12.00 | |
| 10126556 | NJ204-E | 20.00 | 47.00 | 14.00 | |
| 10126790 | NJ304-E | 20.00 | 52.00 | 15.00 | |
| 10126703 | NJ2304-E | 20.00 | 52.00 | 21.00 | |
| 10126610 | NJ2204-E | 20.00 | 47.00 | 18.00 | |
| 10126793 | NJ305-E | 25.00 | 62.00 | 17.00 | |
| 10126706 | NJ2305-E | 25.00 | 62.00 | 24.00 | |
| 10126613 | NJ2205-E | 25.00 | 52.00 | 18.00 | |
| 10126559 | NJ205-E | 25.00 | 52.00 | 15.00 | |
| 10126562 | NJ206-E | 30.00 | 62.00 | 16.00 | |
| 10126796 | NJ306-E | 30.00 | 72.00 | 19.00 | |
| 10126709 | NJ2306-E | 30.00 | 72.00 | 27.00 | |
| 10126616 | NJ2206-E | 30.00 | 62.00 | 20.00 | |
| 10126799 | NJ307-E | 35.00 | 80.00 | 21.00 | |
| 10126565 | NJ207-E | 35.00 | 72.00 | 17.00 | |
| 10126712 | NJ2307-E | 35.00 | 80.00 | 31.00 | |
| 10126619 | NJ2207-E | 35.00 | 72.00 | 23.00 | |
| 10126622 | NJ2208-E | 40.00 | 80.00 | 23.00 | |
| 10126568 | NJ208-E | 40.00 | 80.00 | 18.00 | |
| 10126715 | NJ2308-E | 40.00 | 90.00 | 33.00 | |
| 10126802 | NJ308-E | 40.00 | 90.00 | 23.00 | |
| 10126571 | NJ209-E | 45.00 | 85.00 | 19.00 | |
| 10126625 | NJ2209-E | 45.00 | 85.00 | 23.00 | |
| 10126718 | NJ2309-E | 45.00 | 100.00 | 36.00 | |
| 10126805 | NJ309-E | 45.00 | 100.00 | 25.00 | |
| 10126631 | NJ2210-E | 50.00 | 90.00 | 23.00 | |
| 10126721 | NJ2310-E | 50.00 | 110.00 | 40.00 | |
| 10126574 | NJ210-E | 50.00 | 90.00 | 20.00 | |
| 10126808 | NJ310-E | 50.00 | 110.00 | 27.00 | |
| 10126634 | NJ2211-E | 55.00 | 100.00 | 25.00 | |
| 10126577 | NJ211-E | 55.00 | 100.00 | 21.00 | |
| 10126724 | NJ2311-E | 55.00 | 120.00 | 43.00 | |
| 10126811 | NJ311-E | 55.00 | 120.00 | 29.00 | |
| 10126637 | NJ2212-E | 60.00 | 110.00 | 28.00 | |
| 10126727 | NJ2312-E | 60.00 | 130.00 | 46.00 | |
| 10126814 | NJ312-E | 60.00 | 130.00 | 31.00 | |
| 10126580 | NJ212-E | 60.00 | 110.00 | 22.00 | |
| 10126817 | NJ313-E | 65.00 | 140.00 | 33.00 | |
| 10126730 | NJ2313-E | 65.00 | 140.00 | 48.00 | |
| 10126640 | NJ2213-E | 65.00 | 120.00 | 31.00 | |
| 10126583 | NJ213-E | 65.00 | 120.00 | 23.00 | |
| 10126733 | NJ2314-E | 70.00 | 150.00 | 51.00 | |
| 10126586 | NJ214-E | 70.00 | 125.00 | 24.00 | |
| 10126643 | NJ2214-E | 70.00 | 125.00 | 31.00 | |
| 10126820 | NJ314-E | 70.00 | 150.00 | 35.00 | |
| 10126646 | NJ2215-E | 75.00 | 130.00 | 31.00 | |
| 10126736 | NJ2315-E | 75.00 | 160.00 | 55.00 | |
| 10126823 | NJ315-E | 75.00 | 160.00 | 37.00 | |
| 10126589 | NJ215-E | 75.00 | 130.00 | 25.00 | |
| 10126649 | NJ2216-E | 80.00 | 140.00 | 33.00 | |
| 10126739 | NJ2316-E | 80.00 | 170.00 | 58.00 | |
| 10126826 | NJ316-E | 80.00 | 170.00 | 39.00 | |
| 10126592 | NJ216-E | 80.00 | 140.00 | 26.00 | |
| 10126829 | NJ317-E | 85.00 | 180.00 | 41.00 | |
| 10126742 | NJ2317-E | 85.00 | 180.00 | 60.00 | |
| 10126652 | NJ2217-E | 85.00 | 150.00 | 36.00 | |
| 10126595 | NJ217-E | 85.00 | 150.00 | 28.00 | |
| 10126832 | NJ318-E | 90.00 | 190.00 | 43.00 | |
| 10126745 | NJ2318-E | 90.00 | 190.00 | 64.00 | |
| 10126655 | NJ2218-E | 90.00 | 160.00 | 40.00 | |
| 10126598 | NJ218-E | 90.00 | 160.00 | 30.00 | |
| 10126748 | NJ2319-E | 95.00 | 200.00 | 67.00 | |
| 10126835 | NJ319-E | 95.00 | 200.00 | 45.00 | |
| 10126658 | NJ2219-E | 95.00 | 170.00 | 43.00 | |
| 10126601 | NJ219-E | 95.00 | 170.00 | 32.00 | |
| 10126838 | NJ320-E | 100.00 | 215.00 | 47.00 | |
| 10126754 | NJ2320-E | 100.00 | 215.00 | 73.00 | |
| 10126664 | NJ2220-E | 100.00 | 180.00 | 46.00 | |
| 10126604 | NJ220-E | 100.00 | 180.00 | 34.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
