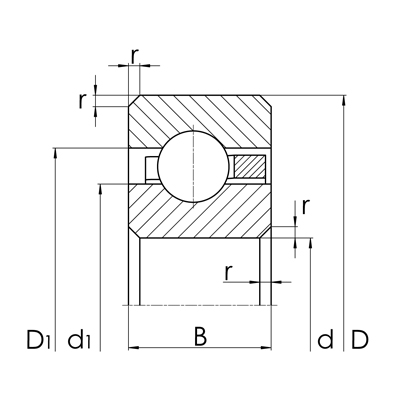

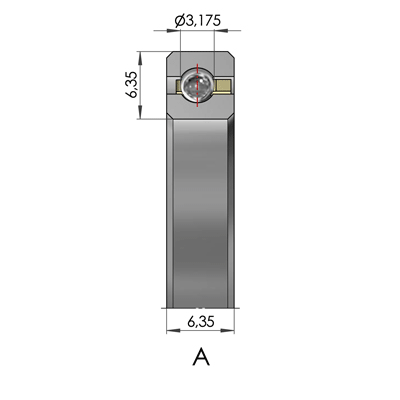

Thin section deep groove ball bearing - CSCA

  • Thin section bearing - CSCA
    Thin section bearing - CSCA
  • Thin section bearing - CSCA
    Thin section bearing - CSCA
    Description Main dimensions Functions
    d D B
    mm mm mm
    SKU Description Main dimensions Functions
    d D B
    mm mm mm
    10147465 CSCA020 50.80 63.50 6.35
    10147466 CSCA025 63.50 76.20 6.35
    10147467 CSCA030 76.20 88.90 6.35
    10147468 CSCA035 88.90 101.60 6.35
    10147469 CSCA040 101.60 114.30 6.35
    10147470 CSCA042 107.95 120.65 6.35
    10147471 CSCA045 114.30 127.00 6.35
    10147472 CSCA047 120.65 133.35 6.35
    10147450 CSCA050 127.00 139.70 6.35
    10147473 CSCA055 139.70 152.40 6.35
    10147474 CSCA060 152.40 165.10 6.35
    10147475 CSCA065 165.10 177.80 6.35
    10147476 CSCA070 177.80 190.50 6.35
    10147477 CSCA075 190.50 203.20 6.35
    10147478 CSCA080 203.20 215.90 6.35
    10147479 CSCA090 228.60 241.30 6.35
    10147480 CSCA100 254.00 266.70 6.35
    10157127 CSCA110 279.40 292.10 6.35
    10147481 CSCA120 304.80 317.50 6.35
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
